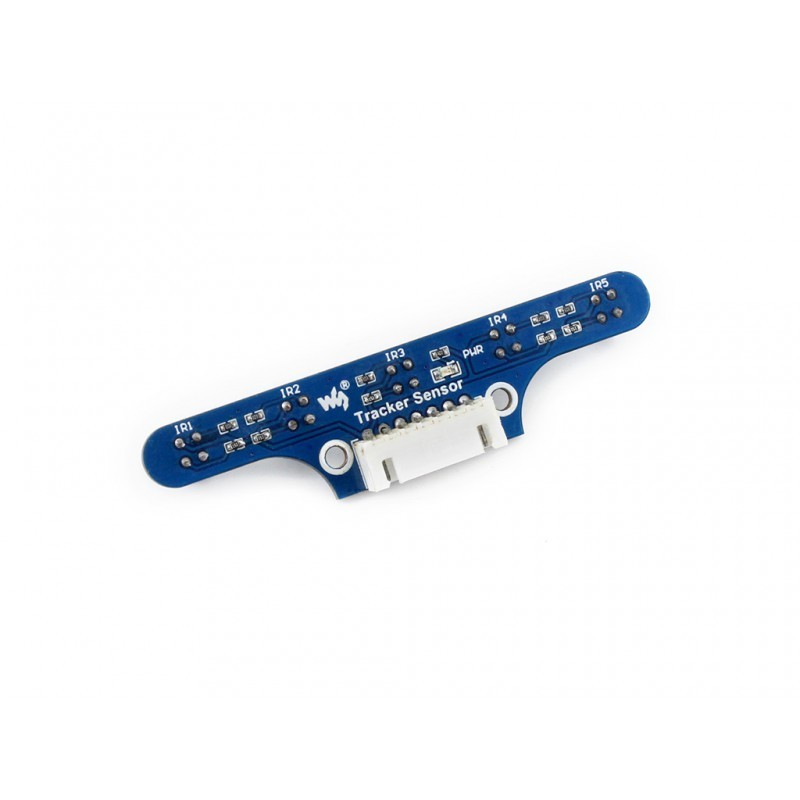

Waveshare Tracker Sensor, Infrared Line Tracking
Regular price
Rs. 519.00
Regular price
Sale price
Rs. 519.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Dispatched in 24 hrsExcept Sundays and public holidays
- GST invoiceInput tax credit for businesses
- ReplacementFor transit damage or wrong item
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
- Brand: Waveshare
- SKU: 12223
- TYPE: Tracker Sensor
Overview
- 5-ch ITR20001/T infrared detector, high sensitivity, anti-jamming, stable performance
- High precision analog output, combined with PID control algorithm, allows the robot tracks lines more stable
Specifications
- Power: 3.3V ~ 5V
- Dimension: 78mm × 18mm
- Detector spacing: 16mm
- Mounting holes size: 3mm
- Detection range: 1cm ~ 5cm
Applications
- Robot line tracking
How to Use
In the case of working with a MCU:
- VCC ↔ 3.3V ~ 5V
- GND ↔ GND
- IR1 ↔ MCU.IO (ch1, analog output)
- IR2 ↔ MCU.IO (ch2, analog output)
- IR3 ↔ MCU.IO (ch3, analog output)
- IR4 ↔ MCU.IO (ch4, analog output)
- IR5 ↔ MCU.IO (ch5, analog output)
Dimensions
Packages Includes:
- Tracker Sensor x 1
- XH2.54 7PIN wire x 1
Weight: 0.007 kg
