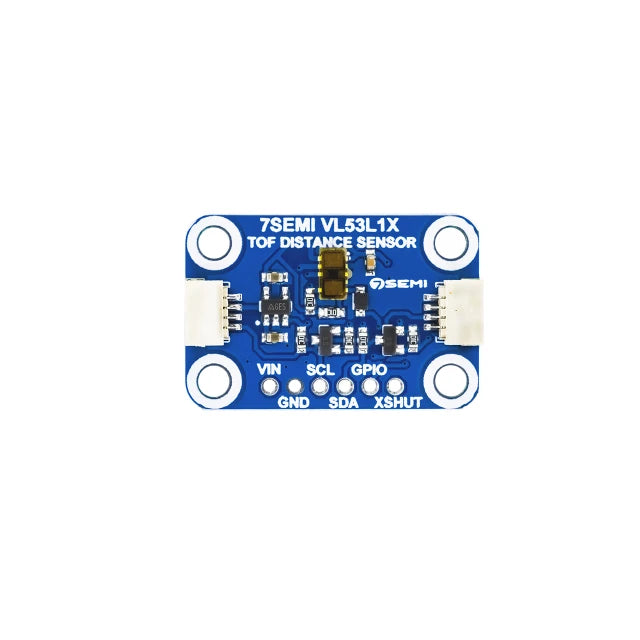

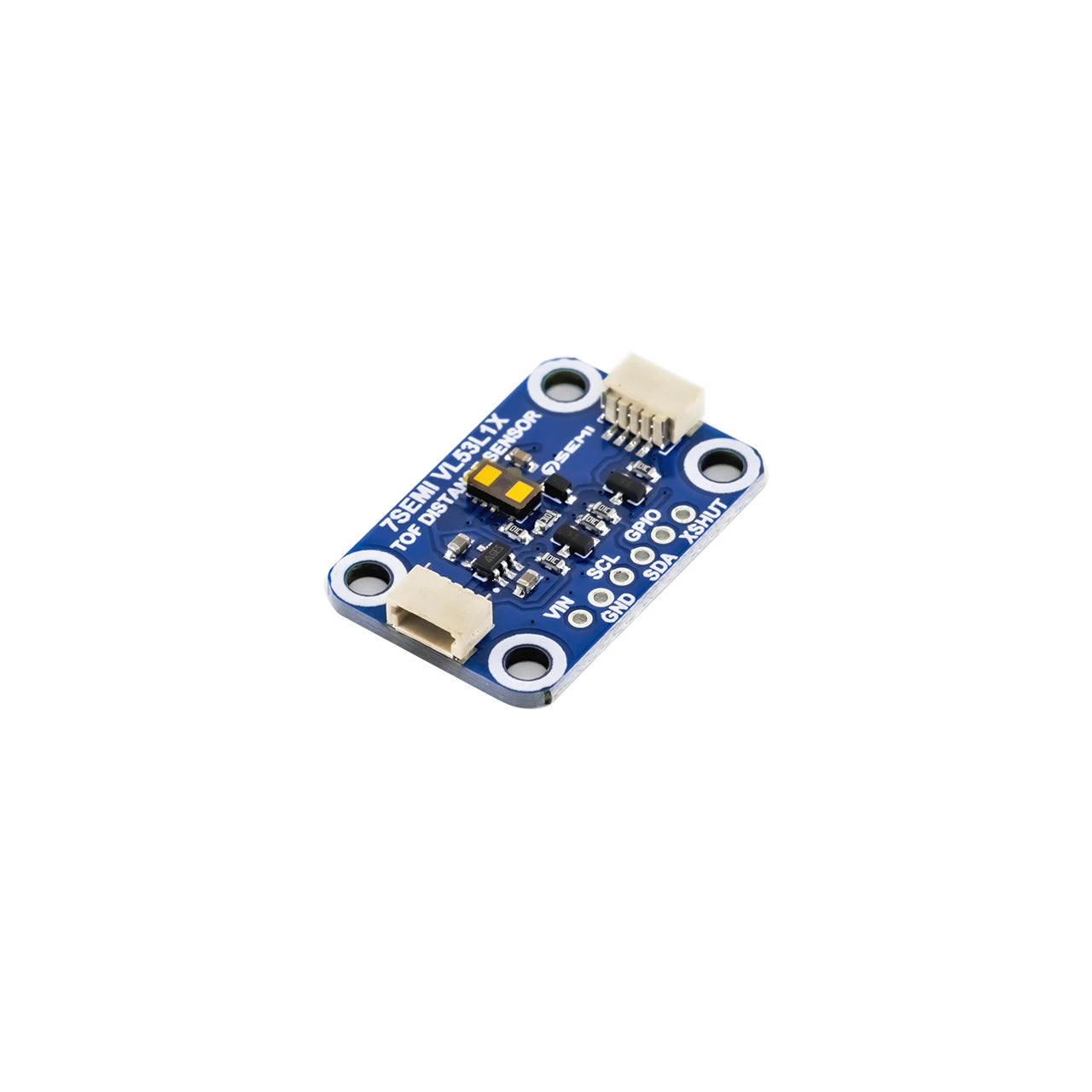

This Semi Distance Sensor Breakout features the cutting-edge VL53L1X ToF (Time of Flight) sensor module, representing the next generation in distance measurement technology. The VL53L1X, a laser-ranging sensor, stands out as the fastest miniature ToF sensor available, boasting accurate ranging capabilities up to 4 meters and a swift ranging frequency of up to 50 Hz. Encased in a compact, reflowable package, it incorporates a SPAD receiving array, a 940 nm invisible Class1 laser emitter, physical infrared filters, and optics to optimize ranging performance across various ambient lighting conditions, offering a range of cover window options. In contrast to traditional IR sensors, the VL53L1X employs ST's latest ToF technology, enabling absolute distance measurement regardless of the target's color and reflectance.

The VL53L1X has a hardware-defined I2C address of 0x29, necessitating a multiplexer/Mux for communication with multiple VL53L1X sensors on a single bus.

This ToF Distance Sensor Breakout, equipped with an I2C communication interface, represents an advanced sensing solution designed for high-precision and reliable distance measurement between objects. The sensor utilizes laser-generated light pulses, calculating the time for reflections to determine distances accurately. Leveraging VL53L1X technology, it achieves a measurement range of up to 4 meters, making it ideal for applications such as robotics, drones, and autonomous vehicles.

The I2C communication interface facilitates seamless communication with other devices, such as microcontrollers or computers, for transmitting distance readings. This feature enables real-time monitoring and data logging of distance measurements, enhancing its applicability across a diverse range of scenarios. The breakout board design ensures easy integration with various systems and devices, compatible with a range of microcontrollers and single-board computers.

The VL53L1X technology utilized in this sensor relies on a highly reliable and accurate time-of-flight ranging approach. Employing a single photon avalanche diode (SPAD) array and a histogram processing engine, the sensor achieves a resolution of 1 mm and a measurement accuracy of +- 5%, ensuring consistently precise and reliable readings.

Empower your projects with precise and reliable distance measurements using the ToF Distance Sensor Breakout. Whether you're engaged in robotics, autonomous vehicle development, or drone construction, this sensor serves as an indispensable tool to help you attain your objectives. Secure yours today and experience the unmatched capabilities of accurate distance measurement with the ToF Distance Sensor Breakout!

Specifications:

• Operating Voltage: 3/5V

• Power Consumption: 20 mW @10Hz

• Measurement Range: ~40mm to 4,000mm

• Resolution: +/-1mm

• Light Source: Class 1 940nm VCSEL

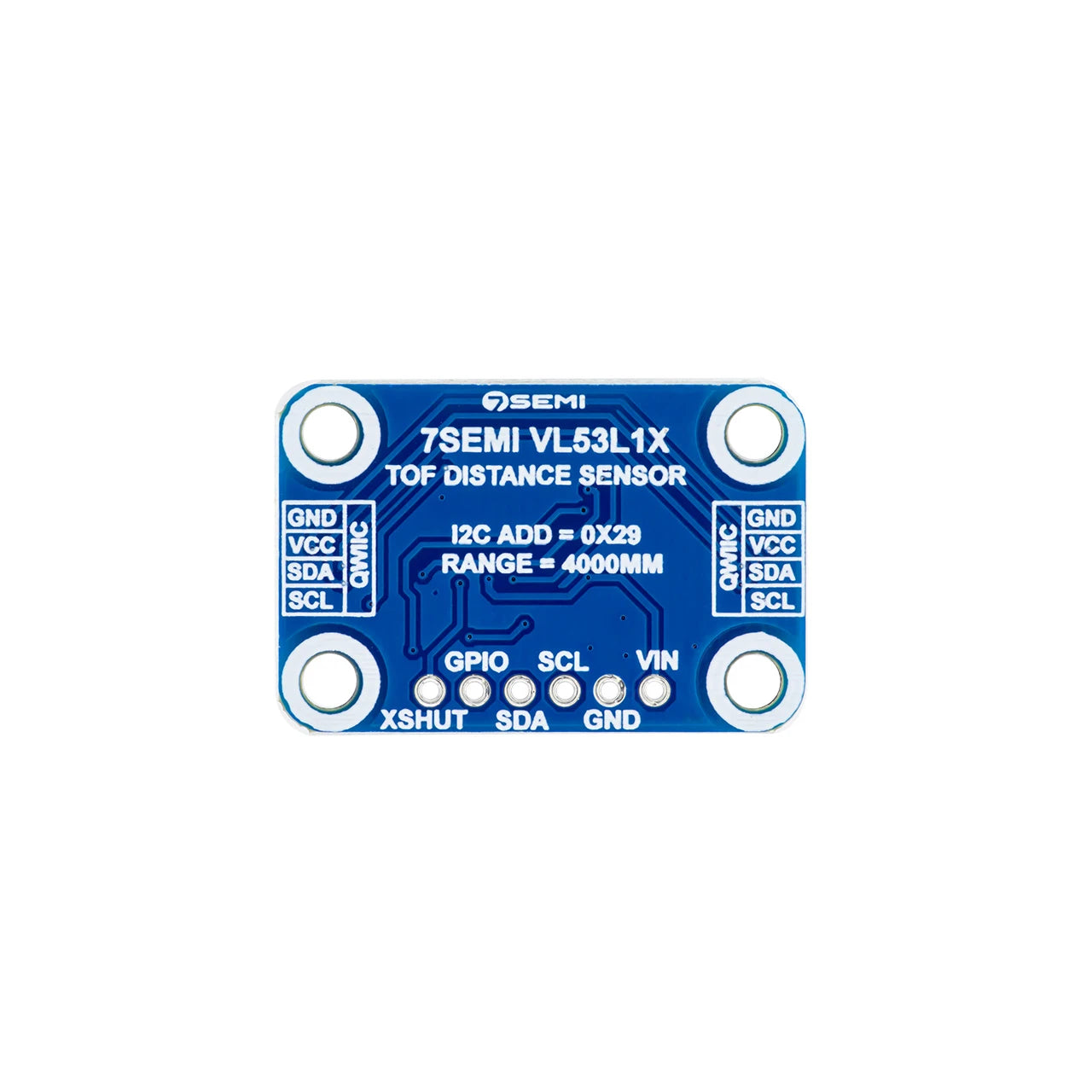

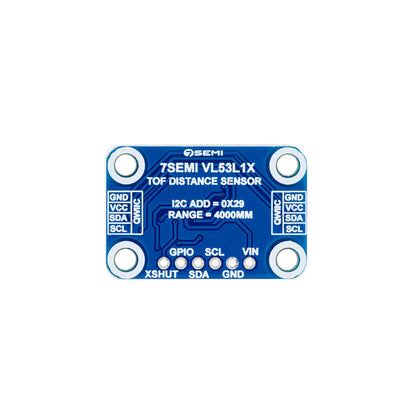

• I2C Address: 0x29

• Field of View: 15~27 degree

• Max Read Rate: 50Hz

Board Dimensions

VL53L1X ToF Distance Sensor Arduino Connection

The ToF (Time of Flight) Distance Sensor Breakout is a highly advanced sensing device designed to measure the distance between objects with high precision. It uses laser pulses to calculate the distance and provides highly accurate results, making it an ideal choice for applications such as robotics, automation, and navigation. The breakout board design makes it easy to integrate with other systems and devices, and it can be used with a variety of microcontrollers and single-board computers. With its compact size, low power consumption, and high accuracy, the ToF Distance Sensor Breakout is a powerful tool for a range of applications where precise distance measurement is critical.
