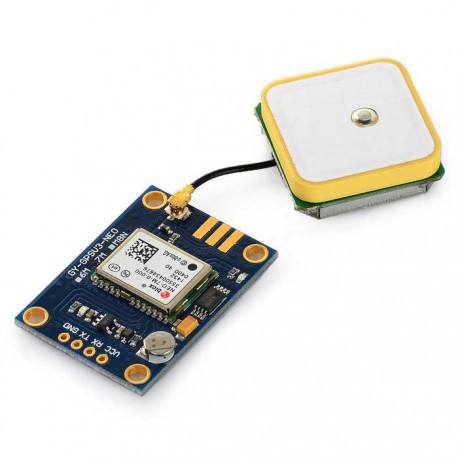

Ublox NEO 7M GPS Module
Ublox NEO 7M GPS Module
Regular price
Rs. 549.00
Regular price
Sale price
Rs. 549.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Position can be updated every 12 seconds . Cold start time of 38 s and Hot Start Time of 1 s
- Baud Rate: 4800 to 115200 (Default: 9600)
- SuperSense Indoor GPS: -162 dBm tracking sensitivity
- Supports SBAS (WAAS, EGNOS, MSAS, GAGAN)
- Comes with GPS Antenna (18 x 18 mm)
- Standalone GPS receiver
- Anti-Jamming technology
- UART Interface at the output pins (Can use SPI ,12C and USB by soldering pins to the chip core)
- Under 1 second time-to-first-fix for hot and alded starts
- Receiver type: 50 Channels – GPS L1 frequency SBAS (WAAS, EGNOS, MSAS, GAGAN)
- Time-To-First-fix: For Cold Start 32s, For Warm Start 23s, For Hot Start <1s
- Maximum navigation update rate: 5Hz Default baud rate: 9600bps
- EEPROM with battery backup
- Sensitivity: -160dBm)
- Supply voltage: 3.6V
- Maximum DC current at any output: 10mA
- Operation limits: Gravity-4g. Altitude-50000m. Velocity-500m/s Operating temperature range: -40 °C TO 85°C
The NEO-7 series provides maximum sensitivity while maintaining low system power. The NEO-7M is optimized for cost sensitive applications, while NEO-7N provides best performance and easier RF integration. The industry proven NEO form factor allows easy migration from previous NEO generations . Sophisticated RF-architecture and interference suppression ensure maximum performance even in GPS-hostile environments
