-47%

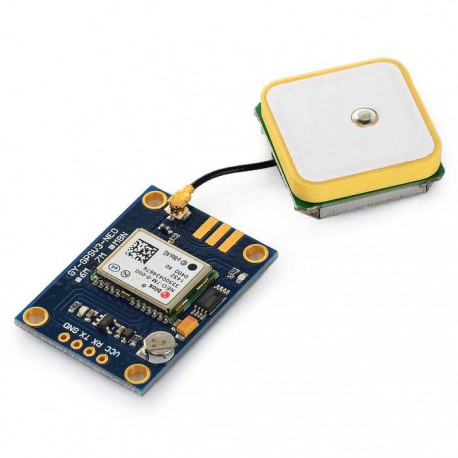

Ublox NEO 7M GPS Module
Rs. 769.00
Rs. 1,450.00
All Prices Incuding GST
No Hidden Charge
Local Pickup
Estimated time to pack : 15 Mins.
Fast Delivery
Same Day Dispatch.
Bulk Purchase
Get Attractive Discount on Bulk
- Position can be updated every 12 seconds . Cold start time of 38 s and Hot Start Time of 1 s
- Baud Rate: 4800 to 115200 (Default: 9600)
- SuperSense Indoor GPS: -162 dBm tracking sensitivity
- Supports SBAS (WAAS, EGNOS, MSAS, GAGAN)
- Comes with GPS Antenna (18 x 18 mm)
- Standalone GPS receiver
- Anti-Jamming technology
- UART Interface at the output pins (Can use SPI ,12C and USB by soldering pins to the chip core)
- Under 1 second time-to-first-fix for hot and alded starts
- Receiver type: 50 Channels – GPS L1 frequency SBAS (WAAS, EGNOS, MSAS, GAGAN)
- Time-To-First-fix: For Cold Start 32s, For Warm Start 23s, For Hot Start <1s
- Maximum navigation update rate: 5Hz Default baud rate: 9600bps
- EEPROM with battery backup
- Sensitivity: -160dBm)
- Supply voltage: 3.6V
- Maximum DC current at any output: 10mA
- Operation limits: Gravity-4g. Altitude-50000m. Velocity-500m/s Operating temperature range: -40 °C TO 85°C
The NEO-7 series provides maximum sensitivity while maintaining low system power. The NEO-7M is optimized for cost sensitive applications, while NEO-7N provides best performance and easier RF integration. The industry proven NEO form factor allows easy migration from previous NEO generations . Sophisticated RF-architecture and interference suppression ensure maximum performance even in GPS-hostile environments
