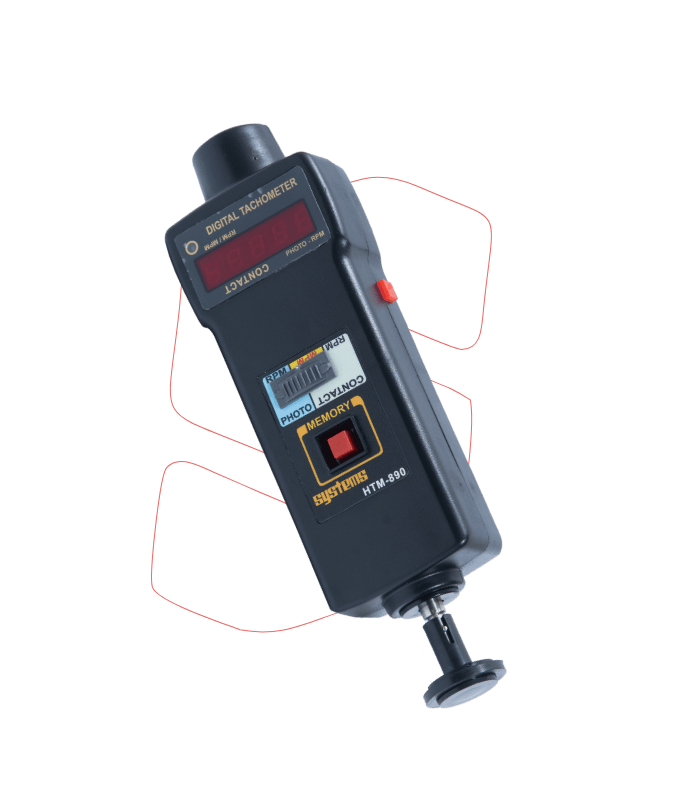

Model Number – HTM 890
It typically consists of a display unit, a light source, a photo sensor, and a rotating object or wheel. The HTM 890 Photo Contact Digital Tachometer is a highly accurate and reliable instrument designed for measuring rotational speed in mechanical and industrial applications. This tachometer features a large, easy-to-read LED display and a wide range of selectable measurement units. The HTM 890 also features a self-calibrating system that helps to ensure accurate measurements and a wide range of digital output options, including a serial port and a USB port. This tachometer is suitable for monitoring a variety of rotating machinery such as motors, pumps, compressors, blowers, and fans. It is also capable of storing up to 99 readings for comparison and troubleshooting purposes.
Key Features
Used in industrial applications to monitor the performance of motors.
- Full Digital, Micro Controller LSI circuit design for high reliability and versatility
- Comes with a sturdy, easy to carry/handle carrying case box with foam padding for potection against impact.
- Ergonomically designed for handheld based operations for risk free RPM measurement at all times.
- Excellent Quality, compact size and accurate reading.
- Economic and effective Battery power utilization
Technical Specifications
Ranges | 60 RPM – 50,000 RPM (contact side) 6 m/min – 5000 m/min (surface speed) 60 RPM – 1,00,000 RPM (photo side) |
Resolution | 0.1 RPM: 0 – 1000 RPM | 1 RPM: > 1000 RPM 0.01 : 0 – 100 meter/min | 0.1 : > 100 meter/min |
Display Type | 5 DIGITS 10mm(0.38”) height RED LED |
Accuracy | + 0.05% + 1 Digit |
Sampling Rate | 1 second |
Time Base | Quartz Crystal Controlled |
Measuring Distance | 75mm (3 inch) to 300mm (12 inch) (Photo side) |
Low Battery | Indicated by “Lobat” when the battery voltage drops below operating voltage |
Memory Recall | ‘Last’, ‘Max’, ‘Min’ Values memorized automatically, upto 120sec can be recalled |

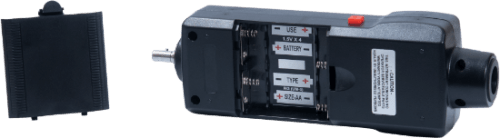

Power Source | 4 X 1.5V AA Battery. Auto Shut off feature included |
Battery Life | 90hrs for alkaline batteries (contact side) 30hrs for Carbon-Zinc batteries (contact side) 24hrs for alkaline batteries (Photo side) 12hrs for Carbon-Zinc batteries (Photo side) |
Operating Temperature | 0° Celsius to 60° Celsius (32° F to 140° F ) |
Size | 70 x 200 x 40mm (2.8 x 7.8 x 1.6 inch) |
Weight | 320grams including battery |

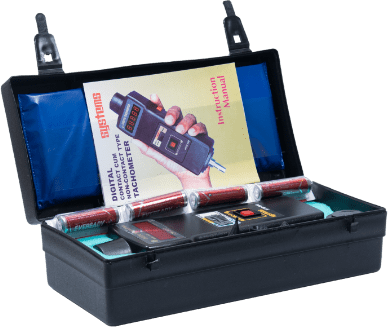

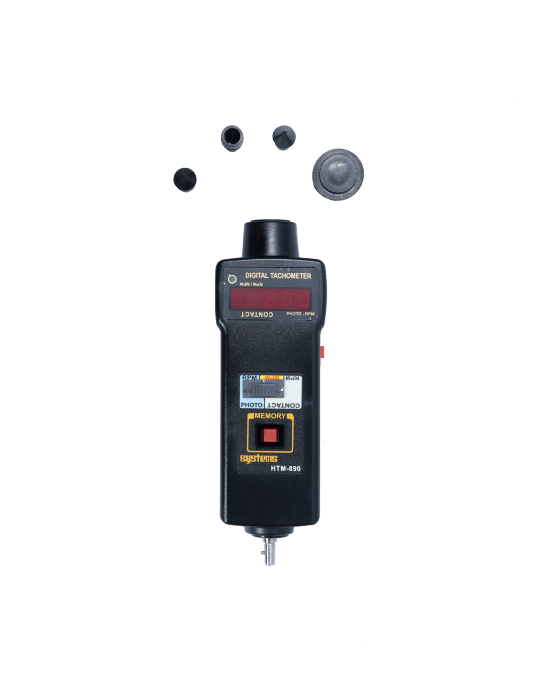

Standard Accessories | Male rubber contact tip– 2nos Female rubber contact tip– 2nos Peripheral rubber contact tip– 1nos Reflective tape (Marks) 1000x12mm(40×0.5 inch)–1nos Padded Carrying Case–1nos User Manual– 1nos |
