• Small and lightweight, convenient for use.

• Designed specifically for power generation.

• High-temperature 120°C, with NM static protection.

• Operating Temperature: 0-150°C

• Maximum Temperature: 150°C
• Open Circuit Voltage: 4.8V

This magical cells based on the Peltier effect are capable of generating electric power. The SP1848-27145 40x40mm Thermoelectric Power Generator TEG 150°C Peltier Module operates maximum up to 150°C which will give you different voltage and current outputs at different values of temperature.

Operating Tips:

• Do not exceed the maximum operating temperature of the module.

• Life expectancy: 200,000 hours.

• Failure rate based on longtime testings: 0.2%.

Important Note!!

1. MODEL NUMBER SIDE IS EXPOSED TO “HEAT-SINK or ICE” AND OPPOSITE SIDE TO “HEAT“.

1. Place 2-3 drops of grease compound on both sides of TEG Module

Features :

• Small and lightweight, convenient for use.

• Designed specifically for power generation.

• Sealed for moisture protection and contain thermal elements formulated for optimum Seebeck power generation.

• High-temperature 150°C, with NM static protection.

• Quality tested cooling cells.

• Simple to install and operate.

• with 5v Booster board you can charge the cell phone

Package Includes :

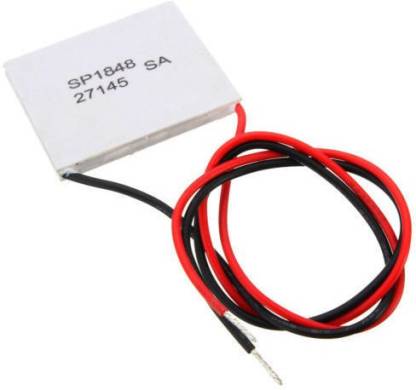

1 x SP1848-27145 40x40mm Thermoelectric Power Generator TEG 150°C Peltier Module
