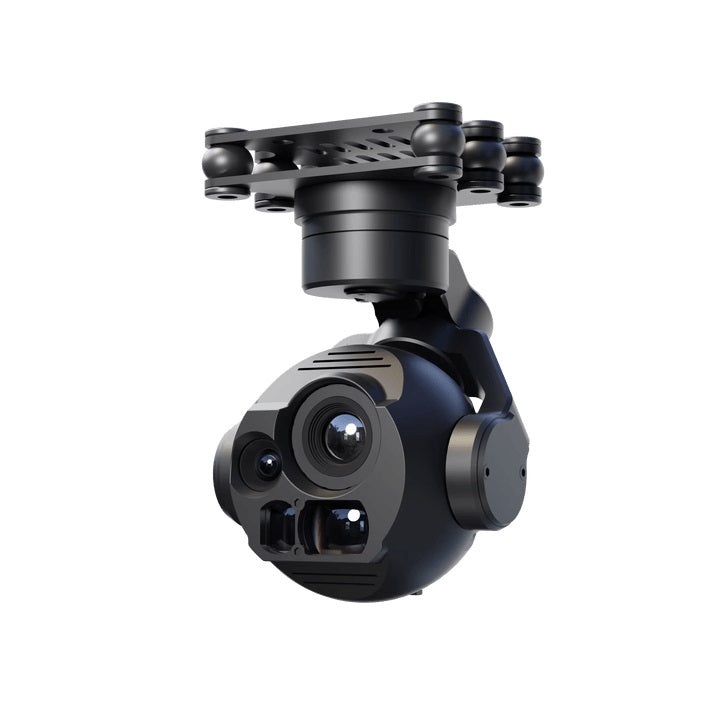

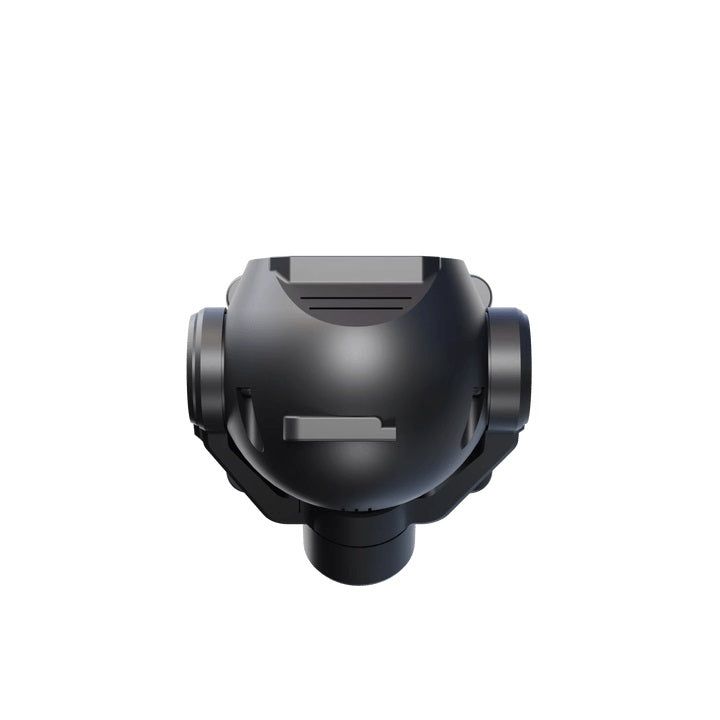

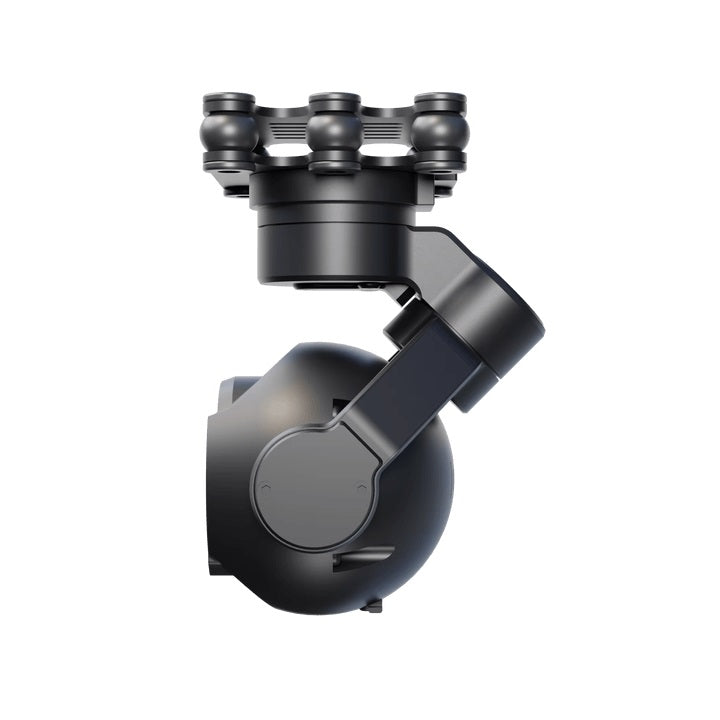

The Skydroid C13 is an industrial-grade three-axis "three-light" gimbal payload that packs a 5MP visible-light camera, a 640×512 thermal imager and a 1 km laser rangefinder into one compact 176 g unit. With AI target tracking and 30x zoom, it is built for inspection, surveillance, search and rescue, mapping and security drones.

Key features

• Triple-sensor payload: visible camera, thermal camera and laser rangefinder in a single gimbal.
• 5MP 2K HD visible camera with 30x digital zoom for long-distance detail.
• 640×512 thermal imaging (8–14 μm, 9.1 mm lens) for heat detection day or night.
• Laser rangefinder measures 5 m to 1000 m with ±1 m accuracy.
• AI tracking: real-time target detection, locking and tracking during flight.
• 3-axis stabilisation for smooth, jitter-free video.
• One-key centring and gesture control; upright or inverted mounting.
• Wide 7.2–72 V input, so it runs directly from most drone power systems.
• Works with Skydroid ground control and remote systems, including AI guidance with the Skydroid S series.

Specifications

• Brand: Skydroid
• Model: C13
• Gimbal Type: 3-Axis Stabilised
• Visible Camera: 5MP, 2K HD, 30x digital zoom
• Thermal Camera: 640 × 512, 8–14 μm, 9.1 mm lens
• Laser Rangefinder: 905 nm, 5 m – 1000 m, ±1 m accuracy
• AI Tracking: Supported
• Video Output / Control: Ethernet (network port)
• Operating Voltage: 7.2 V – 72 V
• Operating Current: 334 mA @ 12 V
• Pitch Range: −90° to +10°
• Yaw Range: −90° to +90°
• Roll Range: −45° to +45°
• Mounting: Upright / Inverted
• Storage: MicroSD, up to 128 GB
• Weight: 176 g
• Dimensions: 59 × 61 × 92 mm
• Operating Temperature: −10 °C to +50 °C

Applications

Power line and solar panel inspection, surveillance and security, search and rescue, firefighting support, wildlife monitoring, surveying and industrial UAV operations.

In the Box

- Skydroid C13 Triple Sensor 3-Axis Gimbal Camera × 1
