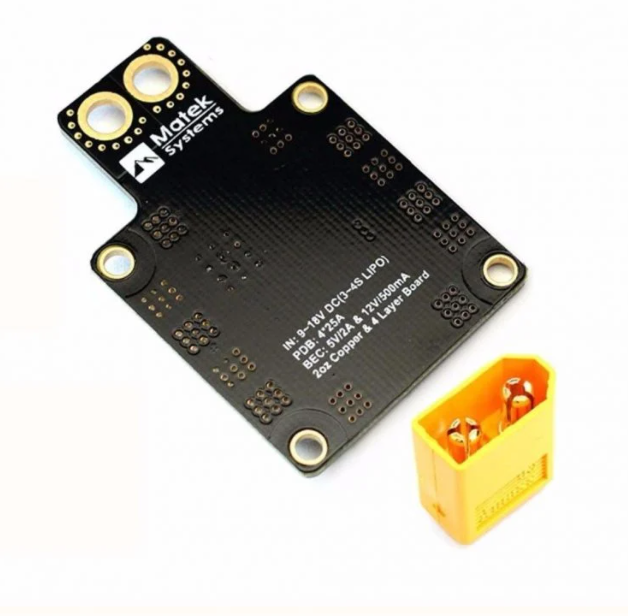

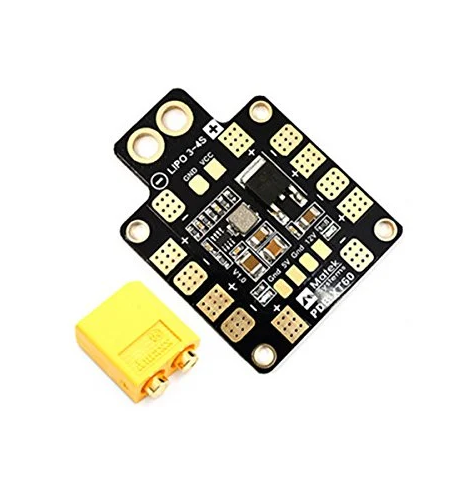

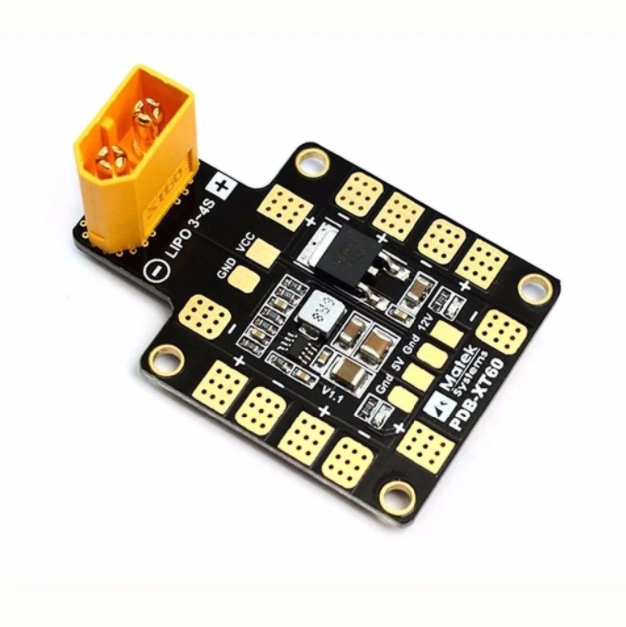

Matek Systems PDB-XT60 with BEC 5V and 12V Power Distribution Board
Matek Systems PDB-XT60 with BEC 5V and 12V Power Distribution Board
Regular price
Rs. 349.00
Regular price
Sale price
Rs. 349.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
- 4-layers and 1.6mm PCB
- Built-in XT60 Socket
- Total 6 pairs ESC solder tabs are fit for H or X type frame
- Regulated 5V and 12V outputs
- Short circuit tolerantInput voltage range: 9 – 18V DC (3S-4S LiPoly operation)
- Output continuous current: 25Ax4 or 15Ax6
- Output Peak current (10 seconds/minute): 30Ax4 or 20Ax6
- Short-circuit tolerant: 5 seconds/minute
The PDB-XT60 has been engineered to provide the highest possible performance and reliability in a 36*50mm & 4 layers PCB.
It distributes power from a LiPo pack to 6 ESCs, as well as providing synchronized & regulated DC 5V outputs & linear regulated
DC 12V for powering Cameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc.
Note:
Since this is an Open Source Power Distribution Board, there are many manufacturers who are supplying this product. We have picked up the best quality products from the market and tested them for their functionality. And finally selected best amongst them. Our product works exactly same as we have described above in the description.
