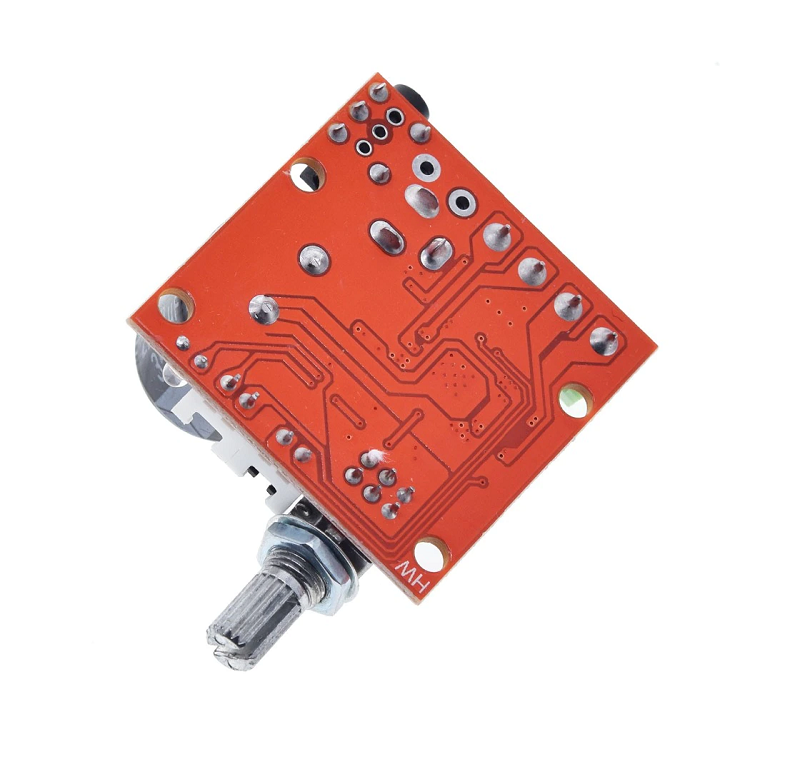

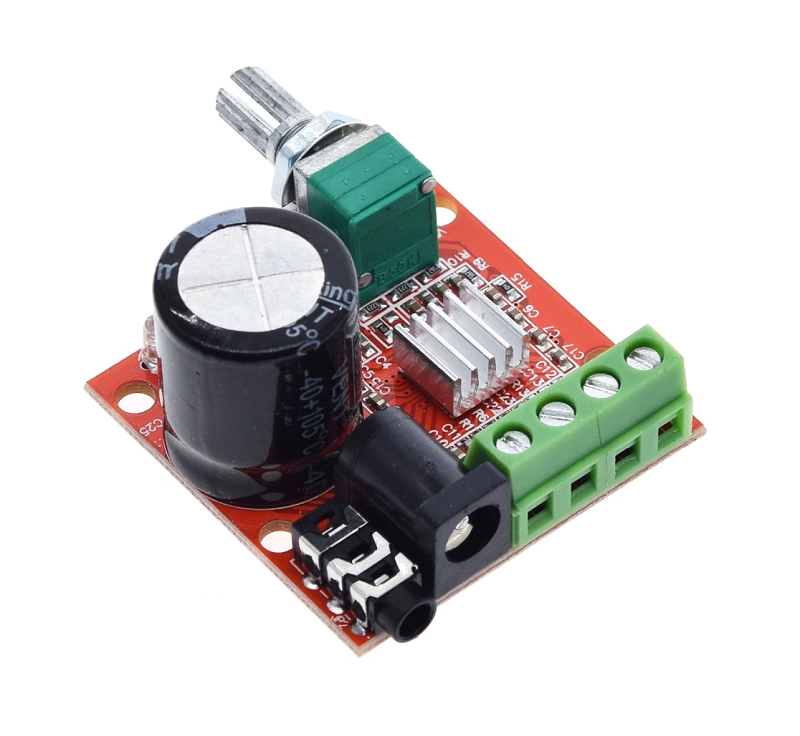

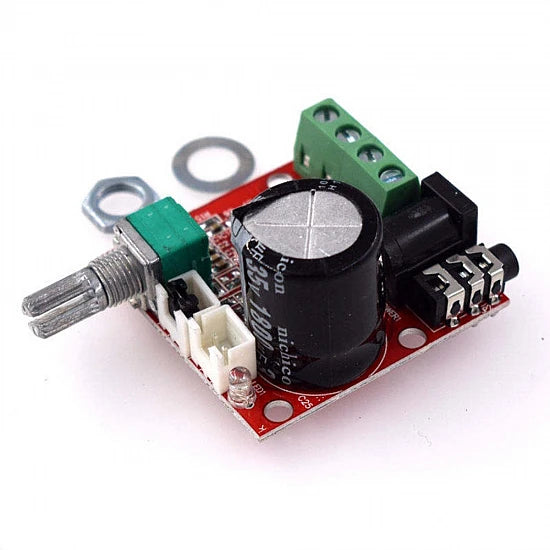

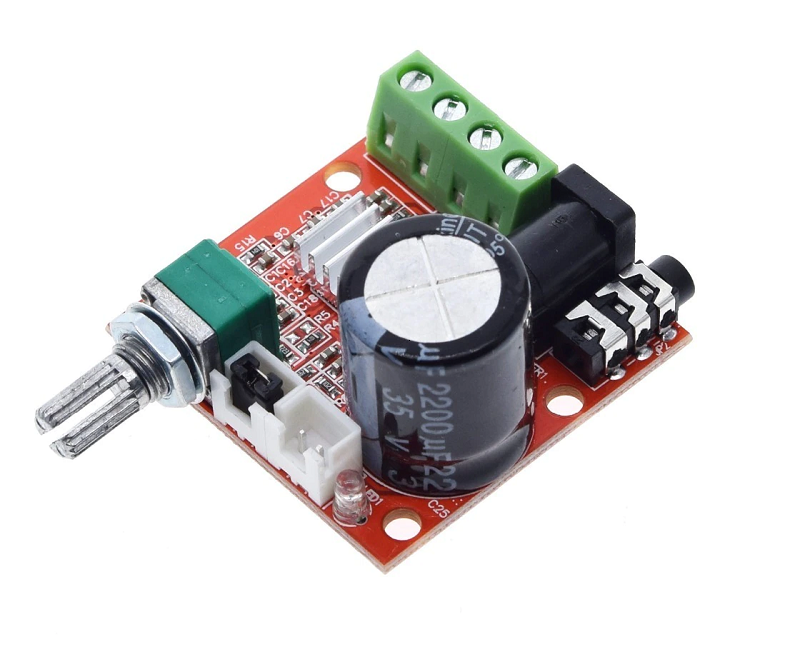

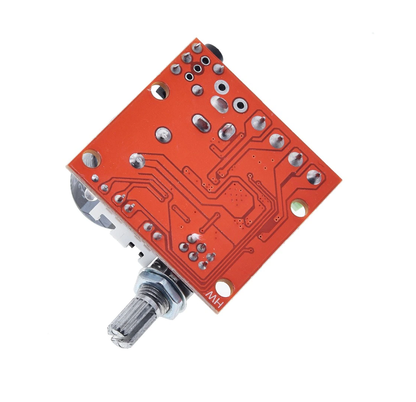

PAM8610 12V 2x10W Dual Channel D Class Audio Stereo Amplifier Board
PAM8610 12V 2x10W Dual Channel D Class Audio Stereo Amplifier Board
Couldn't load pickup availability
The power amplifier circuit board was designed using the official standard, the chip uses a selection of US imports original Longding micro Class D amplifier chip. Good product chip is necessary and for the majority of music lovers to share, this is our consistent philosophy! The amplifier with ultra-high efficiency, large power, in the case of 12V power supply can output 10W + 10W of power, the chip without fins, but also with overheating, over-current protection function, the function can be said to be very powerful.
The amplifier board is still difficult to drive two 15W speakers, high-efficiency Class D amplifier board pure is not blown out, the most suitable for small rooms listening to music use. Featured by Sharvi Electronics You need to use a large heat sink when using Spike TDA2030 amplifier chipboard, TDA2030 (15W + 15W) This traditional 15W amplifier board to drive two speakers, and high-efficiency Class D PAM8410 pure amplifier board need only drive two 15W speakers Use a small heat sink, high-efficiency superpower, the sound quality is great.
Features/Specfications:
- Model: PAM 8610
- Power Interface: 5.5 socket
- Input Voltage: 7~15V
- Quiescent current: 20mA
- Efficiency: 90%
- Rated output power: 10W +10W
- Frequency response: 20Hz to 50KHz
- Working Mode: Class D (PWM modulation type)
- This plate with a switching function, SW short, will turn off the power amplifier
- Working Mode: Class D (PWM modulation type)
- Length: 40.5mm
- Width: 40mm
- Height: 23.5mm
- Weight: 5gm
Applications:
- LCD Monitors /TV Projectors
- Notebook Computers
- Portable Speakers
- Portable DVD Players, Game Machines
- Cellular Phones/Speaker Phones
