Oscilloscope Probes (DSO PROBE) 1X & 10X HP-3060 60MHZ
Oscilloscope Probes (DSO PROBE) 1X & 10X HP-3060 60MHZ
Regular price
Rs. 999.00
Regular price
Sale price
Rs. 999.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Specification :
- Attenuation ratio 10:1
- Bandwidth : DC to 60 Mhz
- Rise Time : 5.8nS
- Input Resistance : Approx. 18pF
- Compensation range : 10 to 30pF
- Max. Input Voltage : 600V CAT 1, 300V CAT 2(DC+ Peak AC) derating with frequency
- Operating temperature : 0 - 50 Degree Celsius
- Humidity : 85% RH or less (at 35 C)
- Cable Length : 1.2 Meter
The HP-3060 is a passive high impedance oscilloscope probe designed and calibrated to use the instruments having an input impedance of 1 M ohm shunted by 20pf. However it may be compensated to use the instruments having an input capacitance of 10 to 30pf.

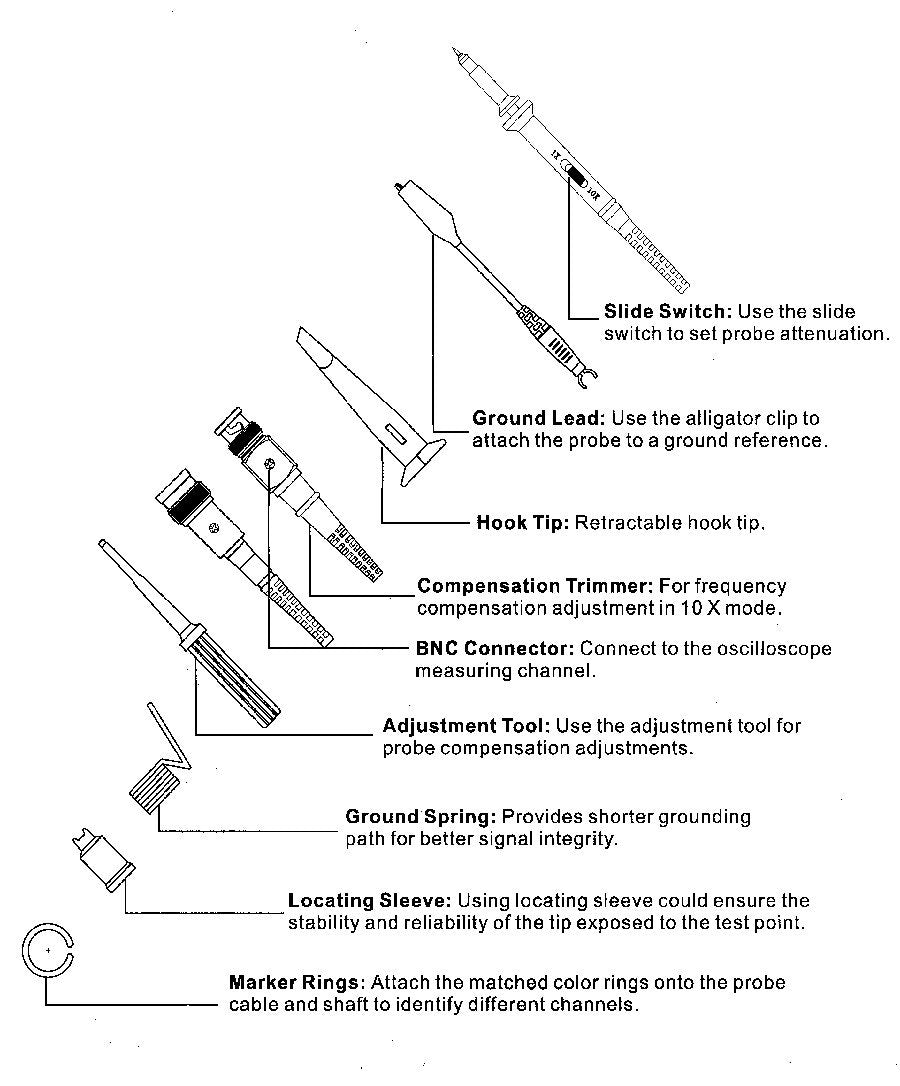

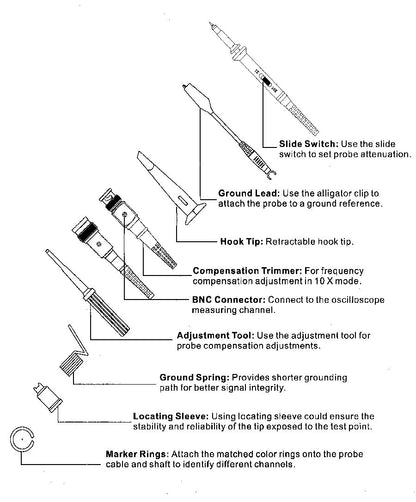

The probe incorporated a two position slide switch in the head which selects attenuation of x1, x10 position.
