Official Raspberry Pi Camera Module 3
Rs. 2,999.00
Rs. 4,000.00
All Prices Incuding GST
Save upto 28% in Input Credit
Order Through WhatsApp
+91-8249931161
Fast Delivery
Same Day Dispatch.
Bulk Purchase
Get Attractive Discount on Bulk

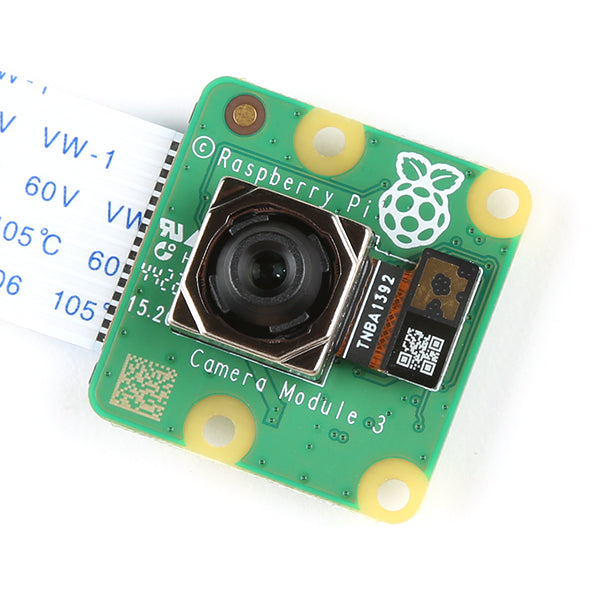

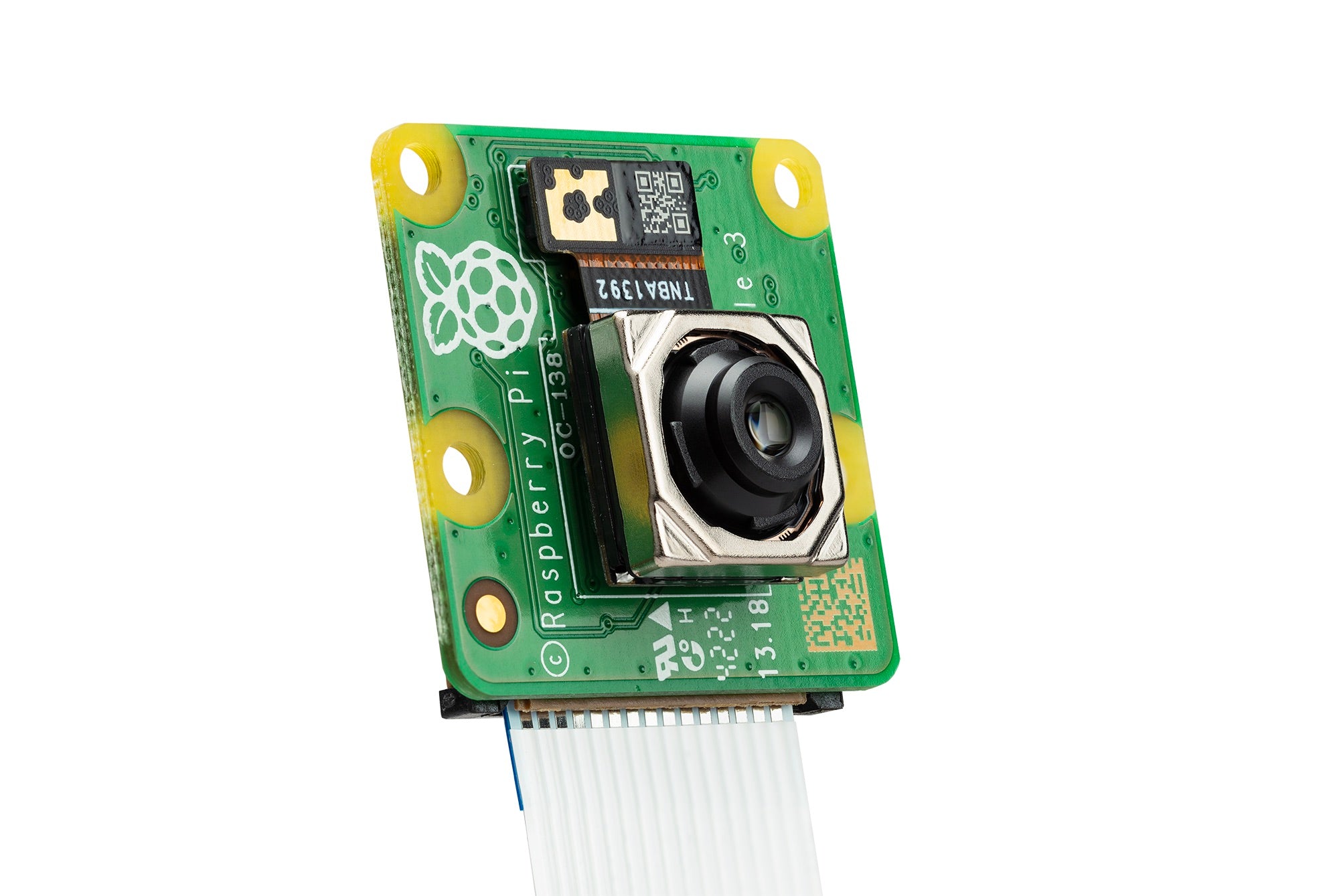

The classic compact camera for Raspberry Pi with a 12MP sensor and autofocus
-
Quality of (still) life
Camera Module 3 comes with an improved 12MP IMX708 Quad Bayer sensor and features a High Dynamic Range mode, making it the highest quality Camera Module we’ve made so far. -
Focus on the good
Camera Module 3 features ultra-fast auto focus as standard. A rich library of software commands means you can have total control over what you focus on and how you do it. -
Look from a different perspective

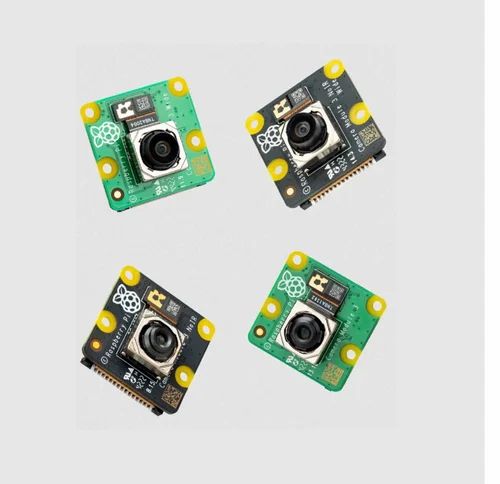

Need a wider field of view than the standard 75 degrees? Camera Module 3 Wide features an ultra-wide 120 degree angle of view, meaning your Raspberry Pi can see more of the world. -
See things differently
Both the standard and wide cameras come with the option of having no IR filter, turning the Camera Module 3 into a night-vision camera when used with infrared lighting.
Specification
- Back-illuminated, stacked CMOS 12-megapixel Sony IMX708 image sensor
- High signal-to-noise ratio (SNR)
- Built-in 2D Dynamic Defect Pixel Correction (DPC)
- Phase Detection Autofocus (PDAF) for rapid autofocus
- QBC Re-mosaic function
- HDR mode (up to 3 megapixel output)
- CSI-2 serial data output
- 2-wire serial communication (supports I2C fast mode and fast mode plus)
- 2-wire serial control of focus mechanism
- Resolution: 11.9 megapixels
- Sensor size: 7.4mm sensor diagonal
- Pixel size: 1.4μm × 1.4μm
- Horizontal/vertical: 4608 × 2592 pixels
- Diagonal field of view: 75 degrees
- Common video modes: 1080p50, 720p100, 480p120
- Output: RAW10
- IR cut filter: Integrated in standard variants; not present in NoIR variants
- Dimensions: 25 × 24 × 11.5mm (12.4mm height for Wide variants)
- Ribbon cable length: 200mm
- Cable connector: 15 × 1mm FPC
