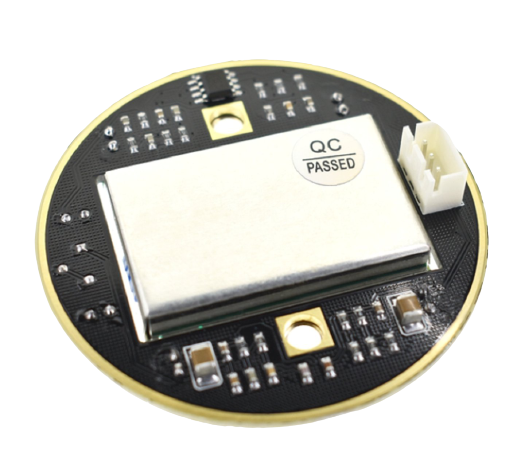

MH-100X HB-100 10.525GHz Microwave Sensor Analog 2-16 Meters Doppler Radar Human Body Induction Switch Module

Rs. 819.00
Rs. 819.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Dispatched in 24 hrsExcept Sundays and public holidays
  • GST invoiceInput tax credit for businesses
  • ReplacementFor transit damage or wrong item
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI Mastercard VISA
SSL Encrypted
256-bit Encryption
  • Operating voltage: 5V
  • Range: 2 - 16 meters
  • Onboard dower LED
  • Onboard detection LED
  • Arduino Compatible
Features:
This detection method has the following advantages over others detection method:
  • Contact less detection
  • Does not affect temperature, humidity, noise, air flow, dust, light, etc., suitable for harsh conditions
  • Protection against radio frequency interference
  • The output power is small, does not harm the body structure
  • Detection distance
  • Support for the detection of non-living objects
  • The direction of the microwave oven is very good, the speed is equal to the speed of light
Specifications:
  • Operating voltage: 5V
  • Operating current (CW): 50mA max., 30mA typical
  • Size: R = 30.6 mm
  • Detection distance: used with adapter plate or control circuit below, 2-16 m continuously adjustable (minimum 2 m, maximum 16 m)
  • Helium Frequency: 10.525 GHz
  • Frequency setting accuracy: 3 MHz
  • Output Power (Minimum): 13dBm EIRP
  • Harmonic emission: <-10 dBm
  • Average current (5% DC): 2 mA typ.
  • Pulse Width (min.): 5 uSec
  • Duty Cycle (min.): 1%
  • Sensitivity (10 dB S / N factor) 3 Hz to 80 Hz bandwidth: -86dBm
  • 10.3 Hz to 80 Hz 10uV bandwidth
  • Antenna Gain: 8dBi
  • Vertical Beam Width 3 dB: 36 degrees
  • Water Level 3 dB Beam Width: 72 degrees
Note:- The sensor has a continuous adjustable range of 2-16 m, the potentiometer is adjustable along the minimum direction, the detection distance is reduced and the potentiometer is adjusted against the direction of the mines, and the detection distance increases.
