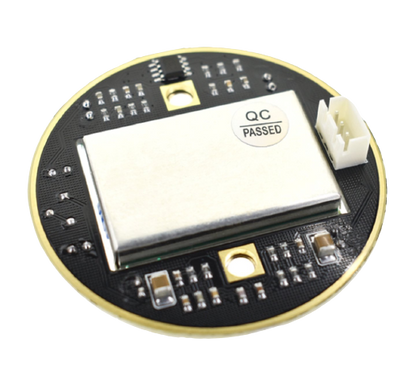

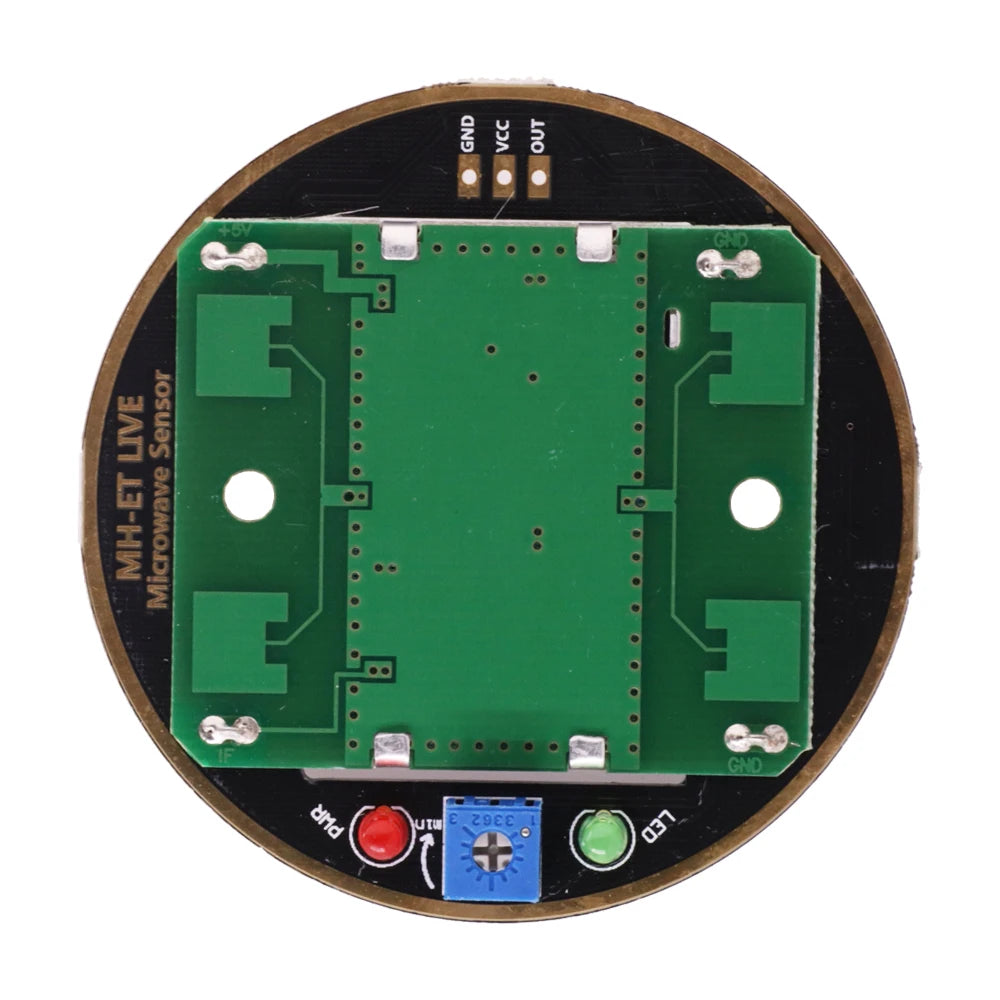

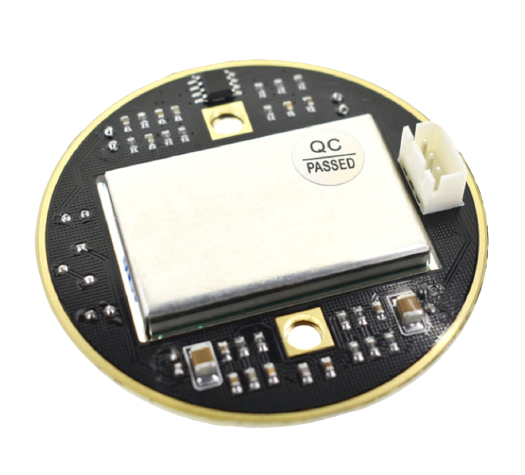

MH-100X HB-100 10.525GHz Microwave Sensor Analog 2-16 Meters Doppler Radar Human Body Induction Switch Module
MH-100X HB-100 10.525GHz Microwave Sensor Analog 2-16 Meters Doppler Radar Human Body Induction Switch Module
Regular price
Rs. 819.00
Regular price
Sale price
Rs. 819.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
- Operating voltage: 5V
- Range: 2 - 16 meters
- Onboard dower LED
- Onboard detection LED
- Arduino Compatible
Features:
This detection method has the following advantages over others detection method:
- Contact less detection
- Does not affect temperature, humidity, noise, air flow, dust, light, etc., suitable for harsh conditions
- Protection against radio frequency interference
- The output power is small, does not harm the body structure
- Detection distance
- Support for the detection of non-living objects
- The direction of the microwave oven is very good, the speed is equal to the speed of light
Specifications:
- Operating voltage: 5V
- Operating current (CW): 50mA max., 30mA typical
- Size: R = 30.6 mm
- Detection distance: used with adapter plate or control circuit below, 2-16 m continuously adjustable (minimum 2 m, maximum 16 m)
- Helium Frequency: 10.525 GHz
- Frequency setting accuracy: 3 MHz
- Output Power (Minimum): 13dBm EIRP
- Harmonic emission: <-10 dBm
- Average current (5% DC): 2 mA typ.
- Pulse Width (min.): 5 uSec
- Duty Cycle (min.): 1%
- Sensitivity (10 dB S / N factor) 3 Hz to 80 Hz bandwidth: -86dBm
- 10.3 Hz to 80 Hz 10uV bandwidth
- Antenna Gain: 8dBi
- Vertical Beam Width 3 dB: 36 degrees
- Water Level 3 dB Beam Width: 72 degrees
Note:- The sensor has a continuous adjustable range of 2-16 m, the potentiometer is adjustable along the minimum direction, the detection distance is reduced and the potentiometer is adjusted against the direction of the mines, and the detection distance increases.
