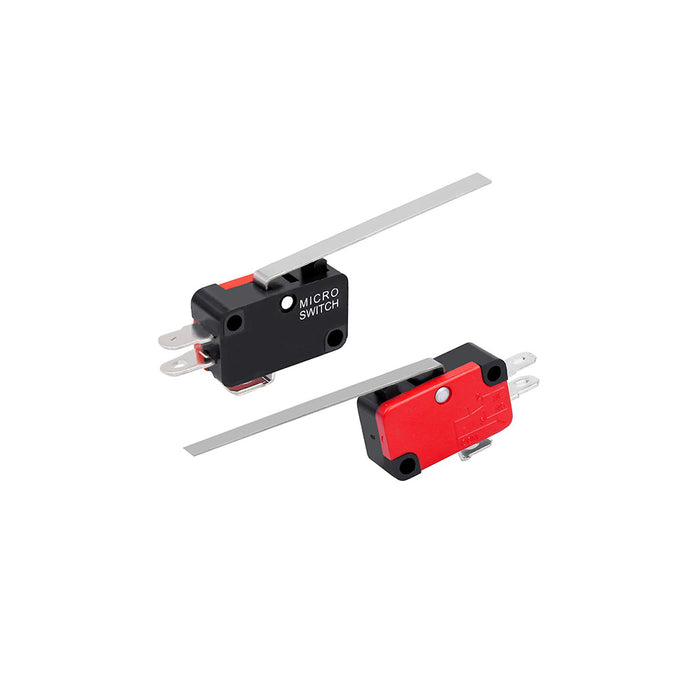

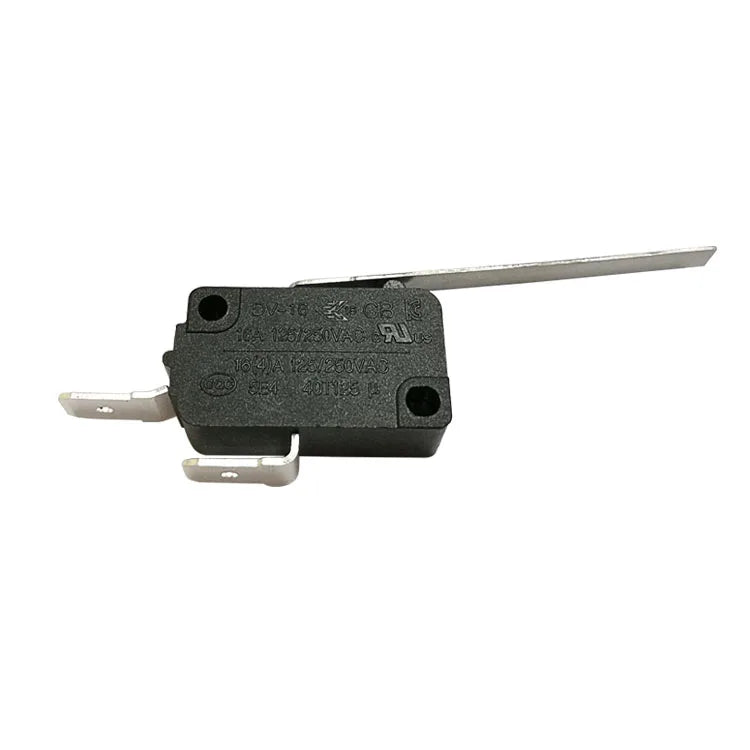

LONG LEVER MICRO LIMIT SWITCH Sensitive Operation (1 Pc)

Features:

- Made of high quality materials, durable
- 3 terminals for AC/DC control circuits.
- High-precision mechanism design, sensitive operation.
- Durable.
- Designed to control the movement of mechanical parts.
- Used in industrial control applications to automatically monitor and indicate if a given device's travel limits are exceeded.


Specification:

- Material: plastic and metal
- Color: black, red
- Size: As shown
- Contact configuration: SPDT
- Ratings: 15A, 1/2HP, 125/250VAC 0.6A, 125VDC; 0.3A, 250VDC
- Scope of application: electronic equipment
- Wiring method: welding
- Mechanical life: 50000
- 3C rated voltage range: 220V
- Electrical life: 50,000 times
- Working temperature: -25～85℃
- Shell material: ABS

The On/Off Long Lever Micro Limit Switch is a commonly used small current main electric appliance. The collision of the moving parts of the production machinery is used to make the contacts move to realize the on or off control circuit to achieve a certain lighting control purpose.

Usually, such switches are used to limit the position or travel of mechanical movement. Move the motion machine to a certain position, or Make the motion machine automatically stop according to a certain position, reverse movement, variable speed movement or automatic round-trip movement, etc.
