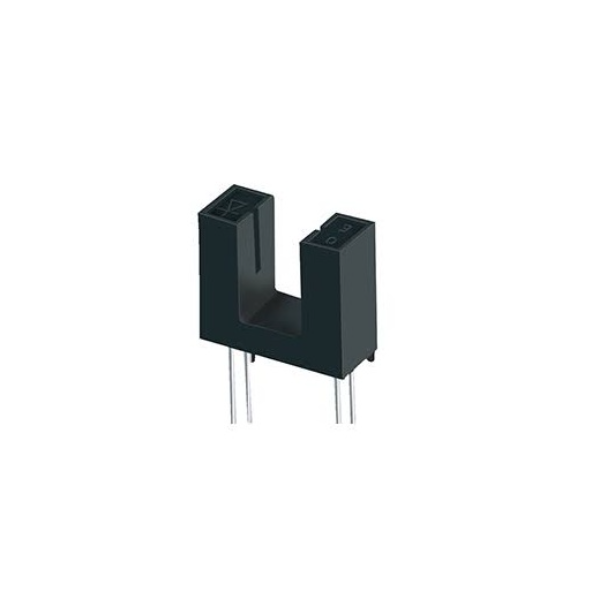

ITR8105 – Opto Interrupter Sensor Module -DIP-4 Package
ITR8105 – Opto Interrupter Sensor Module -DIP-4 Package
Couldn't load pickup availability
Specifications:
- Manufacturer Part No: ITR8105
- Manufacturer: Everlight Electronics Co Ltd
- Sensing Method: Through-Beam
- Sensing Distance: 2.6mm
- Output Configuration: Transistor
- Collector-Emitter Breakdown Voltage: 30V
- Forward Current: 50mA
- Collector Current: 20 mA
- Wave Length: 940 nm
- Voltage Rating: 1.6V
- Surface Color: Black
- Response Time: 20μs
- Operating Temperature: -25°C To +85°C
- Mounting Type: Through-Hole
The ITR8105 Opto Interrupter Sensor Module Is A Compact Reflective Optical Sensor That Integrates An Infrared Emitter And A Phototransistor Receiver In A Single DIP-4 Package. It Is Designed To Detect The Presence Or Absence Of Objects By Sensing Reflected Infrared Light, Providing Reliable And Fast Optical Detection For A Wide Range Of Electronic Applications. The ITR8105 Features High Sensitivity, Fast Response Time, Low Power Consumption, And Stable Performance. Its Standard DIP-4 Through-Hole Package Allows Easy PCB Mounting And Seamless Integration Into Embedded Systems, Industrial Equipment, And DIY Electronics Projects. Sharvielectronics Tags, ITR8105, ITR8105 Sensor, Opto Interrupter, Opto Interrupter Sensor, Photo Interrupter, Through Beam Sensor, IR Slot Sensor, Infrared Sensor, Optical Sensor, Slotted Optical Switch, DIP-4 Sensor, DIP-4 Package, Through Hole Sensor, Transistor Output Sensor, Unamplified Sensor, Everlight ITR8105, Object Detection Sensor, Position Detection Sensor, Encoder Sensor, Speed Detection Sensor, Rotation Detection Sensor, Line Detection Sensor, Slot Type Sensor, Motion Detection Sensor.
Features:
- Integrated Infrared Emitter And Phototransistor Receiver
- Compact DIP-4 Through-Hole Package
- High Sensitivity And Fast Response
- Low Power Consumption
- Reliable Optical Detection
- Easy PCB Mounting
- Long Operating Life
- RoHS Compliant
- Object Detection
- Position Sensing
- Line Following Robots
- Encoder Systems
- Speed Detection
- Industrial Automation
- Consumer Electronics
- Robotics And Embedded Systems
