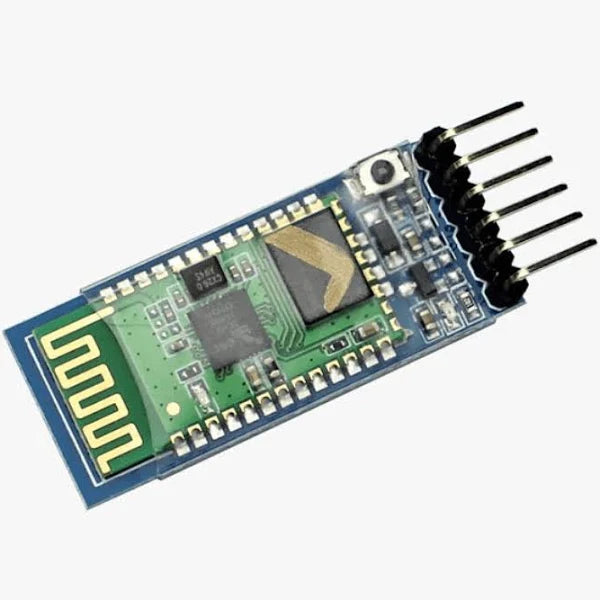

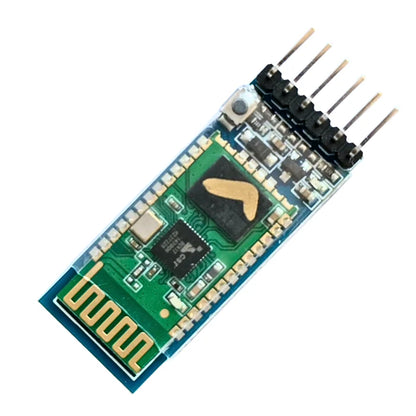

HC-05 Bluetooth Module 6 pin with Button (TTL)
HC-05 Bluetooth Module 6 pin with Button (TTL)
Regular price
Rs. 235.00
Regular price
Sale price
Rs. 235.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
- Bluetooth protocol: Bluetooth Specification v2.0+EDR.
- Frequency: 2.4GHz ISM band.
- Modulation: GFSK(Gaussian Frequency Shift Keying).
- Emission power: =4dBm, Class 2.
- Sensitivity: =-84dBm at 0.1% BER.
HC-05 6 Pin Wireless Serial Bluetooth Module is a Bluetooth module for use with any microcontroller. It uses the UART protocol to make it easy to send and receive data wirelessly.
The HC-06 module is a slave only device. This means that it can connect to most phones and computers with Bluetooth but it cannot connect to another slave-only device such as keyboards and other HC-06 modules. To connect with other slave devices a master module would be necessary such as the HC-05 version which can do both master and slave.
Applications:
- Embedded Projects.
- Industrial Applications.
- Computer and Portable Devices.
- GPS receiver.
Features:
- Working current: matching for 30 mA, matching the communication for 8 mA.
- Dormancy current: no dormancy.
- Used for a GPS navigation system, water, and electricity gas meter reading system.
- With the computer and Bluetooth adapter, PDA, seamless connection equipment.
- Bluetooth module HC-08 Master and slave Two in one module.
- Use the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards.
- Potter default rate of 9600, the user can be set up.
- Bluetooth protocol: Bluetooth Specification v2.0+EDR
- Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps.
- Security: Authentication and encryption.
- Profiles: Bluetooth serial port.
Package Includes:
1 x HC-05 6 pin Bluetooth Module with Button
