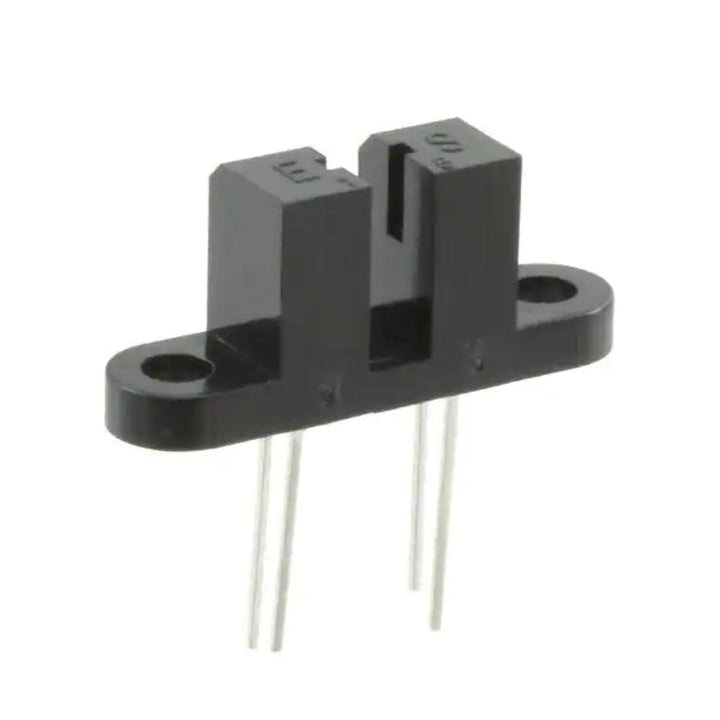

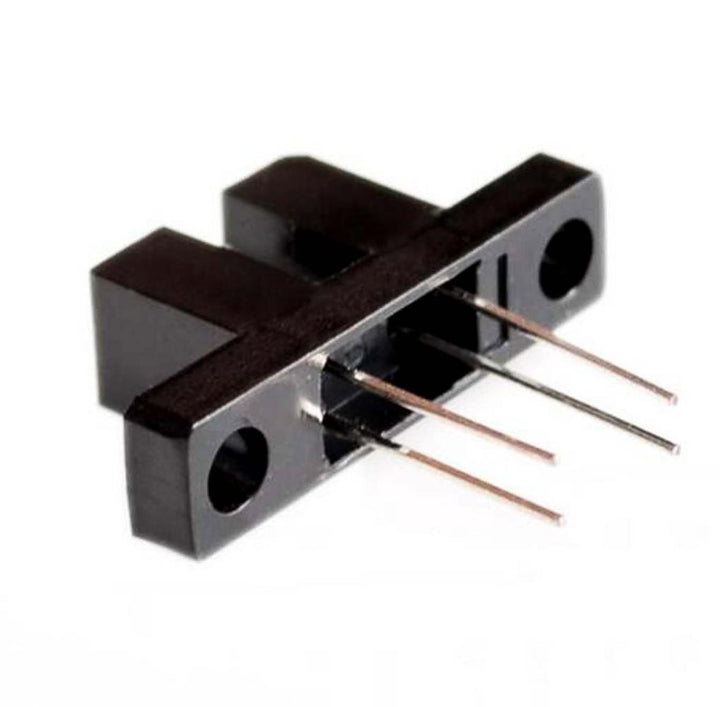

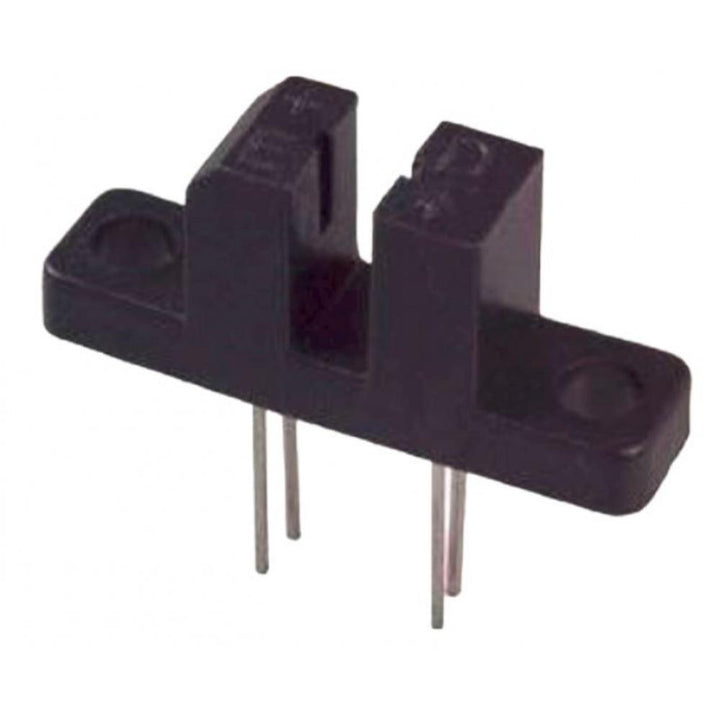

The H21A1 optical sensor is designed to detect the presence or absence of an object by emitting infrared light and measuring the reflection or interruption of that light. It operates based on the principle of light reflection and absorption.

Features:

Compact Design: The H21A1 integrates both the infrared emitter and phototransistor in a single housing, making it compact and easy to use in various applications.

Infrared Emitter: The sensor includes an infrared emitting diode (IRED) that emits infrared light in the near-infrared spectrum.

Phototransistor: It also features a phototransistor that detects the infrared light reflected from surfaces or objects.

Analog Output: The sensor provides an analog output signal based on the intensity of the reflected or interrupted light, allowing for continuous monitoring or detection.

Sensitivity Adjustment: Some variants of the H21A1 may feature sensitivity adjustment options, allowing users to optimize detection parameters.

Low Power Consumption: The sensor typically operates at low power, making it suitable for battery-powered devices and applications.

Applications:

Object Detection: The H21A1 is commonly used for object detection and proximity sensing in various automated systems and devices.

Reflective Opto-Sensing: It can be employed in reflective opto-sensing applications, such as detecting the presence of reflective tapes or markers.

Encoder Systems: Used in encoder systems for position and motion detection by sensing interruptions or changes in the infrared light path.
