SMD diodes are compact semiconductors for rectification, voltage regulation, and signal protection in modern circuits. They enable efficient power conversion with minimal loss and high-speed operation.
- General-Purpose Rectifier Diodes: Used for low-frequency AC-DC conversion, handling high voltage/current but with slower switching.
- Fast Recovery Diodes: Offer shorter reverse recovery times (~100-500 ns) for switching power supplies and motor drivers.
- Ultra-Fast Recovery Diodes: Provide very low reverse recovery times (~25-100 ns) for high-frequency power circuits.
- Schottky Diodes: Feature fast switching and low voltage drop (0.2V–0.4V) for efficient power and RF applications.

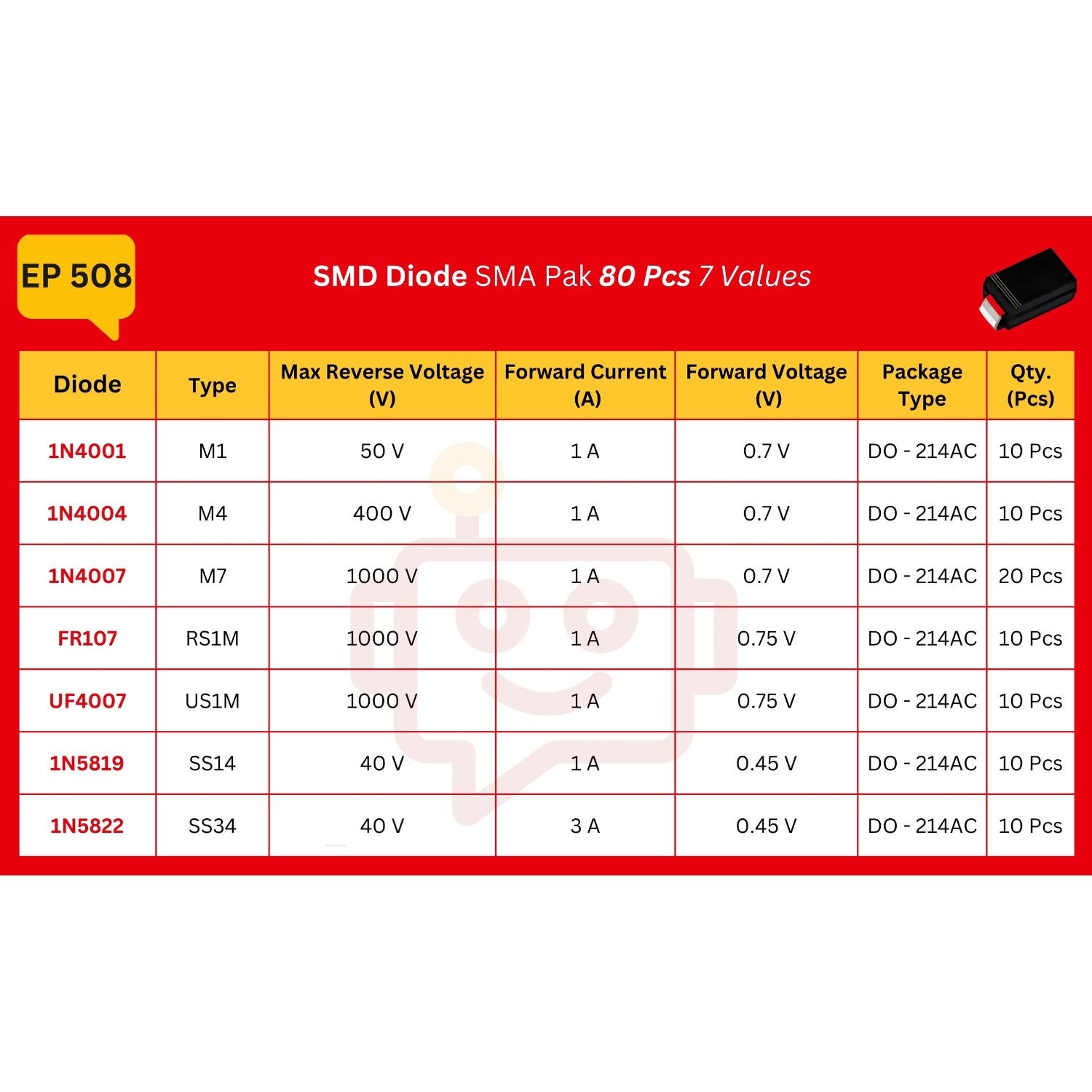

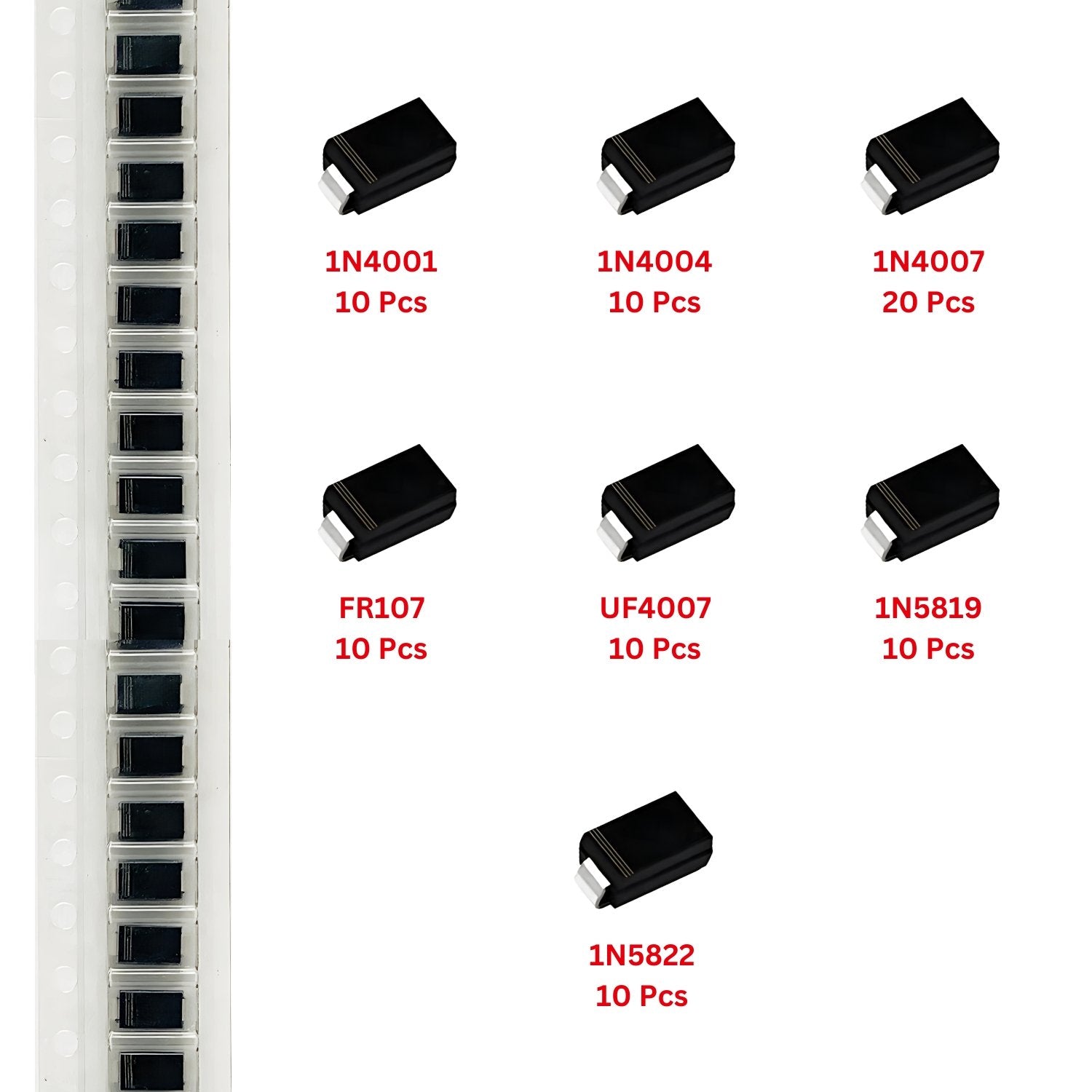

This assortment pack consists of 80 Surface-Mount Device (SMD) diodes, categorized into 7 different types, commonly used in rectification, fast recovery, and Schottky applications. These diodes are essential for various electronic circuits, including power supplies, voltage regulation, and signal protection.
Diode Symbol:
Diode Structure:
Features:
- Compact and efficient
- Optimized switching
- Low power dissipation
- High reliability and thermal performance
Applications:
- AC-DC Rectification - Converts AC to DC in power supplies, adapters, and chargers
- Switching Power Supplies (SMPS) - Enhances efficiency in high-frequency voltage conversion
- Voltage Clamping & Protection - Safeguards circuits from voltage spikes and surges
- High-Speed Signal Processing - Used in RF circuits and communication devices
- Reverse Polarity Protection - Prevents damage in battery-powered and automotive circuits
