Elepak SMD Diode SMA Pak 250 Pcs 20 Types

Rs. 645.00
Rs. 645.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Dispatched in 24 hrsExcept Sundays and public holidays
  • GST invoiceInput tax credit for businesses
  • ReplacementFor transit damage or wrong item
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI Mastercard VISA
SSL Encrypted
256-bit Encryption

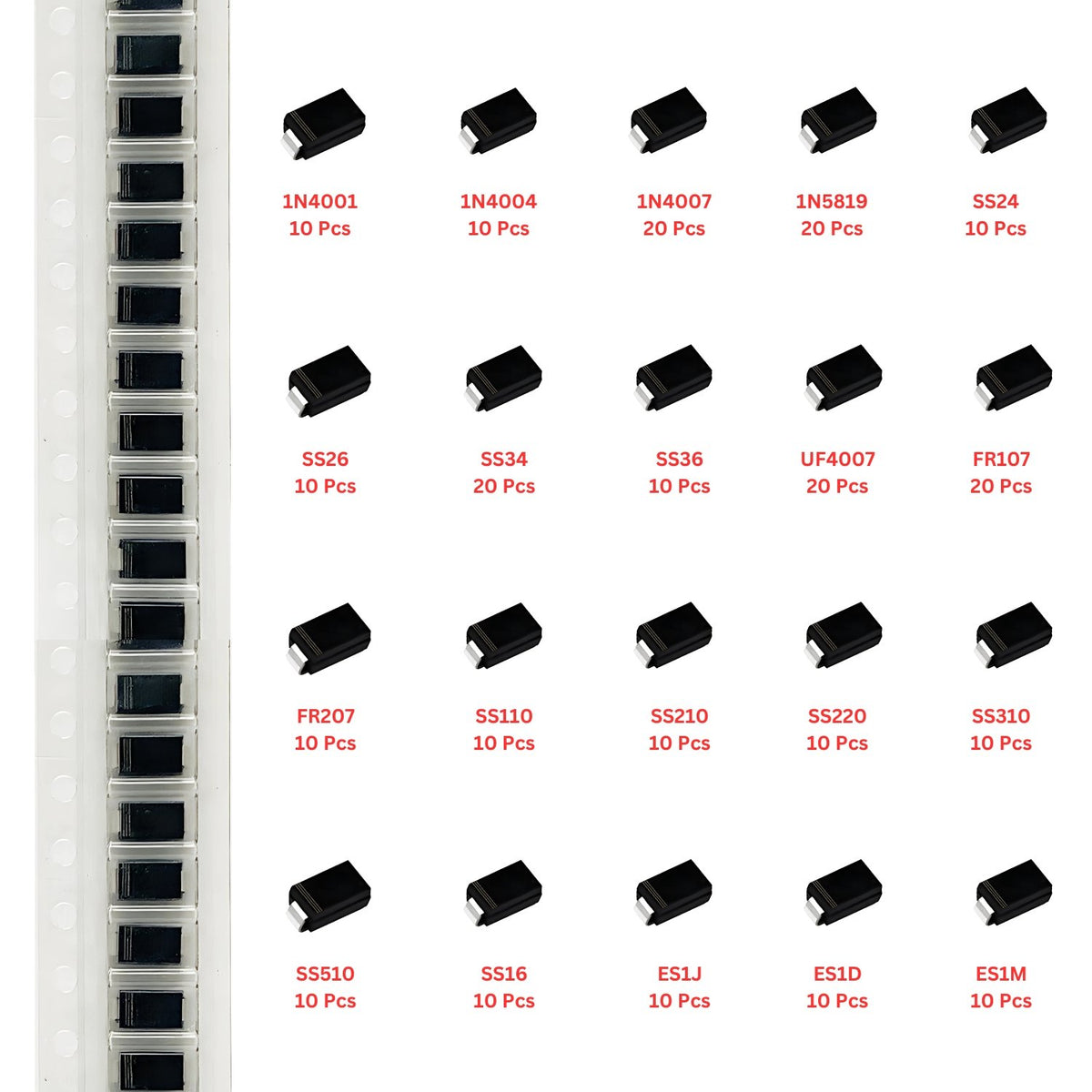

Package Includes:

250 SMD SMA Diode 20 Types

  • M1 1N4001 – 10 Pcs
  • M4 1N4004 – 10 Pcs
  • M7 1N4007 – 20 Pcs
  • SS14 1N5819 – 20 Pcs
  • SS24 – 10 Pcs
  • SS26 – 10 Pcs
  • SS34 – 20 Pcs
  • SS36 – 10 Pcs
  • US1M UF4007 – 20 Pcs
  • RS1M FR107 – 20 Pcs
  • RS2M FR207 – 10 Pcs
  • SS110 – 10 Pcs
  • SS220 – 10 Pcs
  • SS310 – 10 Pcs
  • SS510 – 10 Pcs
  • SS16 – 10 Pcs
  • ES1J – 10 Pcs
  • ES1D – 10 Pcs
  • ES1M – 10 Pcs

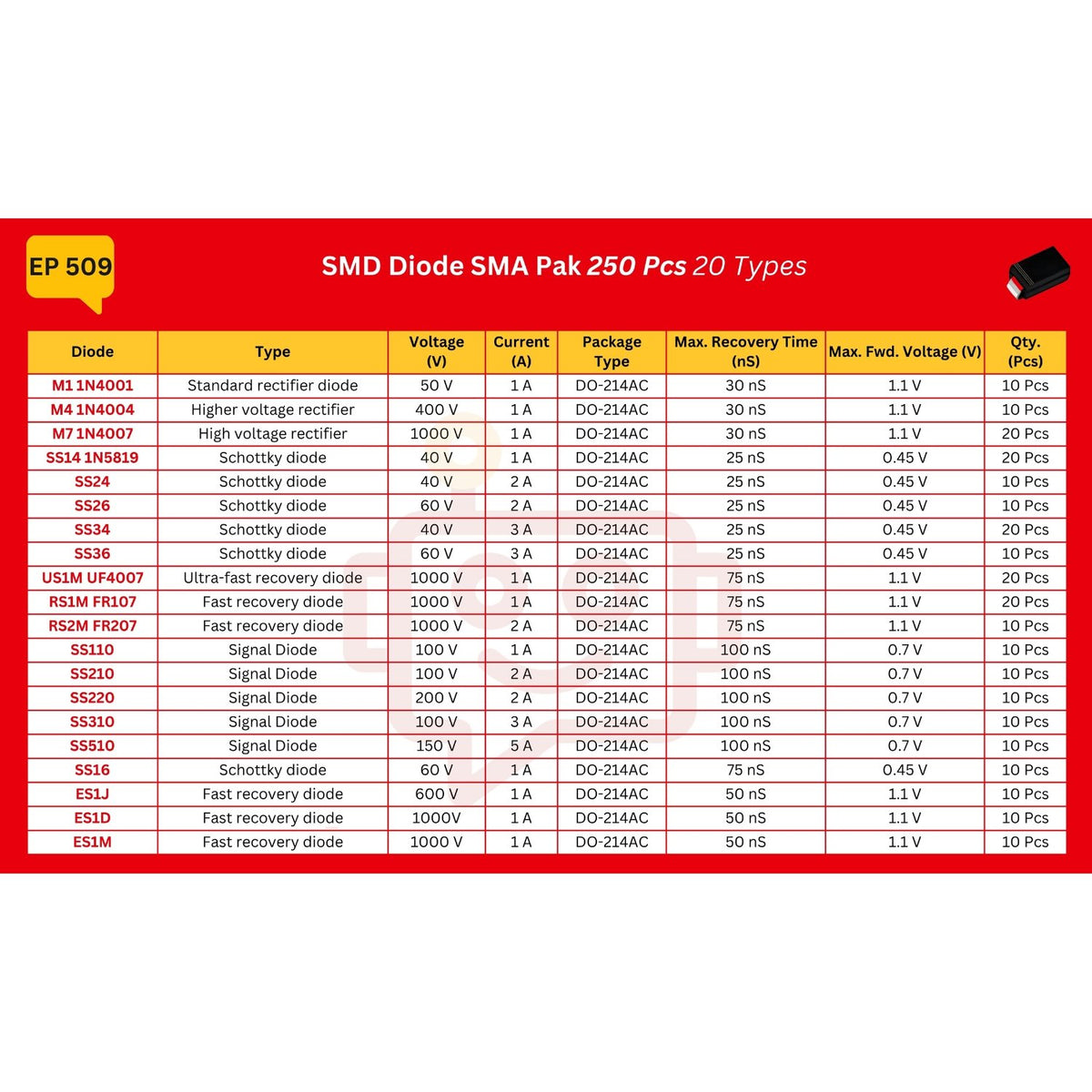

Technical Specifications:

    • Type: SMD
    • Model: SMA Diode
    • Package Type: DO – 214AC
    • Voltage: 50 V – 1000 V
    • Current: 1 A – 5 A
    • Max. Recovery Current: 25 nS – 100 nS
    • Max. Forward Voltage: 0.45 V – 1.1 V
    • Pak Weight: 100 gm
    • Pak Dimensions: 127 x 80 x 24 mm

    Description

    SMD SMA diodes are compact, surface-mount rectifier and switching diodes in the SMA (DO-214AC) package, designed for efficient power rectification, voltage protection, and fast switching in modern electronic circuits.

    This SMD SMA Diode Value Pack contains a well-curated selection of 20 different types of commonly used diodes, totaling 250 pieces, suitable for a wide range of electronic applications.

    Diode Symbol:



    Diode Structure:

    Features:

    • Compact & Space-Saving
    • Efficient Heat Dissipation
    • Low Power Loss
    • Fast Switching Speed
    • High Reliability & Durability

    Applications:

    • Bridge Rectifiers - Converts AC to DC in power supply circuits
    • Voltage Clamping - Protects circuits from voltage spikes and transients
    • Polarity Protection - Prevents damage from reverse voltage connections
    • DC-DC Converters - Enhances power efficiency in voltage regulation circuits
    • Switching Power Supplies (SMPS) - Ensures efficient power conversion in electronic devices
