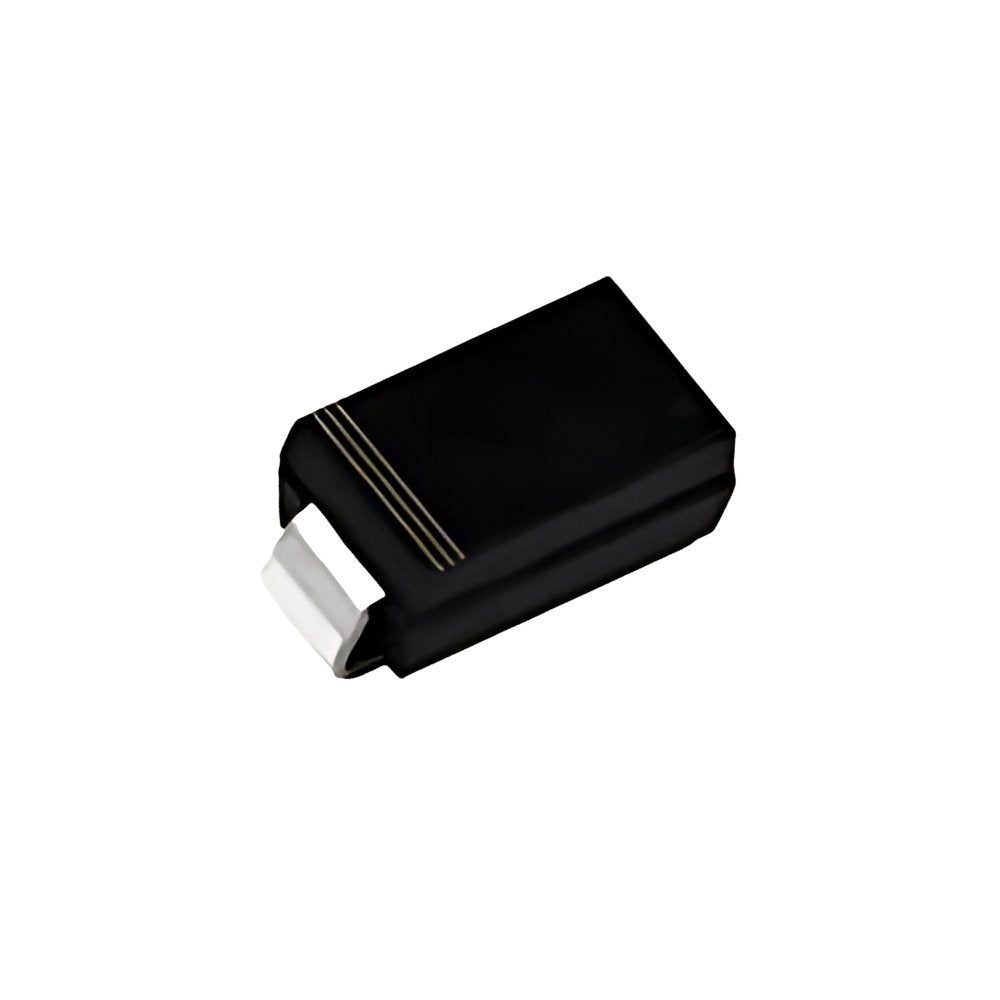

Elepak SMD Diode SMA Pak 250 Pcs 20 Types
Elepak SMD Diode SMA Pak 250 Pcs 20 Types
Regular price
Rs. 645.00
Regular price
Sale price
Rs. 645.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

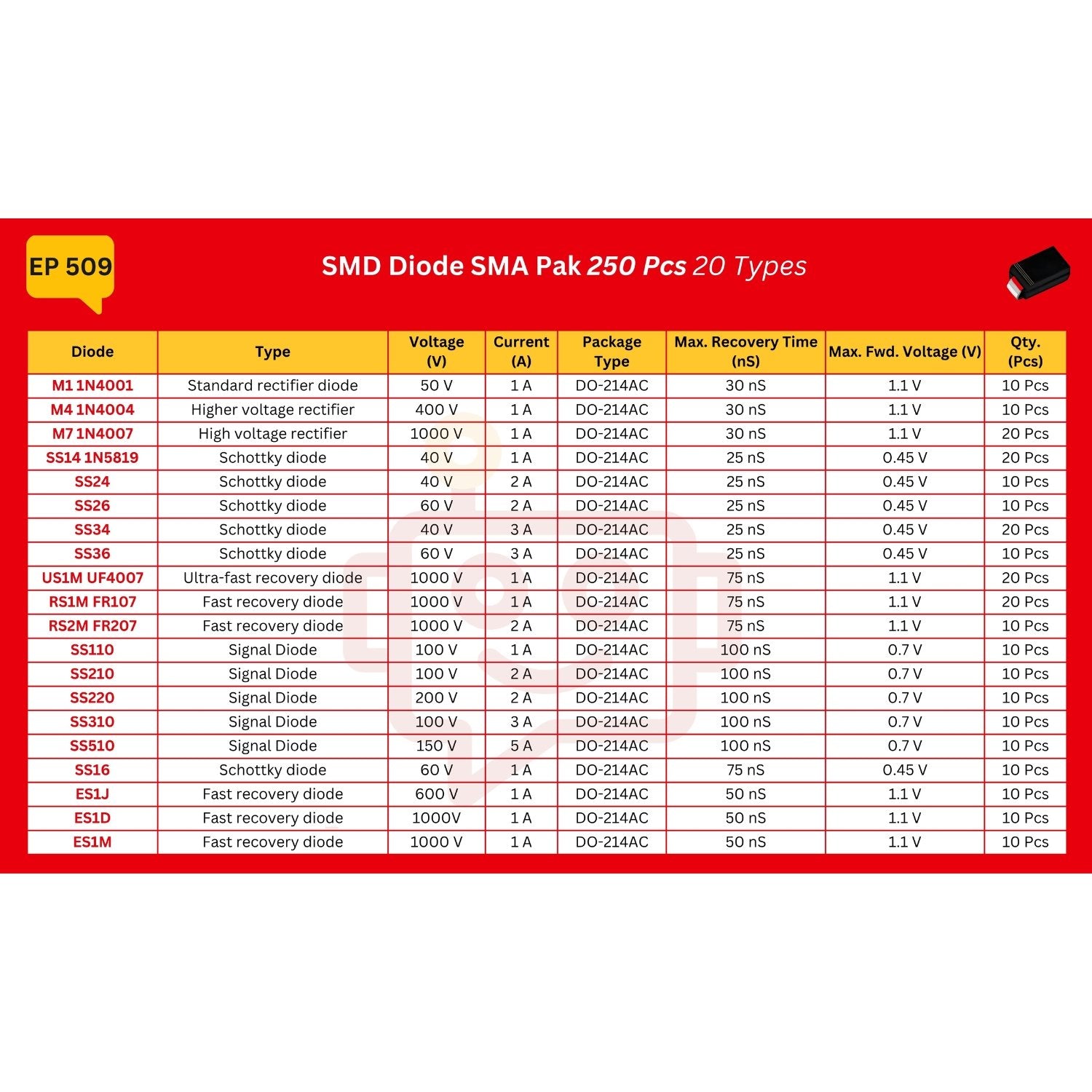

Package Includes:
250 SMD SMA Diode 20 Types
- M1 1N4001 – 10 Pcs
- M4 1N4004 – 10 Pcs
- M7 1N4007 – 20 Pcs
- SS14 1N5819 – 20 Pcs
- SS24 – 10 Pcs
- SS26 – 10 Pcs
- SS34 – 20 Pcs
- SS36 – 10 Pcs
- US1M UF4007 – 20 Pcs
- RS1M FR107 – 20 Pcs
- RS2M FR207 – 10 Pcs
- SS110 – 10 Pcs
- SS220 – 10 Pcs
- SS310 – 10 Pcs
- SS510 – 10 Pcs
- SS16 – 10 Pcs
- ES1J – 10 Pcs
- ES1D – 10 Pcs
- ES1M – 10 Pcs
Technical Specifications:
- Type: SMD
- Model: SMA Diode
- Package Type: DO – 214AC
- Voltage: 50 V – 1000 V
- Current: 1 A – 5 A
- Max. Recovery Current: 25 nS – 100 nS
- Max. Forward Voltage: 0.45 V – 1.1 V
- Pak Weight: 100 gm
- Pak Dimensions: 127 x 80 x 24 mm
Description
SMD SMA diodes are compact, surface-mount rectifier and switching diodes in the SMA (DO-214AC) package, designed for efficient power rectification, voltage protection, and fast switching in modern electronic circuits.
This SMD SMA Diode Value Pack contains a well-curated selection of 20 different types of commonly used diodes, totaling 250 pieces, suitable for a wide range of electronic applications.
Diode Symbol:
Diode Structure:
Features:
- Compact & Space-Saving
- Efficient Heat Dissipation
- Low Power Loss
- Fast Switching Speed
- High Reliability & Durability
Applications:
- Bridge Rectifiers - Converts AC to DC in power supply circuits
- Voltage Clamping - Protects circuits from voltage spikes and transients
- Polarity Protection - Prevents damage from reverse voltage connections
- DC-DC Converters - Enhances power efficiency in voltage regulation circuits
- Switching Power Supplies (SMPS) - Ensures efficient power conversion in electronic devices
