Elepak SMD 1206 LED Pak 100 Pcs 5 Colors

Elepak SMD 1206 LED Pak 100 Pcs 5 Colors

Rs. 160.00
Rs. 160.00
Sale Sold out
Taxes included. Flat Shipping calculated at checkout.
Trust

Package Includes:

100 SMD 1206 LED 5 Colors

  • Red - 20 Pcs
  • Yellow - 20 Pcs
  • Green - 20 Pcs
  • White - 20 Pcs
  • Blue - 20 Pcs

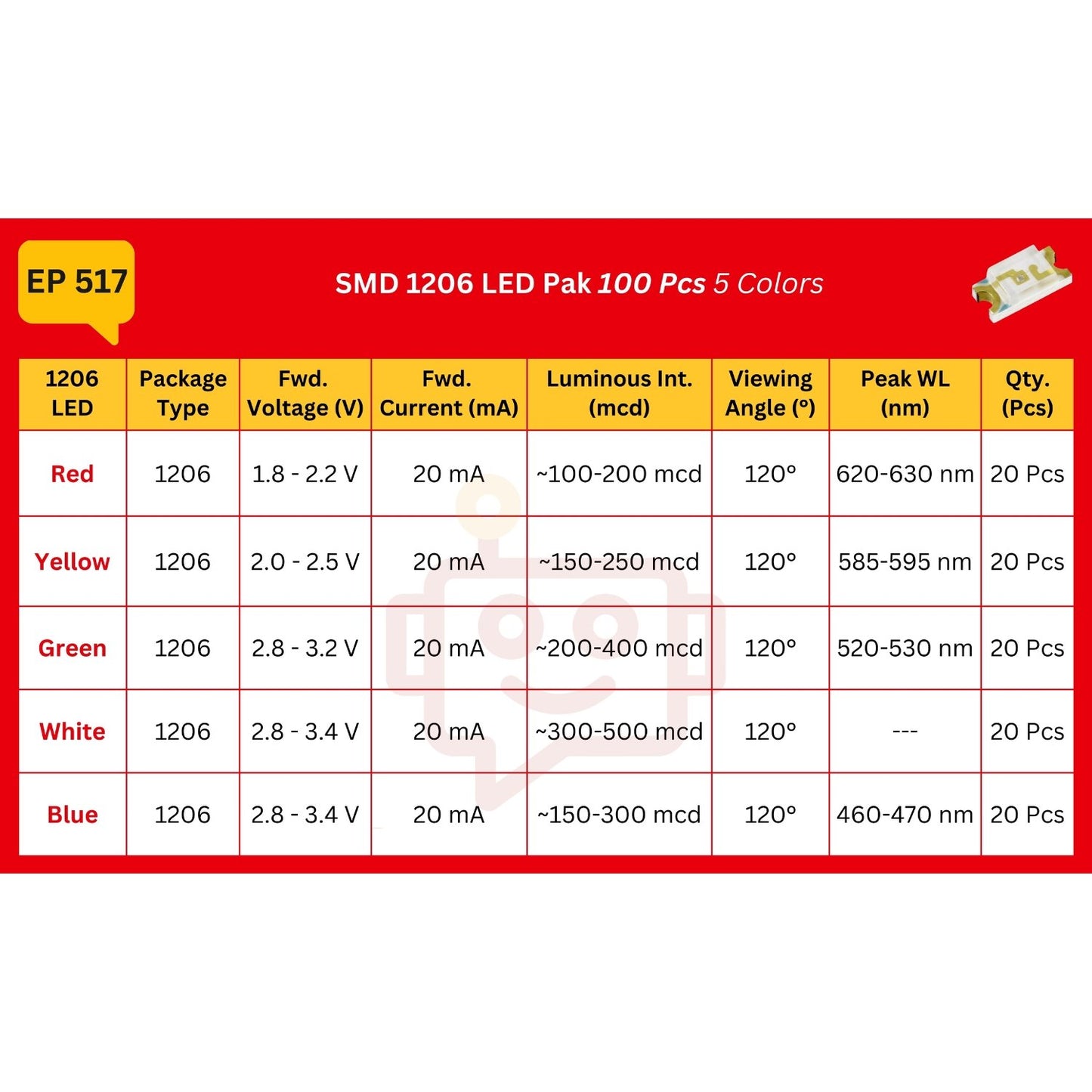

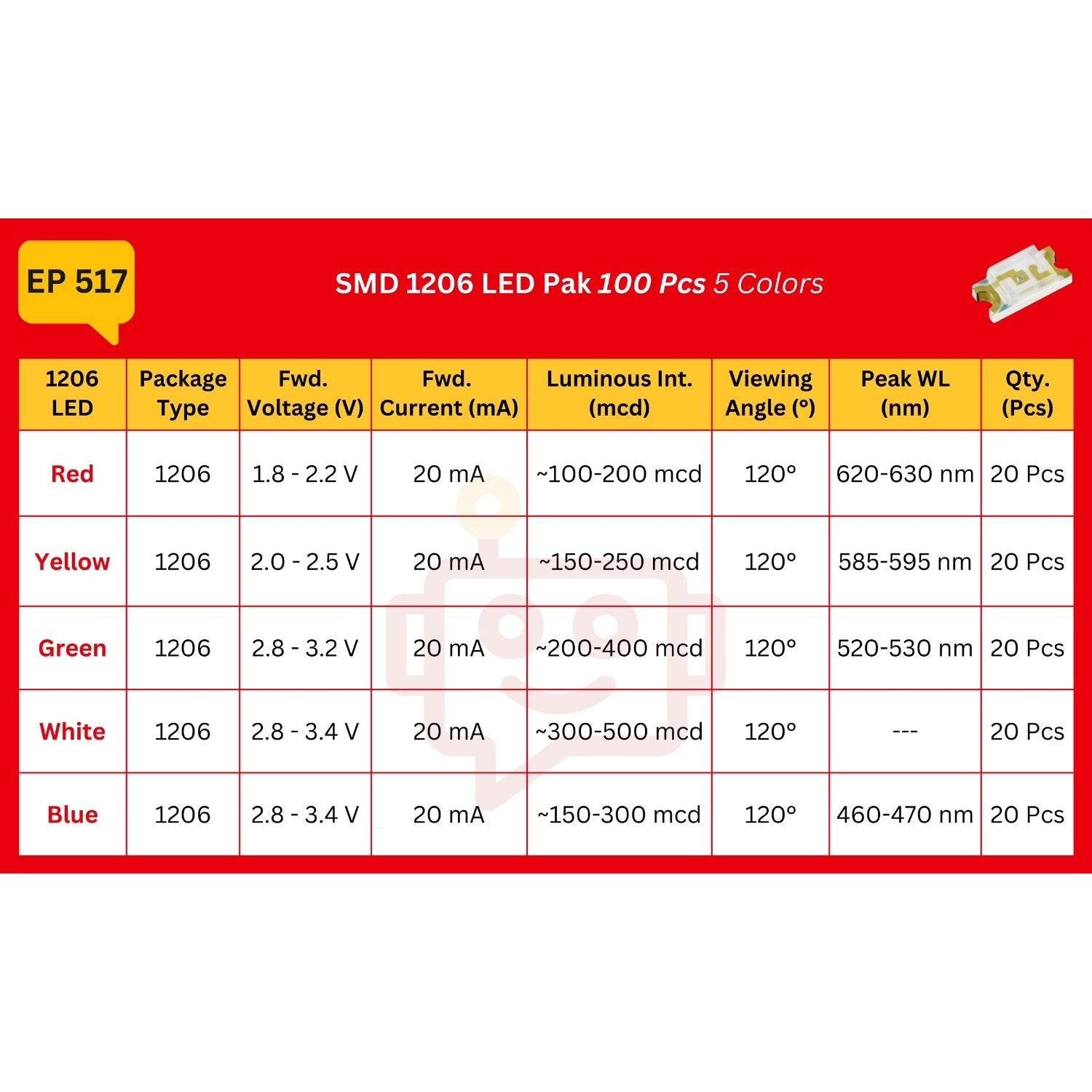

Technical Specifications:

    • Type: SMD
    • Model: LED
    • Package Type: 1206
    • Color: Red, Yellow, Green, White, Blue
    • Fwd. Current: 20 mA
    • Viewing Angle: 120°
    • Forward Voltage Ratings:
      • Red: 1.8 – 2.2 V, Yellow: 2.0 – 2.5 V, Green: 2.8 – 3.2 V,
      • White: 2.8 – 3.4 V, Blue: 2.8 – 3.4 V
    • Luminous Intensity:
      • Red: ~100 – 200 mcd, Yellow: ~150 – 250 mcd, Green: ~200 – 400 mcd,
      • White: ~300 – 500 mcd, Blue: ~150 – 300 mcd
    • Peak Wavelength:
      • Red: 620 – 630 nm, Yellow: 585 – 595 nm, Green: 520 – 530 nm,
      • White: —, Blue: 460 – 470 nm
    • Pak Weight: 60 gm
    • Pak Dimensions: 90 x 60 x 24 mm

    Description

    The SMD 1206 LED is a surface-mount LED with a larger package size of 3.2mm × 1.6mm, offering high brightness and excellent reliability.Available in five colors (Red, Yellow, Green, White, Blue), these LEDs are widely used in electronic circuits for indicators, backlighting, and signal applications. Their larger size compared to 0603 and 0805 LEDs makes them easier to handle and solder, making them ideal for both automated and manual assembly.

    1206 LED Symbol:



    1206 LED Structure:

    Features:

    • Larger package size
    • Low power consumption
    • High brightness output
    • Multiple colour options
    • Wide viewing angle
    • Fast response time

    Applications:

    • PCB Indicators - Used as status indicators in electronic circuits
    • Backlighting - Provides illumination for displays, keypads, and screens
    • Consumer Electronics - Found in remote controls, smartphones, and wearables
    • Automotive Applications - Used in dashboards, interior lighting, and signal indicators
    • IoT & Smart Devices - Integrated into connected devices for status indication
