Elepak EP45 1W Zener Diode Pak 3V to 47V 300 Pcs 30 Values

Elepak EP45 1W Zener Diode Pak 3V to 47V 300 Pcs 30 Values

Rs. 700.00
Rs. 700.00
Sale Sold out
Taxes included. Flat Shipping calculated at checkout.
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
IHCPRIME
100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI Mastercard VISA
SSL Encrypted
256-bit Encryption

Package Includes

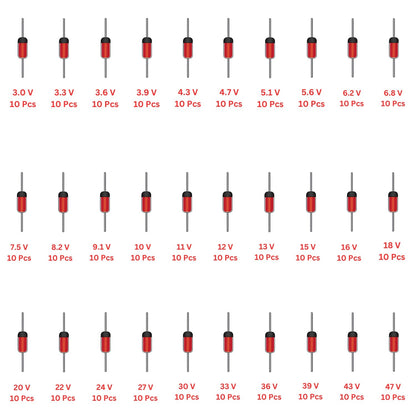

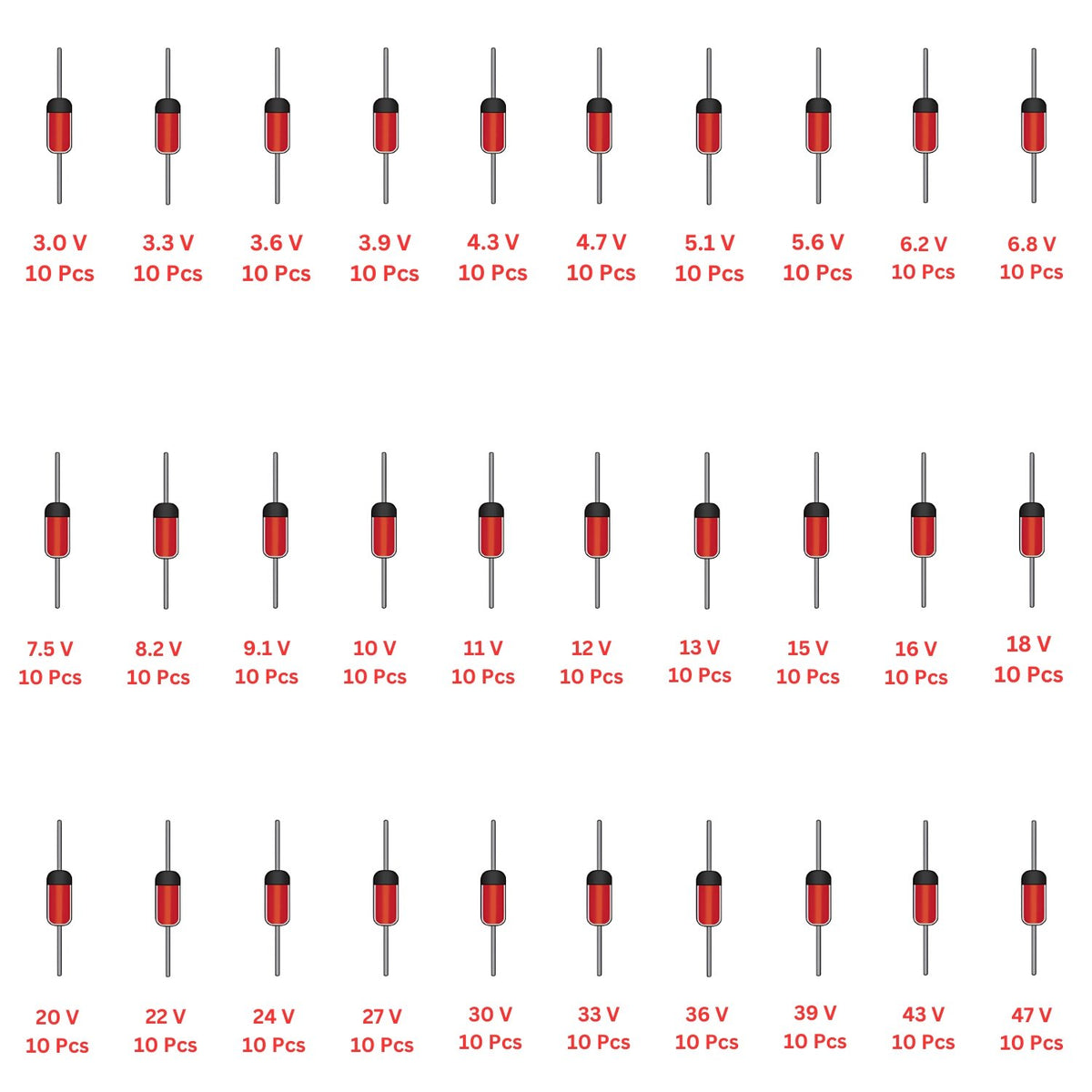

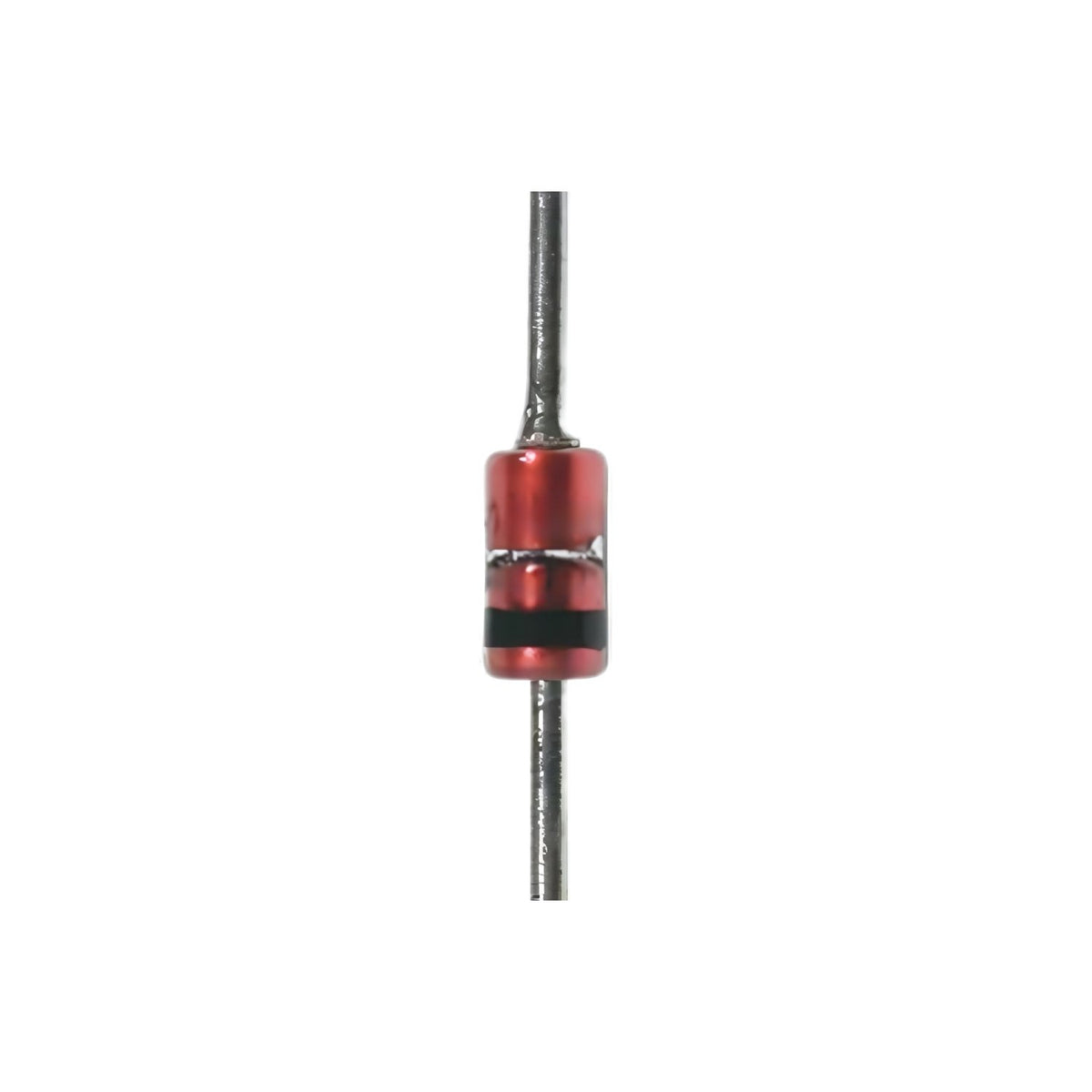

300 1W Zener Diode 30 values

  • 3.0 V - 10 Pcs
  • 3.3 V - 10 Pcs
  • 3.6 V - 10 Pcs
  • 3.9 V - 10 Pcs
  • 4.3 V - 10 Pcs
  • 4.7 V - 10 Pcs
  • 5.1 V - 10 Pcs
  • 5.6 V - 10 Pcs
  • 6.2 V - 10 Pcs
  • 6.8 V - 10 Pcs
  • 7.5 V - 10 Pcs
  • 8.2 V - 10 Pcs
  • 9.1 V - 10 Pcs
  • 10 V - 10 Pcs
  • 11 V - 10 Pcs
  • 12 V - 10 Pcs
  • 13 V - 10 Pcs
  • 15 V - 10 Pcs
  • 16 V - 10 Pcs
  • 18 V - 10 Pcs
  • 20 V - 10 Pcs
  • 22 V - 10 Pcs
  • 24 V - 10 Pcs
  • 27 V - 10 Pcs
  • 30 V - 10 Pcs
  • 33 V - 10 Pcs
  • 36V - 10 Pcs
  • 39 V - 10 Pcs
  • 43 V - 10 Pcs
  • 47 V - 10 Pcs

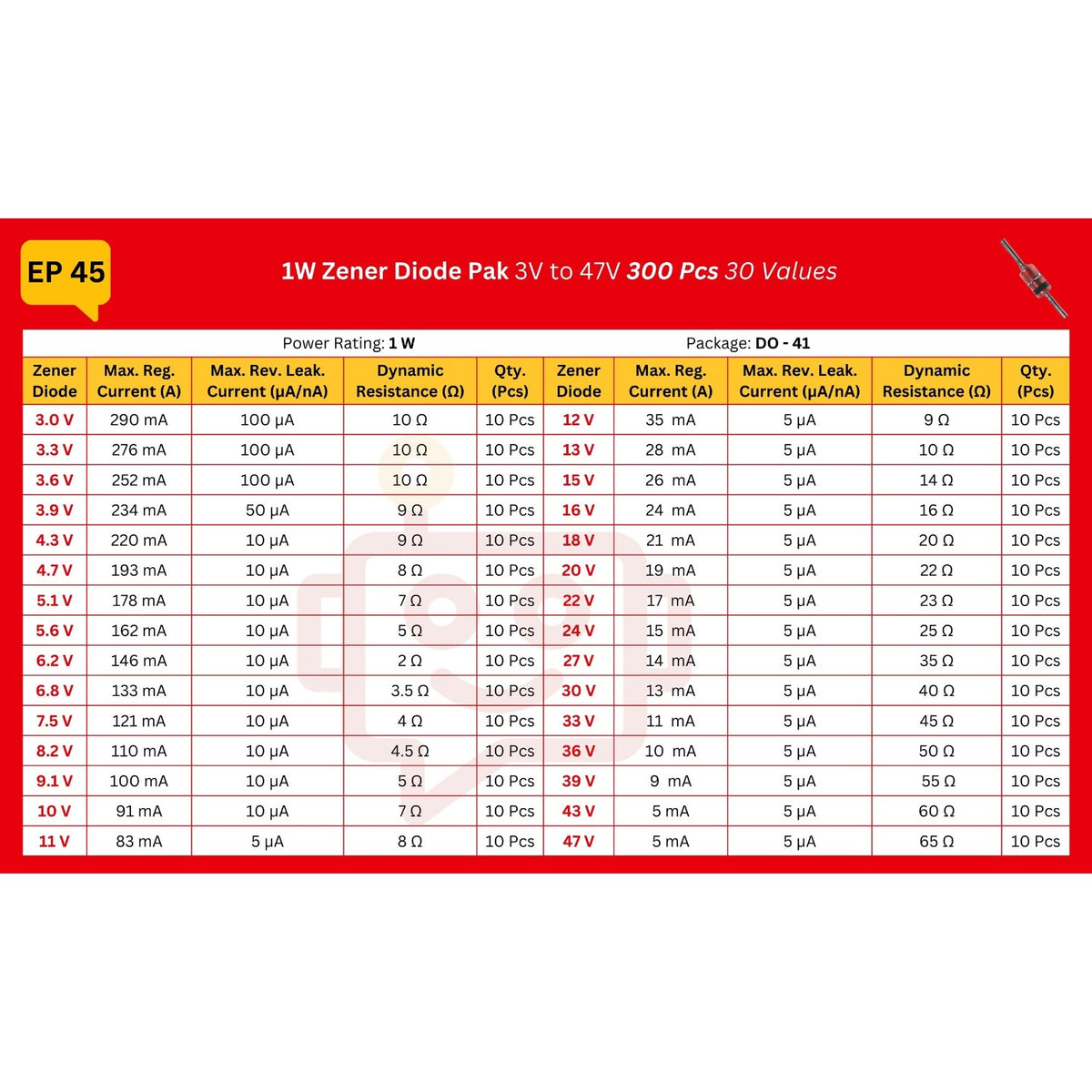

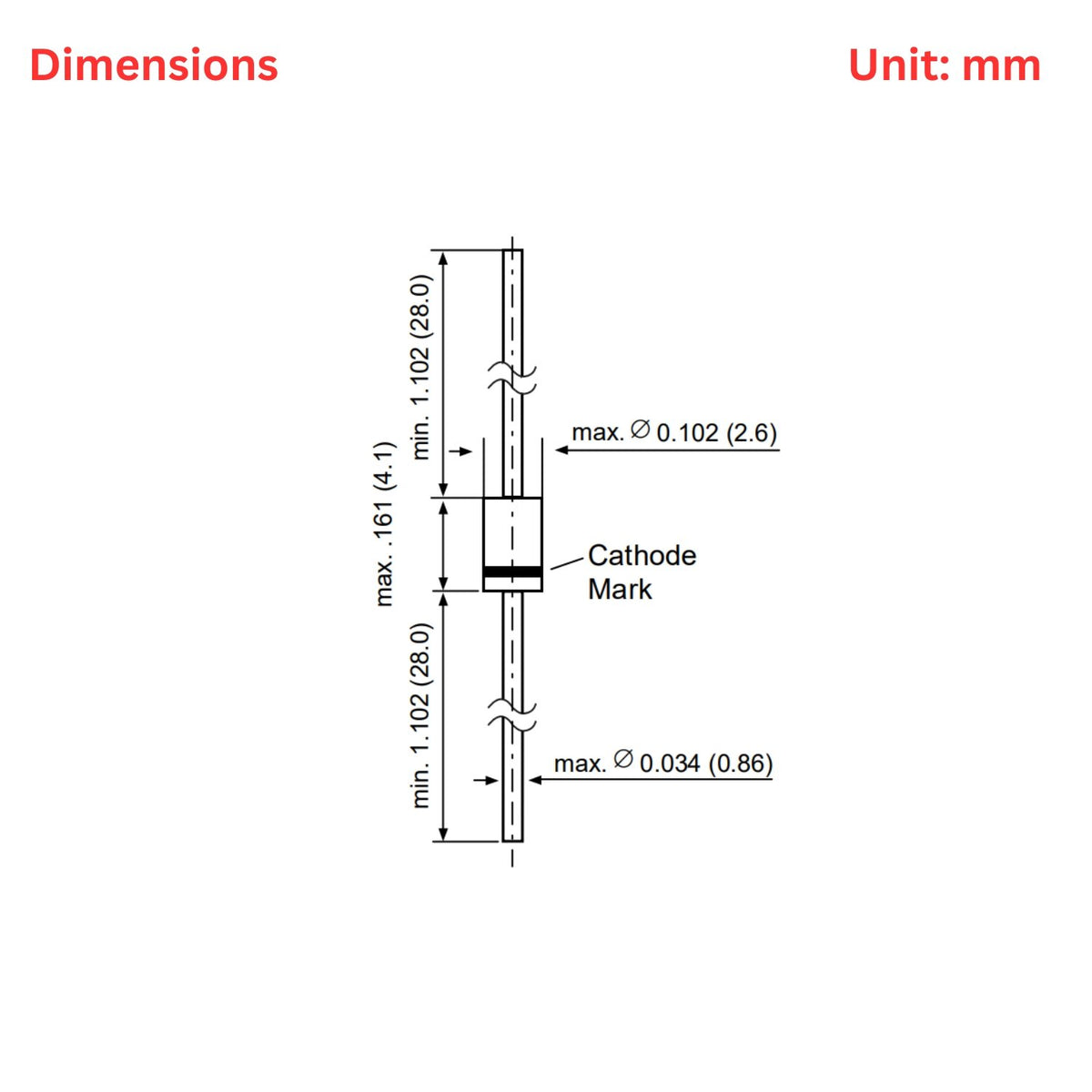

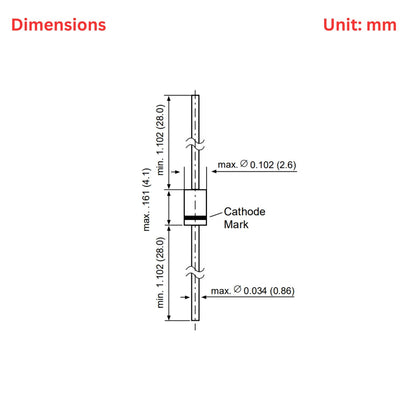

Technical Specification:

  • Type: Through Hole
  • Model: 1 W Zener Diode
  • Power Dissipation: 1 W
  • Voltage Range: 3.0 V – 47 V
  • Tolerance: ±5 %
  • Package Type: DO-41
  • Max. Reg. Current: 5 mA – 290 mA
  • Max. Rev. Leakage Current: 5 µA – 100 µA
  • Dynamic Resistance: 2 Ω – 65 Ω
  • Pak Weight: 180 gm
  • Pak Dimensions: 150 x 100 x 35 mm

Description



The 1W Zener Diode Pak is a versatile assortment for voltage regulation, voltage reference and circuit protection applications. It includes 300 Zener diodes in 30 voltage values ranging from 3V to 47V, providing a broad selection for electronics repair, prototyping, testing and component replacement.

With a 1W power rating, these Zener diodes can help stabilise voltage levels and protect sensitive components from excessive voltage. The 1W Zener Diode Pak is suitable for power supplies, voltage-clamping circuits, regulator boards, control systems, testing equipment and DIY electronic projects.

Zener Diode Symbol:

Zener Diode Structure:

Zener Diode Part Code:

Zener Diode V-I Characteristics:

The VI characteristic of the Zener diode is shown in the figure below. When the diode is connected in forward bias, this diode work like a normal diode. But When a reverse voltage is applied across the diode. initially a small reverse saturation current Io flows across the diode. As the reverse voltage is increased, at a certain value of reverse voltage, the junction will be breakdown and drastically a large reverse current flow through the device. This breakdown is called Zener breakdown. The voltage at which this breakdown occurs is called Zener voltage.

Features:

  • Stable voltage regulation
  • Overvoltage protection
  • High reliability
  • Compact and lightweight
  • Easy to integrate
  • Cost-effective
  • Versatile applications

Applications:

  • Voltage Regulation - Maintains a stable output voltage in circuits
  • Overvoltage Protection - Prevents excess voltage from damaging components
  • Reference Voltage - Provides a stable reference for precise circuit operation
  • Power Supply Circuits - Used in regulated power supplies for steady voltage output
  • Signal Clipping & Shaping - Helps in waveform shaping and signal conditioning
  • Surge Suppression - Protects sensitive electronics from voltage spikes
  • Switching Circuits - Used in logic circuits for controlled switching
  • Meter Protection - Prevents voltage surges from damaging measuring instruments
