BT136 600D TRIAC LOGIC SENSITIVE GATE
BT136 600D TRIAC LOGIC SENSITIVE GATE
Regular price
Rs. 22.00
Regular price
Sale price
Rs. 22.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption

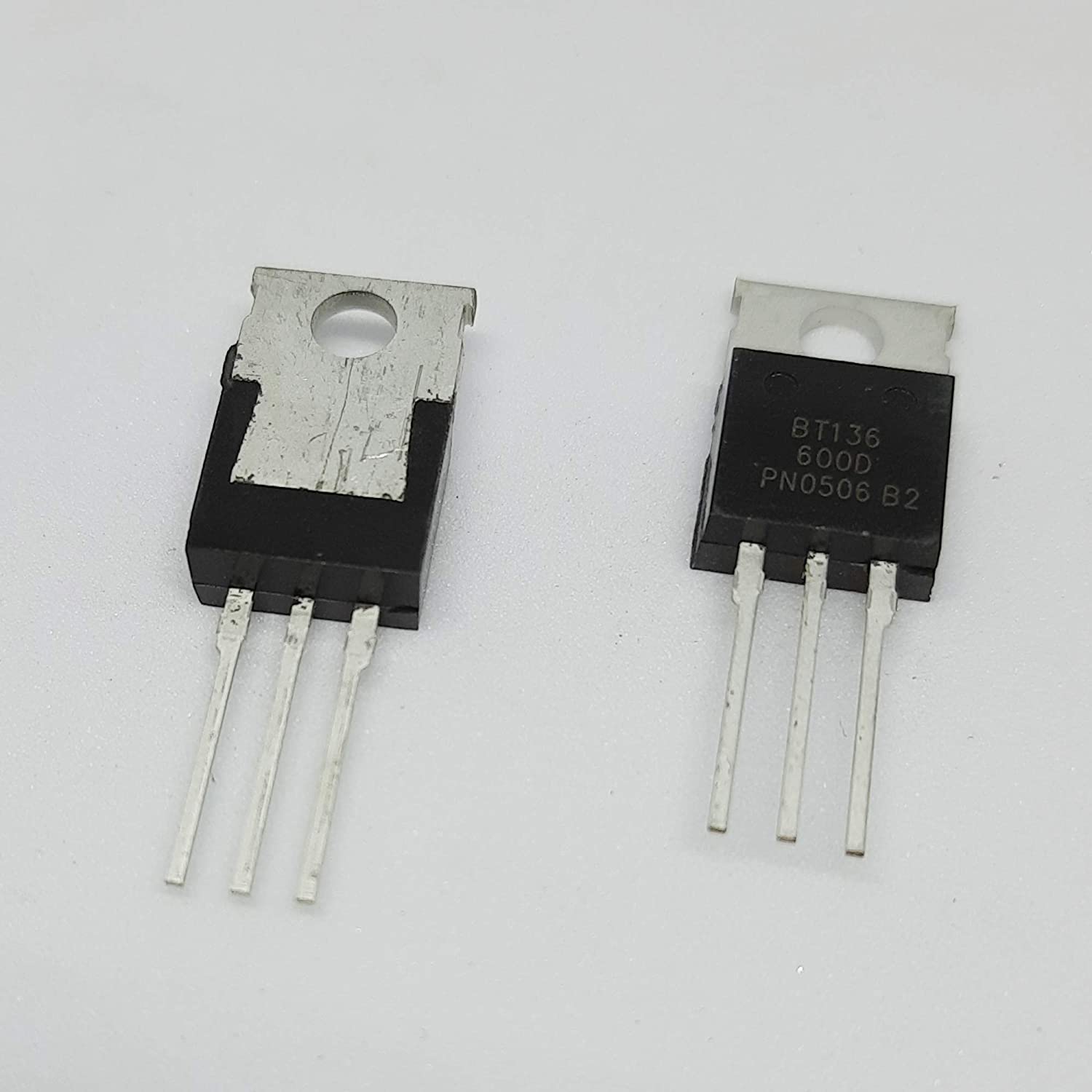

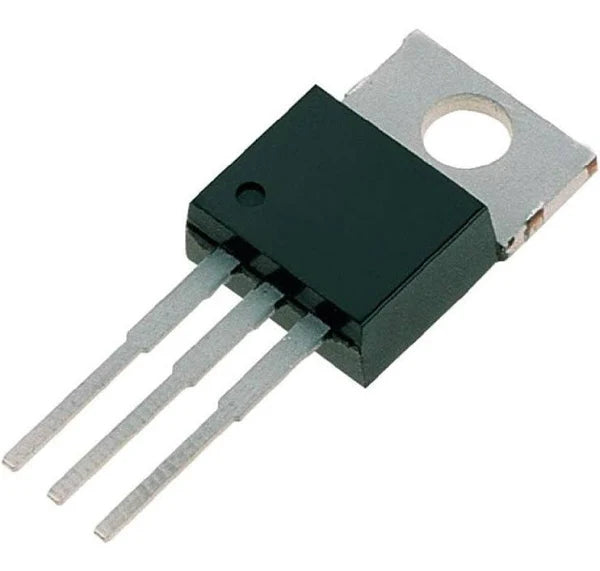

BT 136 600 V 4A Triac TO-220 IC
Bt136 is a range of TRIACs, triodes for alternating current is called bidirectional thyristors. Triac makes a convenient switch to AlterNate current circuit.
PRODUCT SPECIFICATIONS
- Product Type: TRIAC SCR
- IC Number: BT136
- Number of Pins: 3
- Package type: TO-220B
- Dimensions: 10.3 mm x 4.7 mm x 9.4 mm
- Package contains: 1 x BT136 IC
SPECIFICATION
- The rated average on state current: 4 A
- Maximum gate trigger current: 10 mA
- Maximum holding current: 10 mA
- Surge current rating: 27 A
- The repetitive peak of state current: 0.5 mA
- Maximum gate trigger voltage: 1.5 Volts
- Repetitive peak reverse voltage: 600 Volts
- Repetitive peak forward blocking voltage: 600 Volts
- The peak on state voltage: 1.7 Volts
APPLICATION
- AC Switching
- Control application with the current rating from 1 A to 40 A.
- Motor control
