Arduino MEGA 2560 CH340 SMD
Subcribe to back in stock notification
All Prices Incuding GST
All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number
Estimated time to pack : 15 Mins.
11 AM- 7 PM
Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha
Same Day Dispatch.
Shipping Charge Flat-70/-
Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

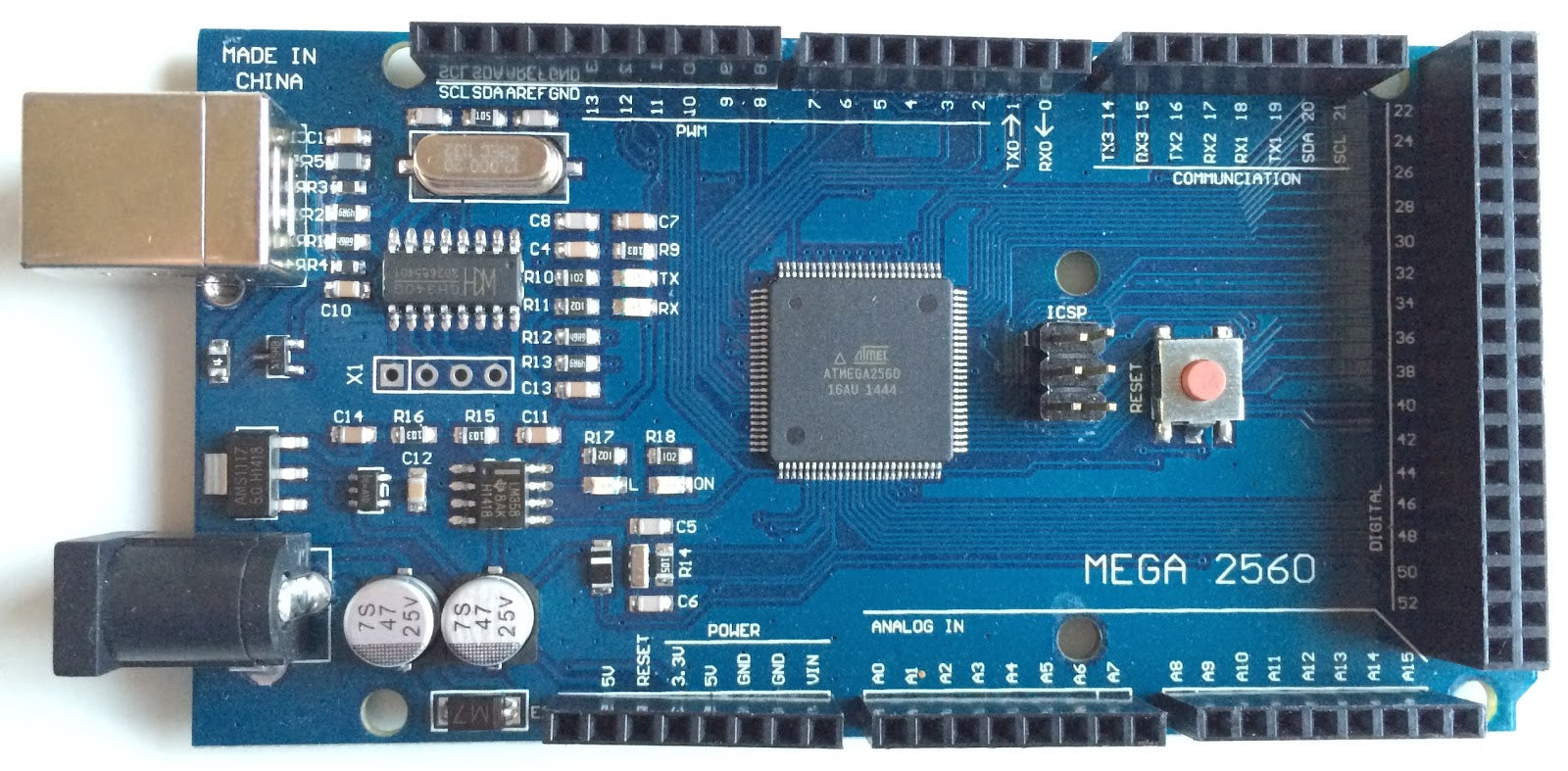

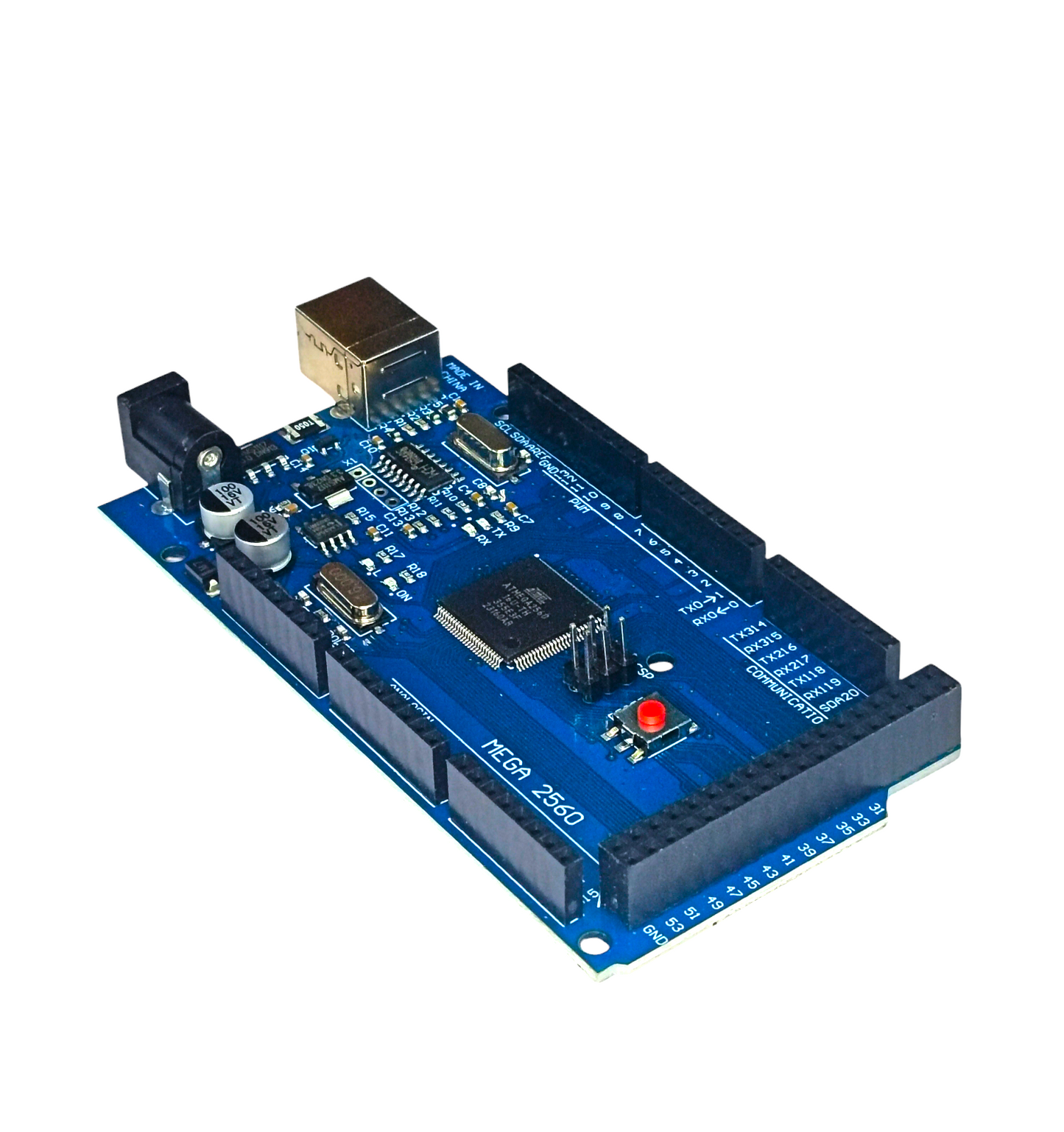

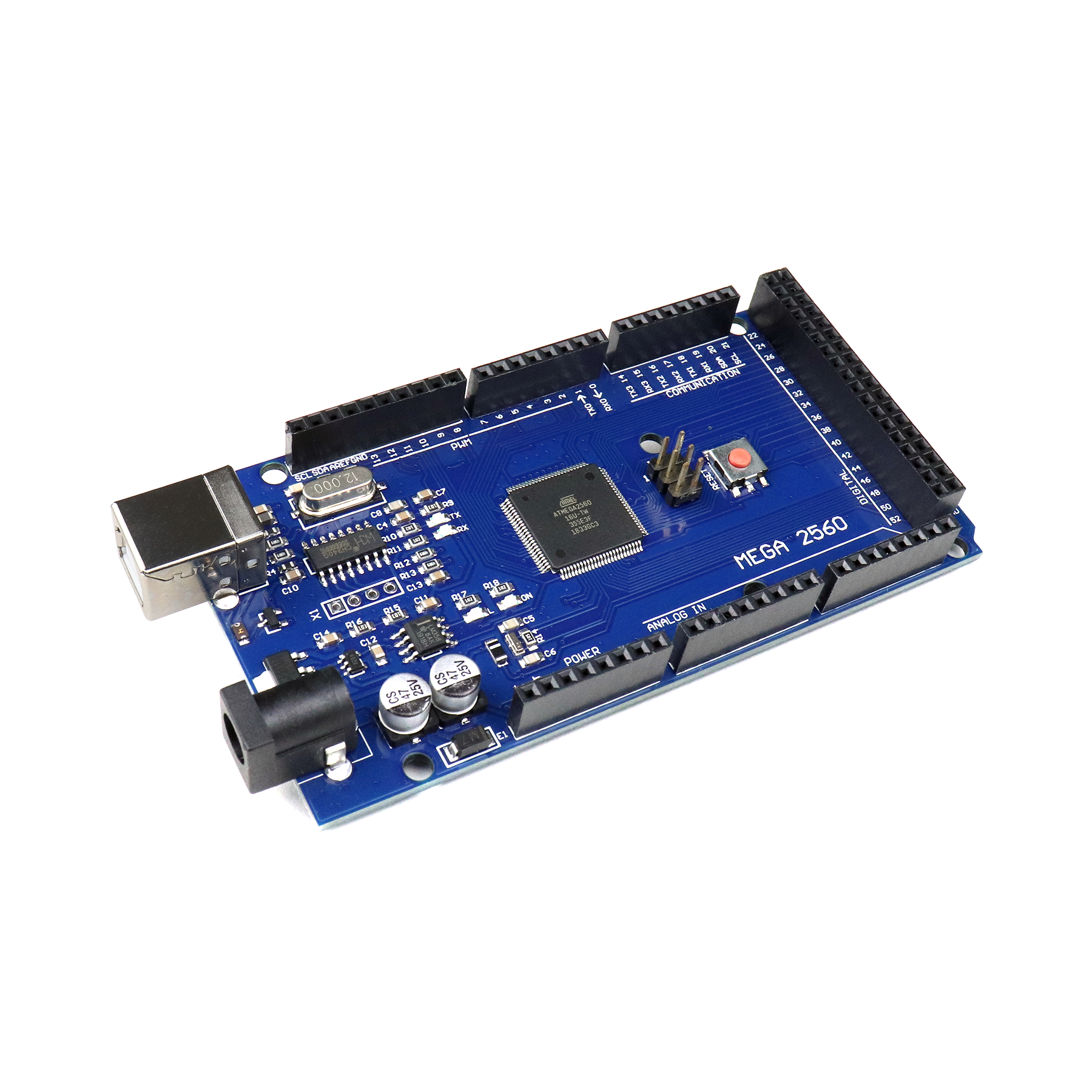

The ATmel MCU ATMEGA16U2 MEGA 2560 R3 Improved Version CH340G Board is a micro-controller board base on the ATmega2560. It has a USB host interface to connect with Android based phones, base on the MAX3421e IC.
The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC- to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.
|Input Voltage (recommended)||7-12V|
|Input Voltage (limits)||6-20V|
|Digital I/O Pins||54 (of which 14 provide PWM output)|
|Analog Input Pins||16|
|DC Current per I/O Pin||40 mA|
|DC Current for 3.3V Pin||50 mA|
|Flash Memory||256 KB of which 8 KB used by the bootloader|
|Clock Speed||16 MHz|
|Weight of Arduino Mega 2560 Board||35.6g|
|Weight of Compatible USB Cable||18.2g|
|Length of Compatible USB Cable||31cm|
- Shipping Time:- Our orders are shipped within 24 Hours.
- Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
- Shipping Partner:- Bluedart & India Post.
- Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
- Return:- Item mismatch or parts missing etc.
- No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
- We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
