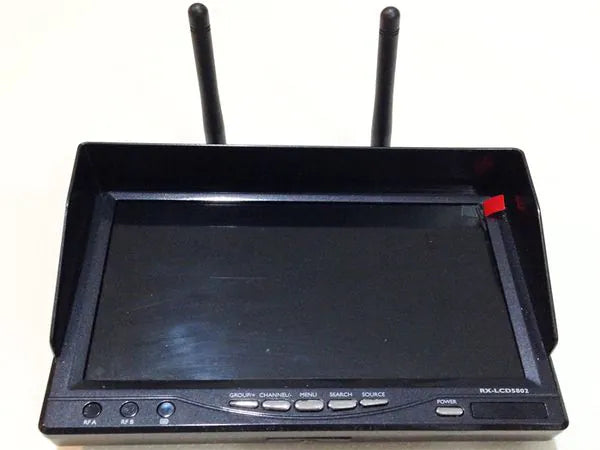

5802D 5.8GHZ FPV 7" DIVERSITY LCD SCREEN RECEIVER MONITOR

Specification:
- Built-in 5.8Ghz Dual diversity receiver automatically for best reception
- Built-in 2CH 5.8Ghz AV output and 1CH AV input
- Built-in high performance Li-POLYMER Battery: 2450mAH/7.4V
- Work status OSD display : RSSI indication ; Battery indicator; Channel indication
- A key to automatic signal search
- Support Chinese and English menu
- Size: 180mm x 120mm x 50mm（Note: Sunshield height: 28mm）
- Working Voltage: DC 7~16V
- Power Consumption: 650 mA @12V
- Builti-in battery version
- Battery charging current : 850mA @12V ( max )
- Working temperature: -10℃~+ 65 ℃

Features:
- Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
- Dual buffered AV outputs
- Can receive 2 different channels at the same time
- Not affect by 2.4GHz R/C Radios
- AV Receiver with Diversity inputs
- Small, light weight, durable
- 4 Bands and total 32 Channels
- Built-in battery , easy to carry and outdoor use
- A key to automatic signal search, Simple operation
- Work status OSD display: Always be aware of the device working condition.

Display Parameters:
- Screen size: 7”
- Screen type: TFT LCD Screen/long life, LED backlight
- Resolution: 800*480
- Brightness: 450cd/m2
- View Angle: 140/120degree (Horizontal/Vertical)
