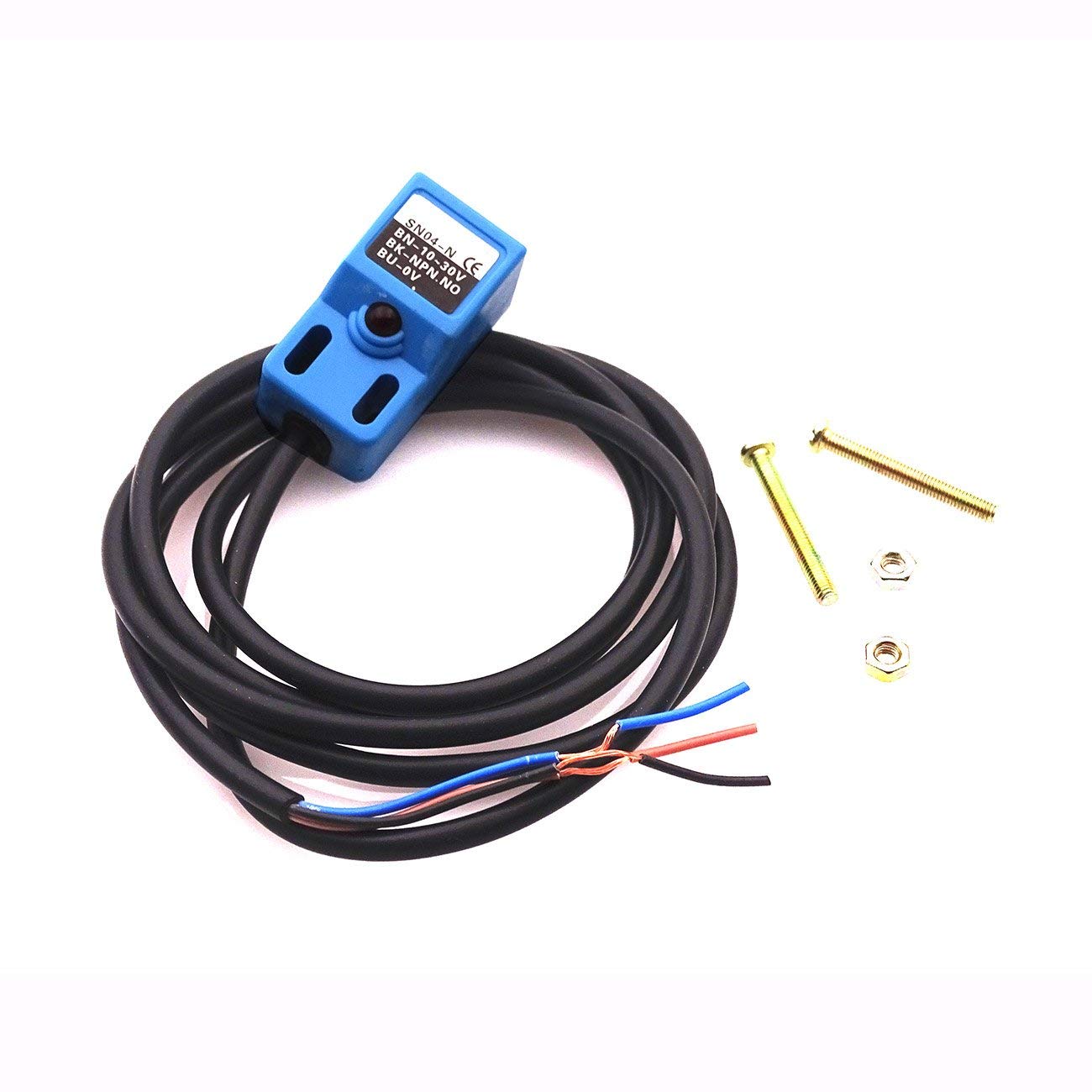

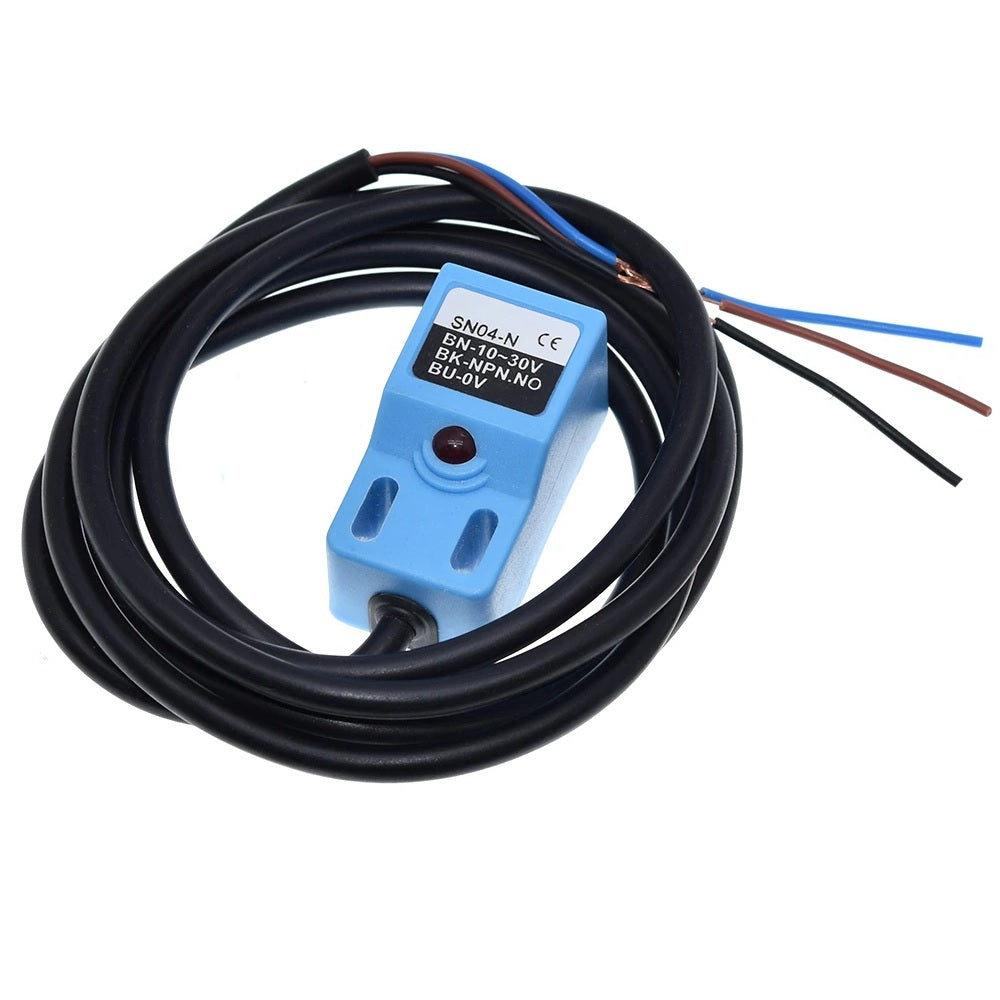

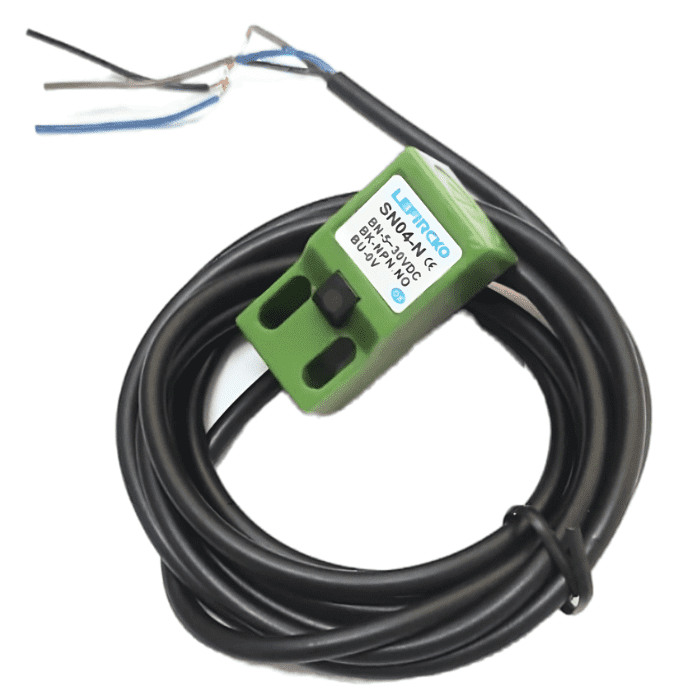

NPN NO Inductive Proximity Sensor Detection Switch DC 5-30V SN04-N 4mm
Subcribe to back in stock notification
All Prices Incuding GST
All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number
Estimated time to pack : 15 Mins.
11 AM- 7 PM
Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha
Same Day Dispatch.
Shipping Charge Flat-70/-
Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
RED- 5-30V DC, BLUE- GROUND, BLACK- NPN NO
Sensing Distance: 4mm
Rated Voltage: 5-30V, Rated Current: 0.4A
Response Frequency: 500Hz
This inductive sensor can detect metallic objects within 4mm and behaves like a switch that connects to a digital input.
The proximity switch is a high-frequency oscillation type, which sends a detection signal quickly, without pressure, no pressure, without a spark, to drive the relay or logic gate. It has high sensitivity, fast frequency response, high repeatability, Short, the output power is large, the anti-jamming performance is good, the working stability is reliable, the service life is long and so on. The switch is filled with resin to make it completely closed, and it has the characteristics of vibration resistance, corrosion resistance and waterproofing.
