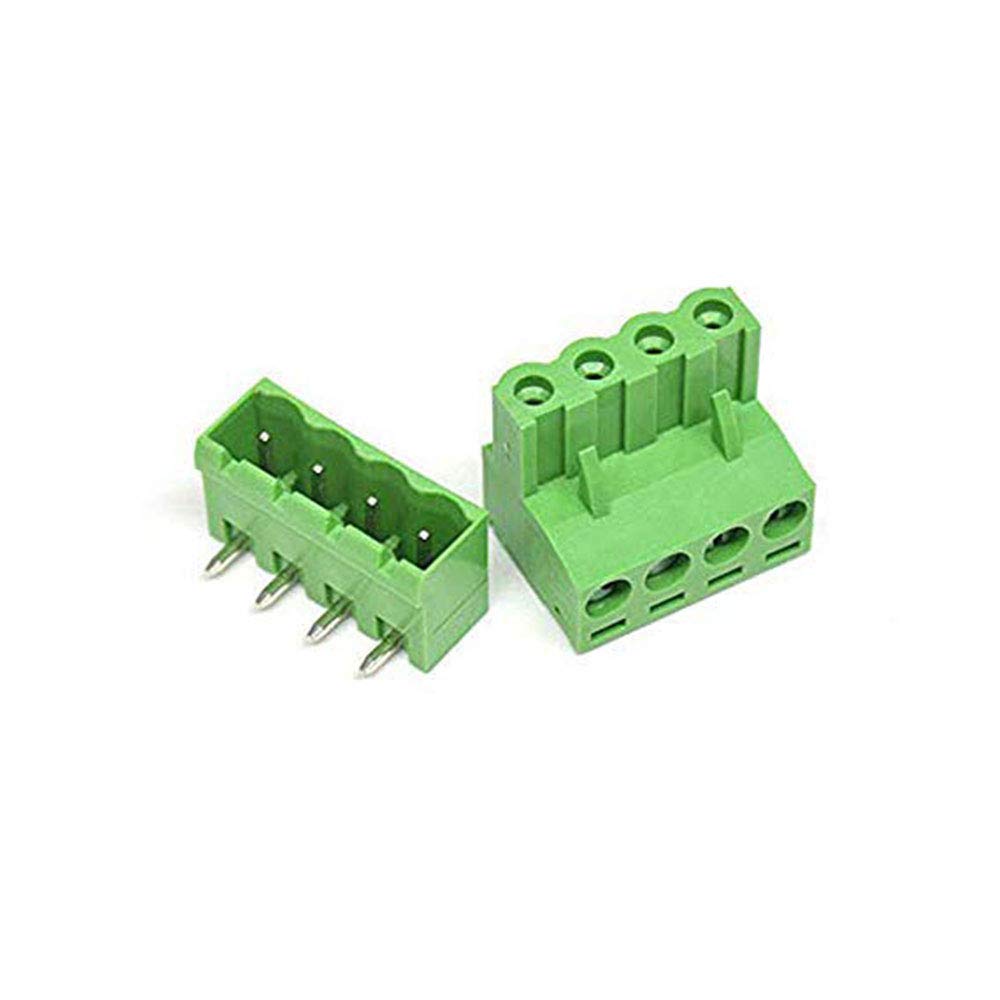

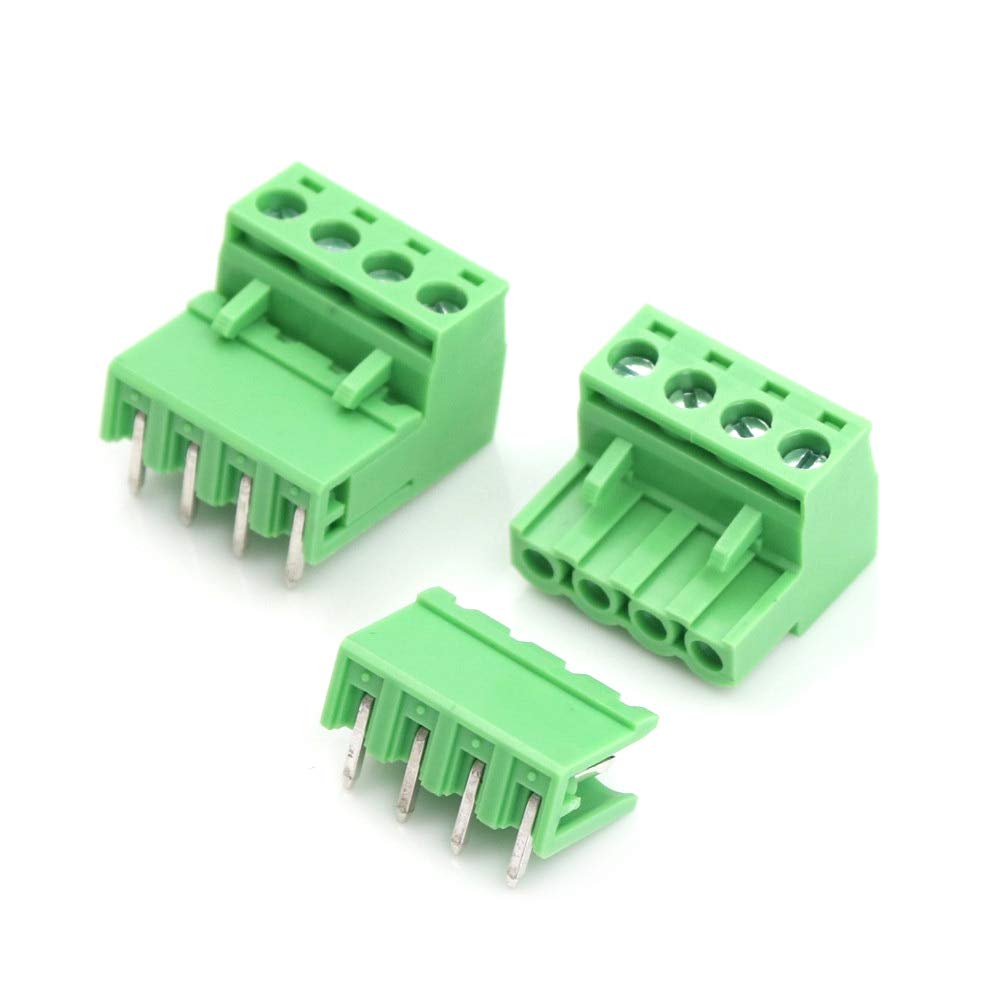

4 Pin Right Angle Male Female Plug-in Screw Terminal Block Connector PBT (1 Pair)
4 Pin Right Angle Male Female Plug-in Screw Terminal Block Connector PBT (1 Pair)
Regular price
Rs. 30.00
Regular price
Sale price
Rs. 30.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
4 Pin Pluggable Screw Terminal Block Connector - Right Angle - 5.08mm Pitch,Standard plug in type screw terminal block with right angle PCB mount male connector,Universal connection for all conductor types.
Specification:
- Maximum rated voltage - 300V
- Maximum rated current - 15A
- Pin spacing - 5.08mm
- Wire gauge - 28-12AWG
- Soldering Temperature - +250℃ for 5seconds
- Insulation - 5000MΩ/1000V
Package Includes:
1x Set of Male + Female Connector (Total 2 units)
