TOF200C - Time of Flight (ToF) Laser Ranging Sensor Module with distance sensor VL53L0X (200cm)
TOF200C - Time of Flight (ToF) Laser Ranging Sensor Module with distance sensor VL53L0X (200cm)
Couldn't load pickup availability
- Range: 3 to 200 cm
- Dead zone: 0 to 3 cm
- Interface: I2C
- Programmable I2C address
- Viewing Angle (FOV): 25°
- 1D gesture detection capability

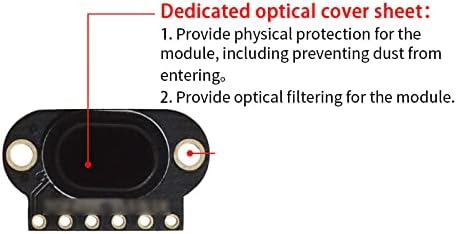

- Protective cover

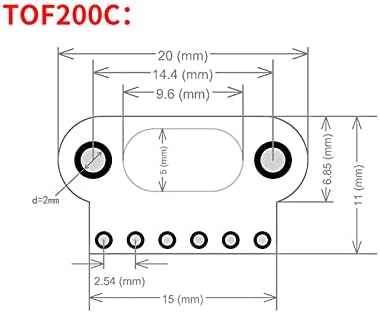

- Two M2 mounting holes
- Power supply: 3 to 5 V
- Current consumption: 40 mA
- Working temperature: -20 to 70°C
Module with ToF distance sensor based on the VL53L0X system. Interacts the SPAD (Single Photon Avalanche Diodes) matrix and FlightSense ™ technology, which allows you to measure the absolute distance regardless of the color and surface of the detected object. Thanks to the application of the IR transmitter emitting light with a wavelength of 940 nm and a set of filters, it offers a range of up to 200 cm with good resistance to interference from ambient light. The sensor has a dead zone ranging from 0 to 3 cm and a detection angle of 25 °. The module also offers the ability to detect 1D gestures. VL53L0 communicates via the I2C interface, and the user has a friendly and easy-to-use API (Application Programming Interface) available in C language. It can be used in applications for detecting the presence of objects and obstacles, both in industrial robots and mobile structures.

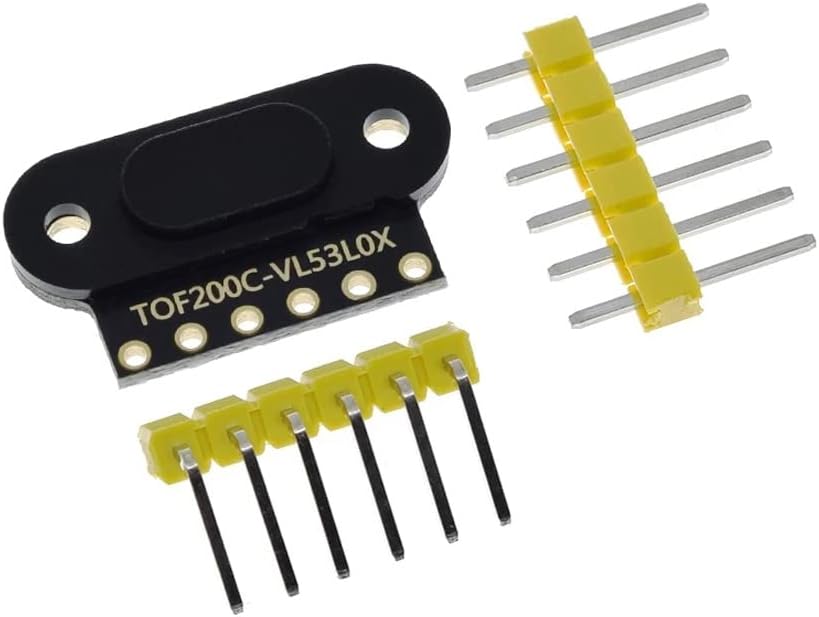

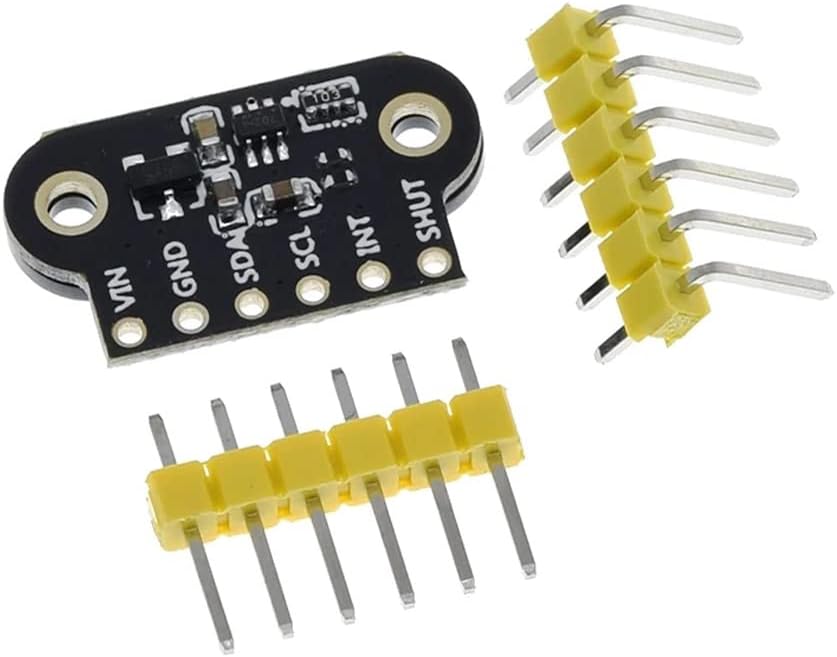

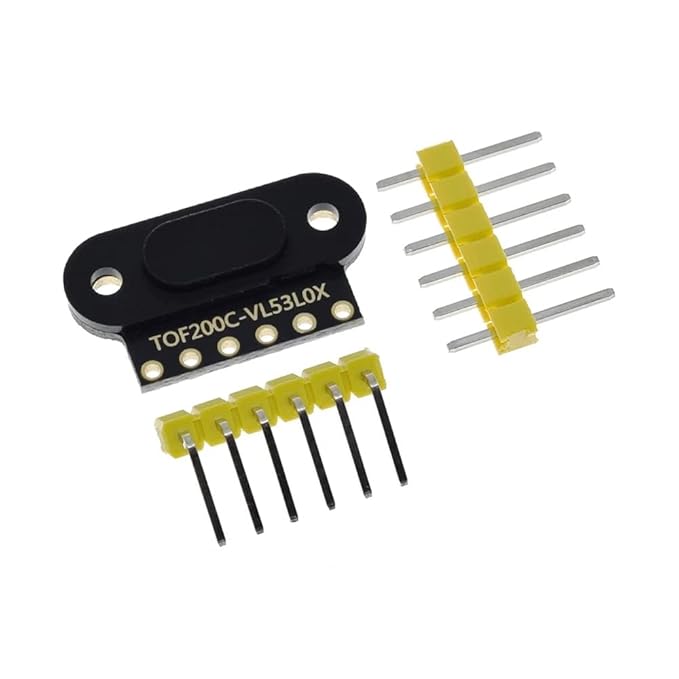

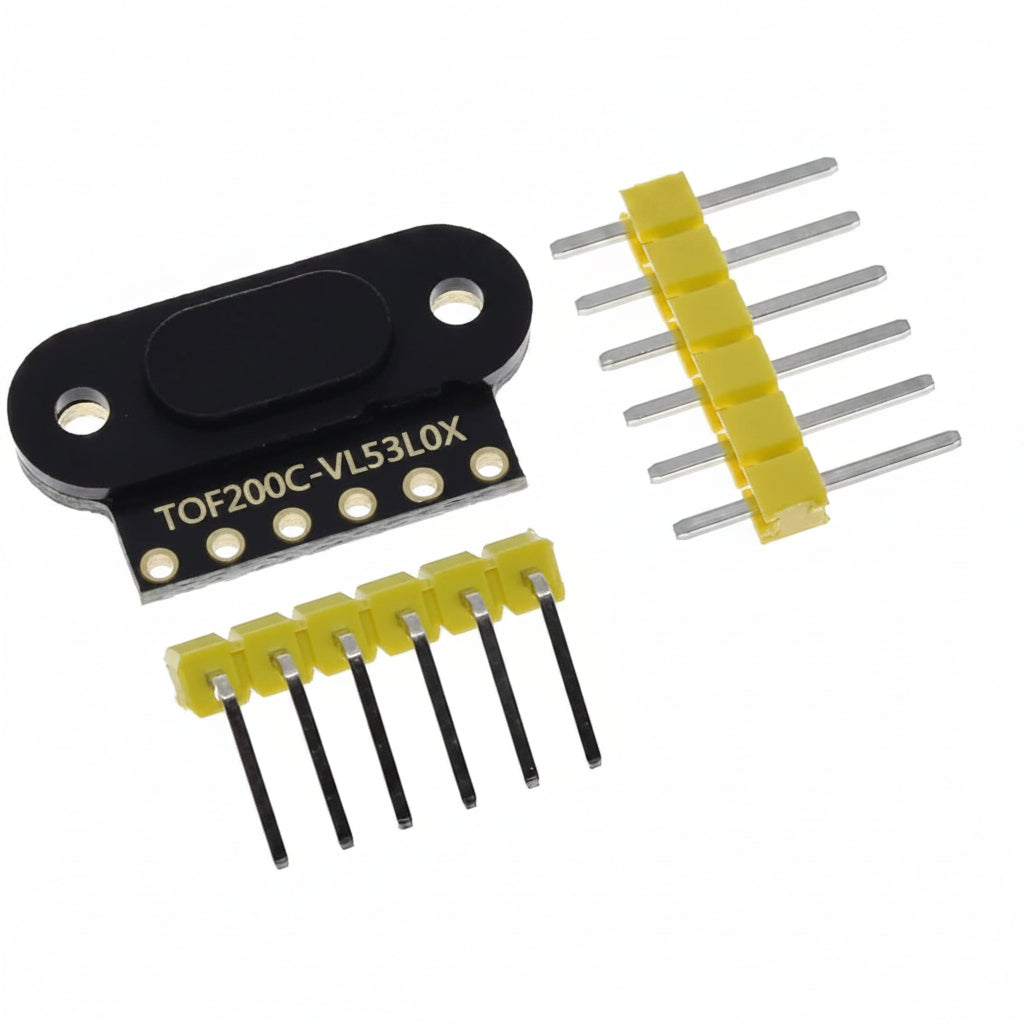

Kit contains
- Module with sensor VL53L0X
- Straight male 6-pin goldpin connector
- Male goldpin connector 6-pin angled
