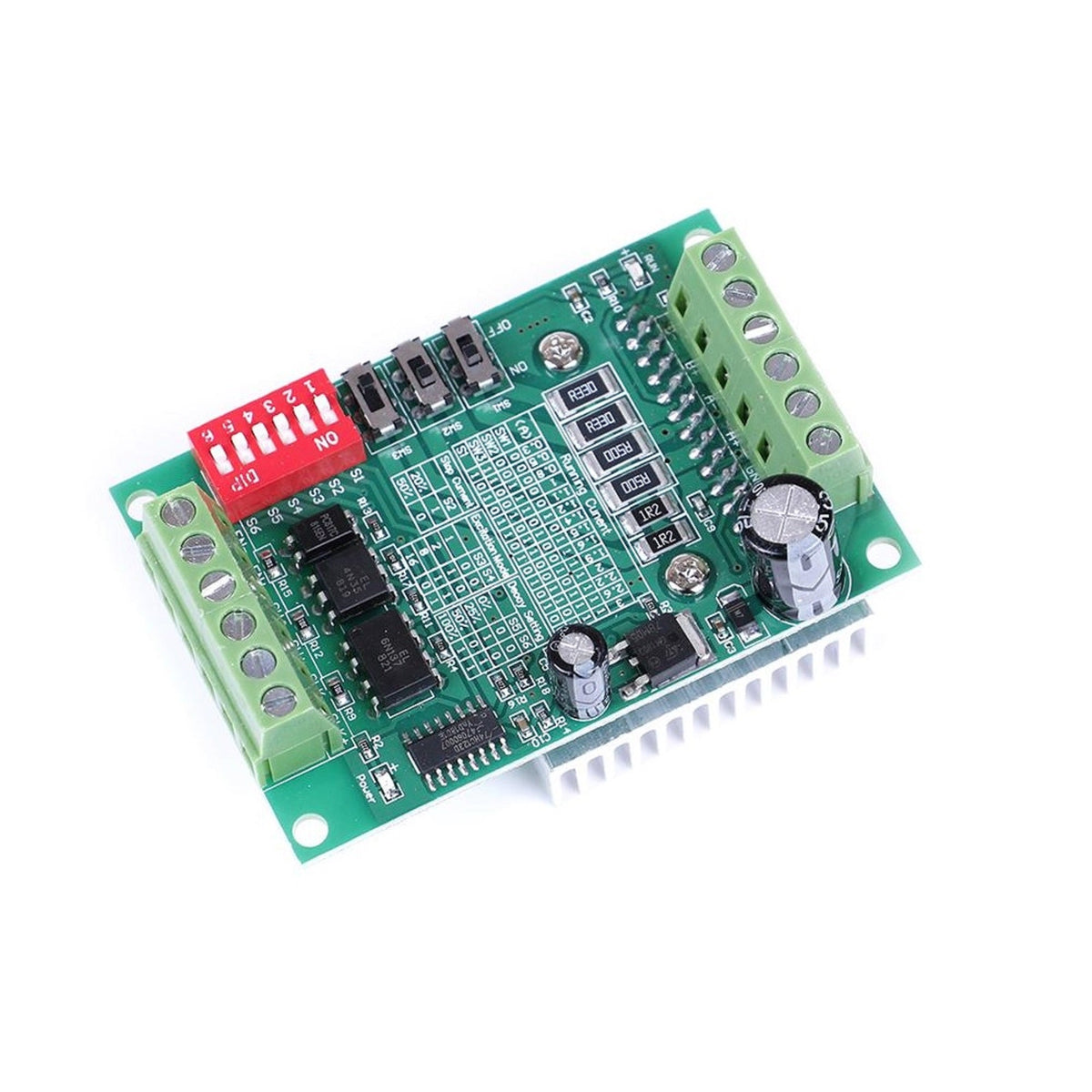

TB6560 Stepper Motor Driver Controller

• Driver Chip: TB6560AHQ
• Operating Voltage: 10-35V
• Nominal Voltage: 24V

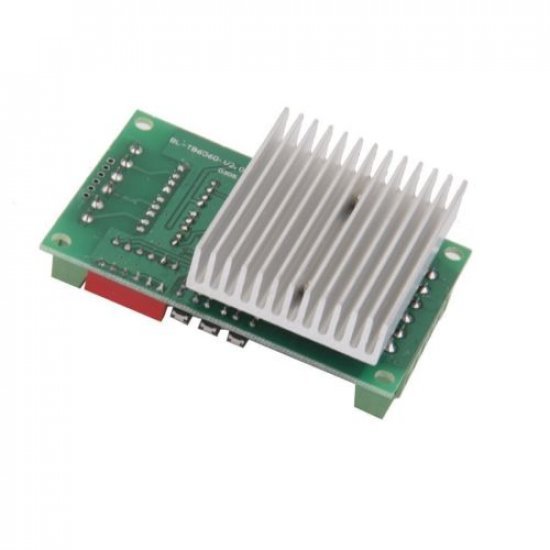

• With the large heat sink to ensure good heat dissipation
• 6N137 high-speed OptoCoupler, to ensure a high speed without step out

Features:

• The TB6560 Driver Board 3A CNC Router Single 1 Axis Controller Stepper Motor driver board is for axis control with Input signal high-speed optocoupler isolation, the large heat sink to ensure good heat dissipation. Stepper motor driver is Semi-flow mode adjustable, semi-flow current adjustable, with a variety of semi-flow model and semi-flow current setting functions.
• It is very easy to use requires no special instructions. The module features Semi-flow mode adjustable, semi-flow current adjustable, not the general design on the market, with a variety of semi-flow model and semi-flow current setting function.
• This stepper motor driver is featuring TB6560AHQ new original chip. The TB6560AHQ has low voltage shutdown, overheating stop and overcurrent protection circuit to ensure optimal performance.

Features :

• Current level by adjustable to meet your various application requirements.
• Automatic semi-flow adjustable.
• Using 6N137 high-speed optical coupling to ensure high speed without losing a step.
• Board printed setup instructions.
• Using a thick fine-toothed radiator, good heat dissipation.
• For 42,57,86 Stepper within 3A  2/4 -phase / 4 wire / 6 wire stepper motor, not fit for more than 3A stepper motor.
• Excitation Mode: synchronizing, half step, 1/8 step, 1/16 step, a maximum of 16 segments.
• Automatic half-decay.

Package Content:

1 x TB6560 Stepper Motor Driver Controller
