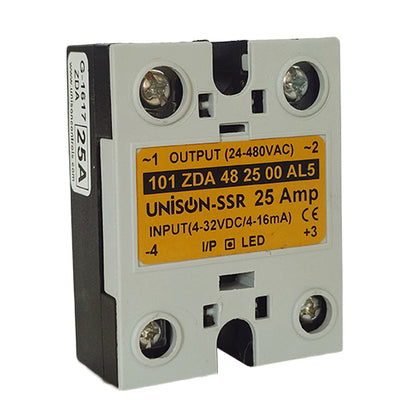

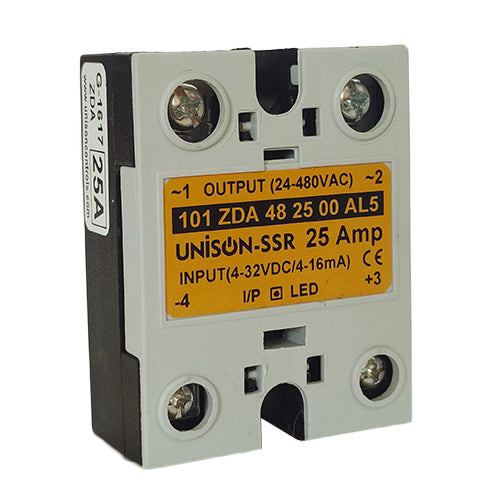

Solid State Relay UNISON SSR 25AMP UNI 101 ZDA 48 25 00 AL5, DC TO AC
Solid State Relay UNISON SSR 25AMP UNI 101 ZDA 48 25 00 AL5, DC TO AC
Regular price
Rs. 499.00
Regular price
Sale price
Rs. 499.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption

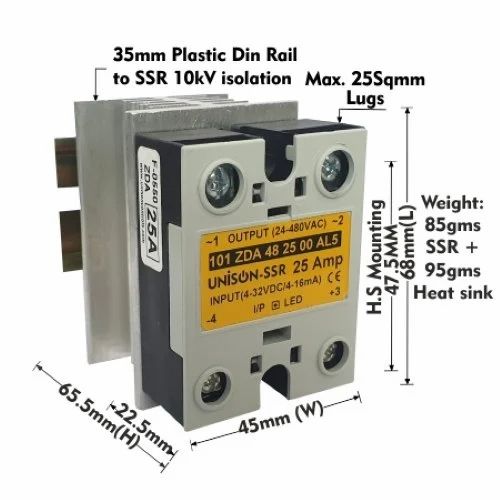

UNI 101 ZDA 48 25 00 AL5 + G-68 HEAT SINK + DIN RAIL
25 Amp DC to AC Solid State Relay, Zero cross over SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink
- Input : 4-32VDC/4-16mA
- Input Green LED Indication
- Output : 24-480(47-63 Hz), 25Amp
- PIV : 800, I²T : 450A²S for 9.6mS
- Zero Cross Over SSR design
- Body insulation : 6kV for 1min
- I/P. to O/P. insulation : 6kV for 1min
- Long life cycle Up to 10¹¹ cycles
- Inbuilt surge voltage protection of 2700Vrms
| 101 MODEL / HEATSINK | 25 AMP SSR LOAD CURRENT @ 40°C |
| C-56 | 14 Amp |
| G-68 | 18 Amp |
| T-45 | 20 Amp |
| B-48 | 25 Amp |
| T-90 | 24 Amp + 24 Amp |
