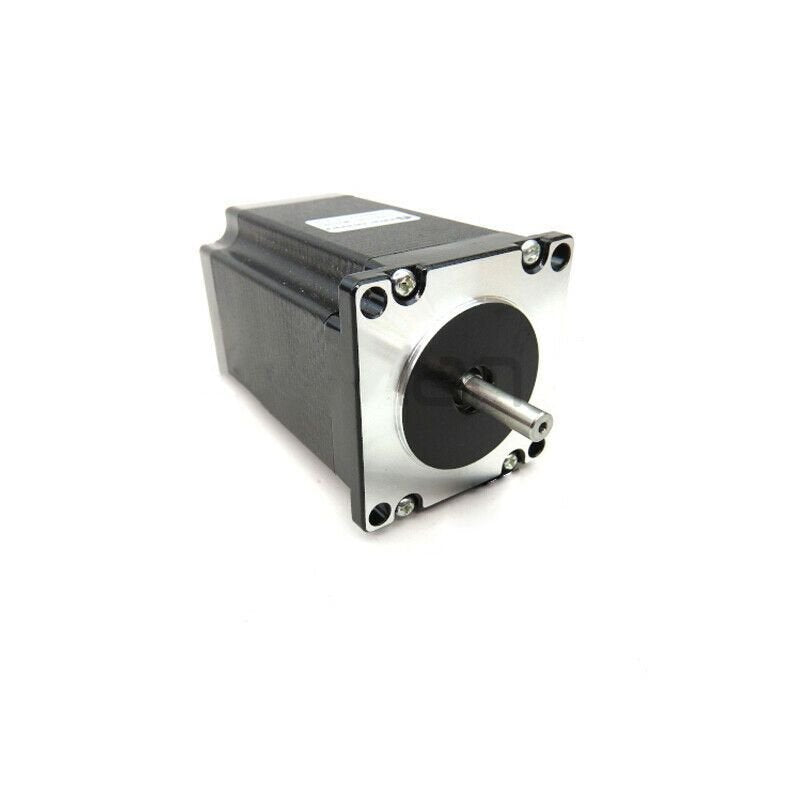

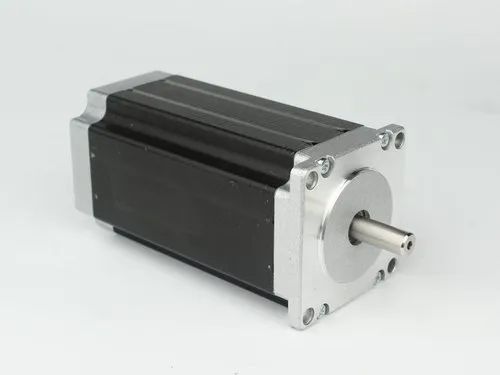

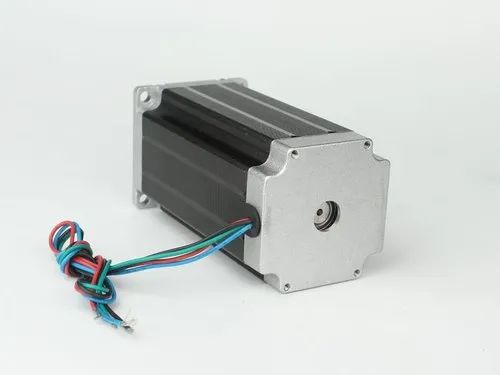

NEMA 23 JK57HS82-3004 22 kg-cm Stepper Motor
NEMA 23 JK57HS82-3004 22 kg-cm Stepper Motor
Regular price
Rs. 2,499.00
Regular price
Sale price
Rs. 2,499.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Specifications:
- Model: JK57HS82-3004
- Motor type: NEMA 23 stepper motor
- Motor size: 57 x 57 mm (82 mm Lenghth excuding Shaft)
- Shaft: 8mm
- Torque: 22 kgf.cm
- Rated current: 3 A
- Rated voltage: 3.6 V
- Angle of pitch: 1.8 degree’s
- Number of phases: 2
- Resistance per phase: 1.2 ohms
- Inductance per phase: 3.2 mH
- Weight: 1122g
The Nema 23 JK57HS82-3004 stepper motor is a high-quality, high-performance motor designed for applications that demand precision and motion control. With a force of 22kgf and current of 3A, this motor is capable of providing enough torque to move heavy loads with ease. It is compatible with standard stepper motor controllers and can be used in a wide variety of applications including CNC machines, 3D printers, robots and industrial automation equipment. With its rugged construction and proven reliability, the JK57HS82-3004 Nema 23 stepper motor is an ideal choice for anyone looking for a high quality motor and reliable performance.
