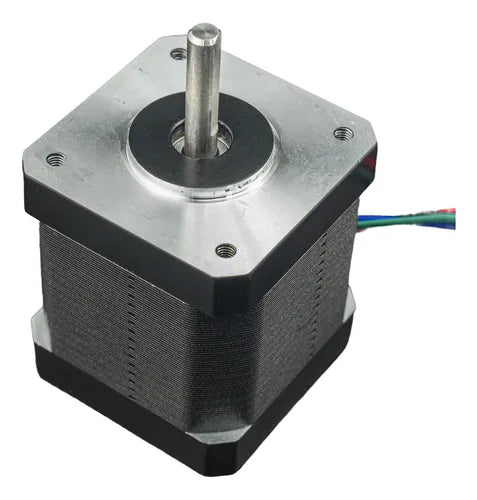

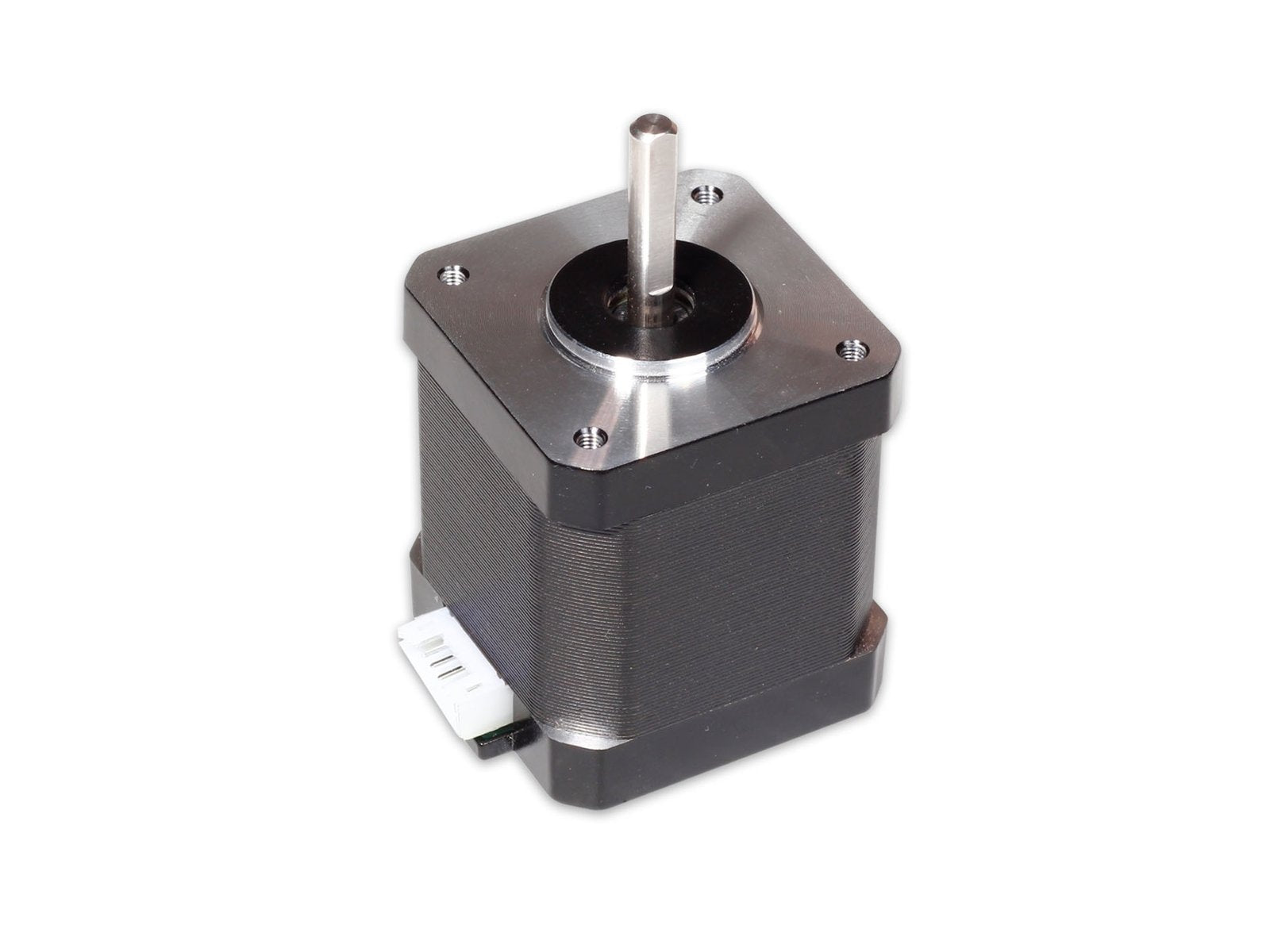

NEMA 17 Stepper Motor NEMA17 5.6Kgcm Torque
NEMA 17 Stepper Motor NEMA17 5.6Kgcm Torque
Regular price
Rs. 799.00
Regular price
Sale price
Rs. 799.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
Features:
- Step Angle : 1.8 Degree
- Number of Phase: 2
- Rated Voltage: 2.8V
- Rated Current: 1.68A
- Resistance per phase: 1.6E
- Inductance per phase: 4.5mH
- Holding Torque: 5.6 kgcm
- Weight:300 grams
- Length without shaft: 48mm
- Shaft Length: 24mm
- Shaft Type : D-shaft
- Width: 42.3mm
Wiring Details:
- A+ = Yellow
- A- = Blue
- B+ = Red
- B- = Green
