1. Type Enclosed Switching Single Output
2. Output Power: 600W
3. Series LM600-12B
4. Part Number LM600-12B24
5. Mount Enclosed

LM600-12B24 series is one of Mornsun’s enclosed AC-DC switching power supplies. It features AC input and at the same time accepts DC input voltage, is cost-effective, has low no-load power consumption, high efficiency, and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, and GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home, etc

Features:

1. Input voltage Range: 176 – 264VACor 240- 370VDC
2. Accepts AC or DC input (dual-use of the same terminal)
3. Operating ambient temperature range: -20℃to+60℃
4. LED indicator for power on
5. Operating up to 5000m altitude
6. Over-temperature protection, output short circuit, over-current, over-voltage protection
7. Built-in DC fan
8. Remote sense function.

Package Includes:

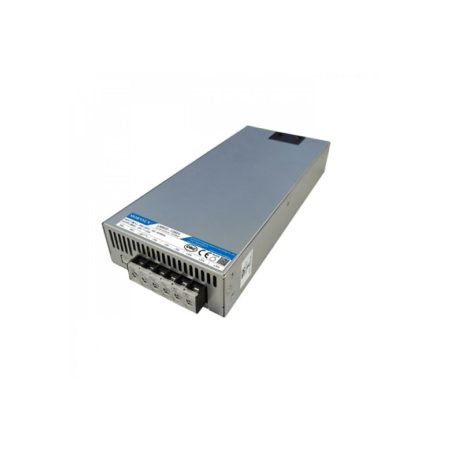

1 x Mornsun LM600-12B24 – 24V 25A – 600 AC/DC Enclosed Single Output SMPS
