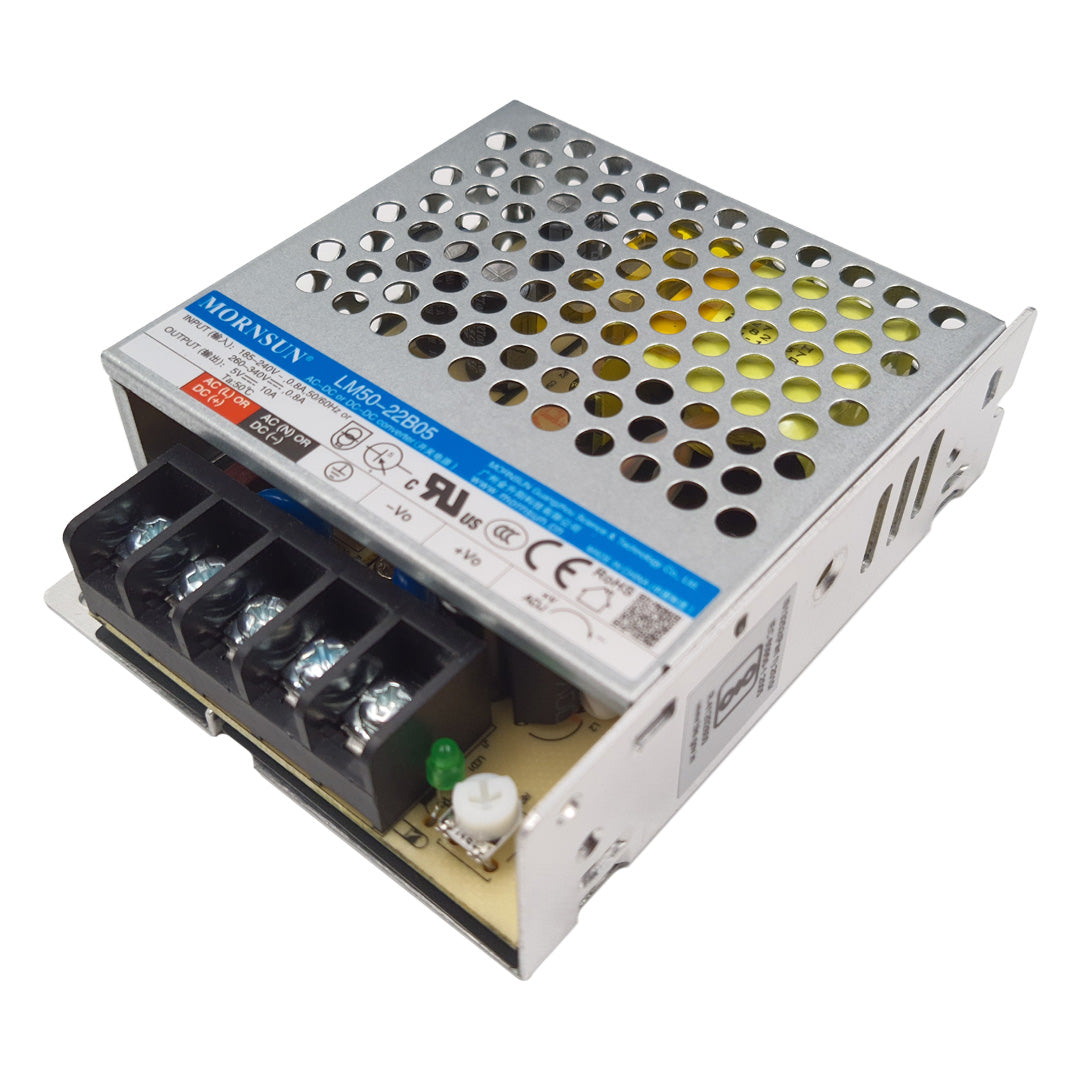

Mornsun LM50-22B05– 5V 10A 50W SMPS AC to DC Switching Single Output Power Supply
Mornsun LM50-22B05– 5V 10A 50W SMPS AC to DC Switching Single Output Power Supply
Regular price
Rs. 1,169.00
Regular price
Sale price
Rs. 1,169.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Manufacturer Product No: LM50-22B05
- Manufacturer: Mornsun
- Input Voltage Range: 100V ~ 277VAC
- Output Voltage: 5V
- Output Current: 10A
Features:
- 85 – 305VAC or 100 – 430VDC input voltage
- Accepts AC or DC input (dual-use of sameterminal)
- Operating ambient temperature range: -30℃to+70℃
- Up to 88% efficiency
- No-load power consumption < 0.5W
- High I/O isolation test voltage up to 4000VAC
- Output short circuit, over-current, over-voltageprotection
- Over-voltage class Ⅲ(designed to meet EN61558)
- Operating altitude up to 5000m
Features/Specs:
- Manufacturer Product No:LM50-23B05R2
- Manufacturer: Mornsun America, LLC
- Series: LM50-22B05
- Type: Linear Regulator Replacement
- Number of Outputs: 1
- Input Voltage Range: 10VAC ~ 277VAC
- Output Voltage: 5V
- Output Current: 10A
- Power (Watts): 50 W
- Operating Temperature: -30°C ~ 70°C
- Efficiency: 88%
-
Size / Dimension
- Length: 98 mm
- Width: 82 mm
- Height: 30 mm
Applications:
- Digital Circuit
- Automation
- Power Supply
Package Includes:
- 1 x Mornsun LM50-23B05 – 5V 10A 50W SMPS AC to DC Switching Single Output Power Supply
Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
