• Warranty- 2 Years
• Manufacturer Product No: LM15-23B12
• Manufacturer: Mornsun
• Input Voltage Range: 100V ~ 277VAC
• Output Voltage: 12V
• Output Current: 1.3A

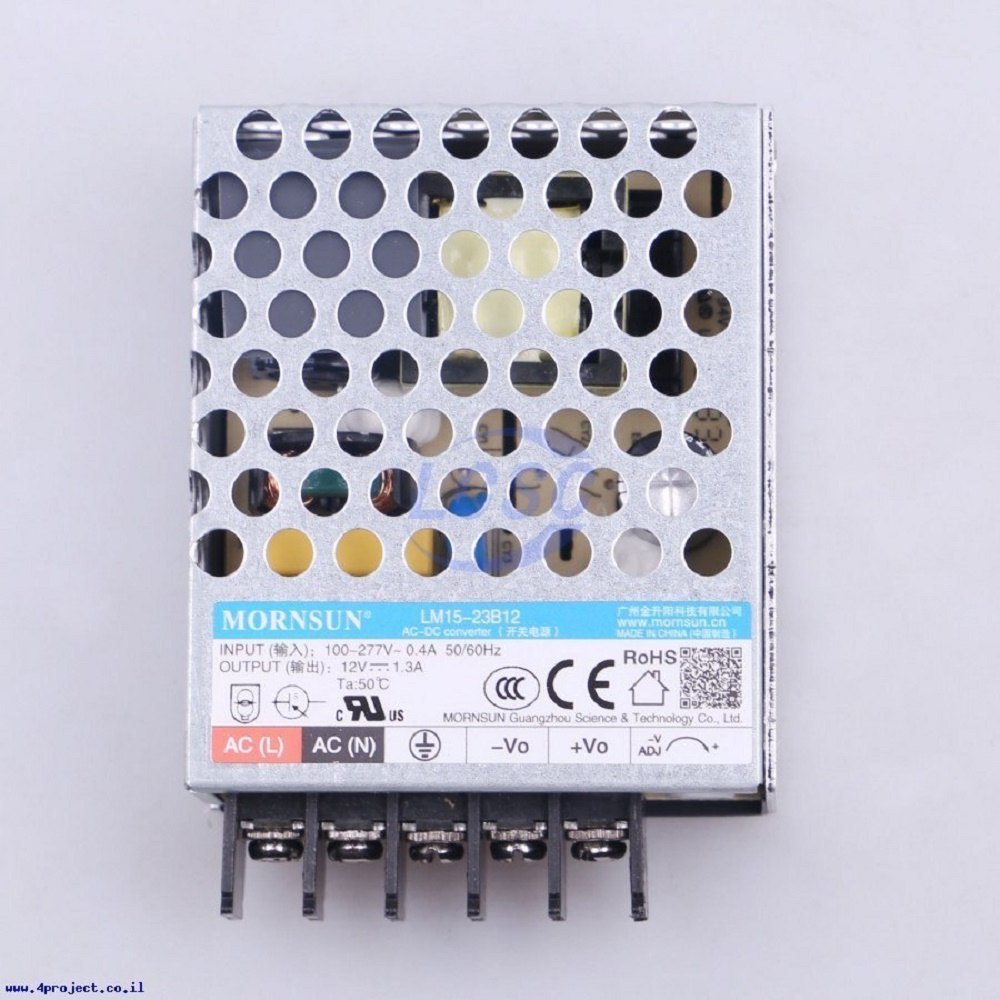

This is Mornsun LM15-23B12 – 12V/1.3A – 15.6W AC/DC Enclosed Single Output SMPS. LM15-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

Features:

• 85 – 305VAC or 100 – 430VDC input voltage
• Accepts AC or DC input (dual-use of sameterminal)
• Operating ambient temperature range: -30℃to+70℃
• Up to 88% efficiency
• No-load power consumption < 0.5W
• High I/O isolation test voltage up to 4000VAC
• Output short circuit, over-current, over-voltageprotection
• Over-voltage class Ⅲ(designed to meet EN61558)
• Operating altitude up to 5000m

Features/Specs:

• Manufacturer Product No: LM15-23B12
• Manufacturer: Mornsun America, LLC
• Series: LM15-23B12
• Type: Linear Regulator Replacement
• Number of Outputs: 1
• Input Voltage Range: 10VAC ~ 277VAC
• Output Voltage: 12V
• Output Current: 1.3A
• Power (Watts): 15.6 W
• Operating Temperature: -30°C ~ 70°C
• Efficiency: 88%

Size / Dimension

• Length: 75 mm
• Width: 55 mm
• Height: 25 mm

Applications:

• Digital Circuit
• Automation
• Power Supply

Datasheet: LM15-23B12

Package Includes:

• 1 x Mornsun LM15-23B12 – 12V 1.3A 15.6W  SMPS AC to DC Switching Single Output Power Supply


Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
