1. SX1262 LoRa module
2. 74HC125V: voltage level translator
3. CP2102: USB TO UART converter
4. Working bands: 850.125 ~ 930.125MHz
5. Receive Sensitivity: 147dBm@0.3Kbps (On-air)
6. Interface: UART
7. Range: 5KM(Sunny day; open area; Antenna: AUX 5dBi, Height 2.5m; Air Speed: 2.4kbps)

What’s on Board:

• SX1262 LoRa module
• 74HC125V: voltage level translator
• CP2102: USB TO UART converter
• Raspberry Pi GPIO connector: for connecting with Raspberry Pi
• USB TO UART port
• UART header: for connecting host boards like STM32/Arduino
• SMA antenna connector
• IPEX antenna connector
• Indicators:
  • RXD/TXD: UART RX/TX indicator
  • AUX: auxiliary indicator
  • PWR: power indicator
• UART selection jumpers
  • A: control the LoRa module through USB TO UART
  • B: control the LoRa module through Raspberry Pi
  • C: access Raspberry Pi through USB TO UART
• LoRa mode selection jumpers

Features:

1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
2. Onboard CP2102 USB TO UART converter, for serial debugging
3. Brings the UART control interface, for connecting host boards like Arduino/STM32
4. 4x LED indicators, easy to check the module status
5. LoRa spread spectrum modulation technology, up to 81 available signal channel, longer communication distance, more robust to interference
6. Auto multi-level repeating, suit for ultra-long-range communication, allows multi-network on the same region
7. Low power consumption features like deep sleeping and Wake on Radio, ideal for battery-powered applications
8. Customizable communication key which won’t be retrieved greatly improves the security of user data
9. LBT support, monitoring the signal channel noise before transmitting, greatly improves the success ratio under an extreme environment
10. RSSI signal intensity indicating support, for evaluating signal quality, tuning the network
11. Wireless parameter configuration, by sending wireless command/data packet, remotely configure or retrieve the module parameter
12. Supports fixed-point transmission, broadcast, signal channel monitor

Package Includes:

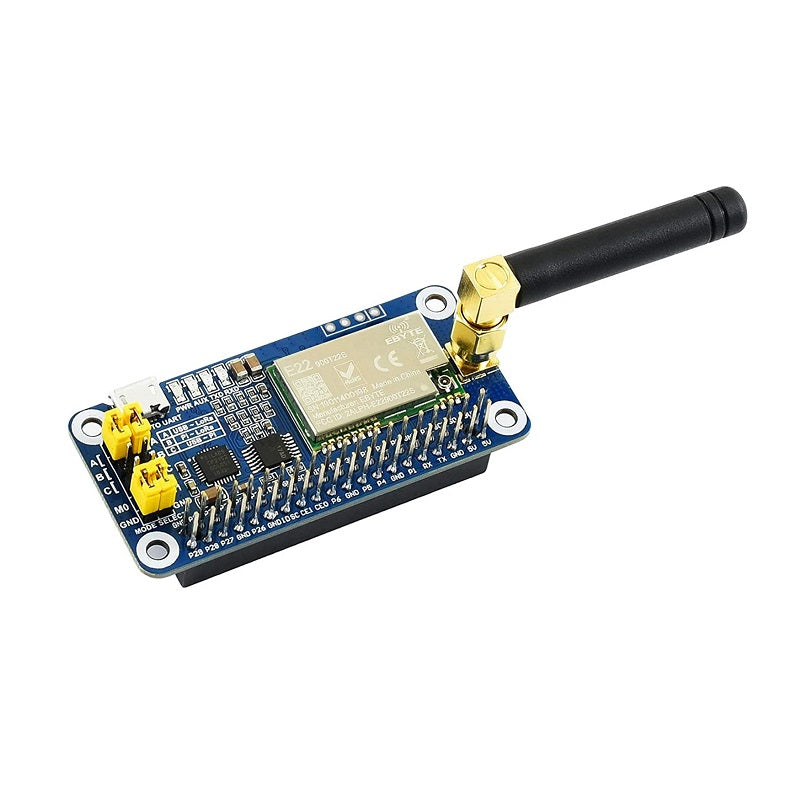

• 1 x SX1262 915M LoRa HAT
• 1 x USB type A plug to micro plug cable
• 1 x 915MHz antenna
