LILYGO TTGO T-Higrow ESP32wroom WiFi And Bluetooth Battery And DHT11 Soil Temperature And Humidity Photometric Electrolyte Sensor
LILYGO TTGO T-Higrow ESP32wroom WiFi And Bluetooth Battery And DHT11 Soil Temperature And Humidity Photometric Electrolyte Sensor
Couldn't load pickup availability
- Working current:150 mA
- Sleep current: 220 uA
- Working temperature range:-40℃ ~ +85℃
- Power Supply Input:USB 5V/1A
- Charging current:500mA
- Battery Input:3.7-4.2V
- Battery:3.7V lithium battery

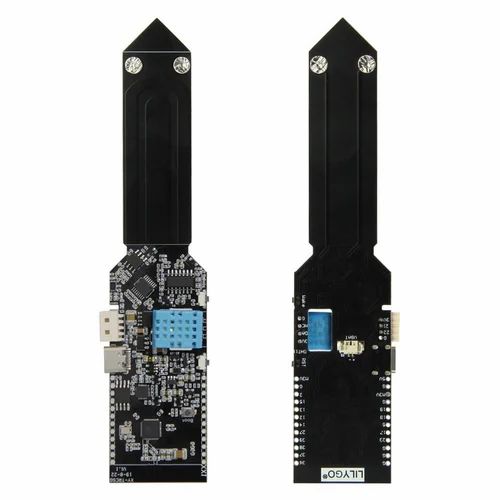

TTGO T-Higrow Esp32Wroom Introduction

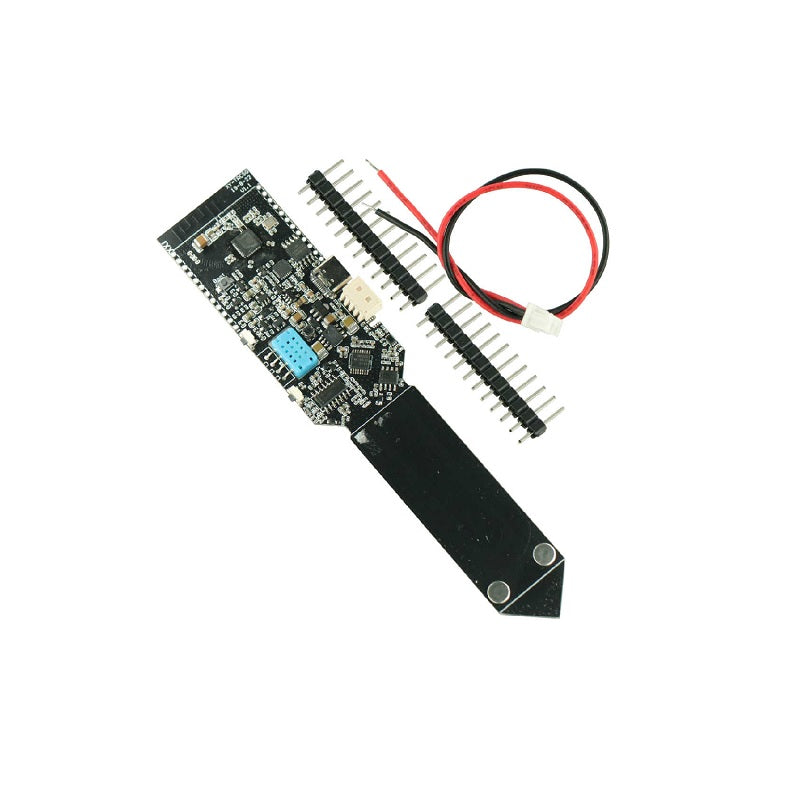

This product comes with Wifi Bluetooth Humidity Photometric Electrolyte Sensor Unsoldered. The capacitive soil moisture sensor differs from most of the resistive sensors on the market, using the capacitive sensing principle to detect soil moisture. It avoids the problem that the resistance sensor is easy to corrode and greatly prolongs its working life.S18B20 waterproof temperature sensor is used for this product and t-watch with the t-grove interface. For example, it can be used to test the temperature and humidity of flowerpot soil and environment, as well as the water temperature of fish tanks when raising fish.
- This capacitive soil moisture sensor differs from most of the resistive sensors on the market, using the capacitive sensing principle to detect soil moisture.
- It avoids the problem that the resistance sensor is easy to corrode and greatly prolongs its working life.
Note:
- Since BME280 already includes temperature and humidity sensors, it already includes the function of DHT11, we have removed the DHT11 sensor on the BME280 version to reduce costs.
Specifications
| MCU | ESP32 chip |
| FLASH | 4MB |
| Wi-Fi | 802.11 b/g/n |
| Xtensa dual-core 32-bit LX6 microprocessor |
| Bluetooth | BLE V4.2 |
| Onboard | Reset Button + Custom Button IO35 + ABS material shell + Jst 2pin 1.25mm connector |
| Version Optional | DHT11/ BME280 Version |
| Digital 16bit Ambient Light Sensor | SDA: IO25; SCL: IO26 |
| IC Name | BH1750 |
| Interface | I2C bus |
| Wide range and Highest resolution(1 – 65535 lx) 50Hz/ 60Hz Light noise reject-functionButton: IO0Wake up : IO35ResetUSB to TTL: CP2104Modular interface:UART、SPI、SDIO、I2C、LED PWM、TV PWM、I2S、IRGPIO、capacitor touch sensor、ADC、DACLNA pre-amplifier
On-board clock: 40MHz crystal oscillator Temperature and humidity sensor DHT11 Reserved extension interface:21~22 Working current: About 150 mA Sleep current: About 220 uA Working temperature range: -40℃ ~ +85℃ Size&Weight:155.04358.19mm(13.65g) |
Power Supply Specifications
Power Supply Input: USB 5V/1A
Charging current:500mA
Battery Input: 3.7-4.2V
Battery:3.7V lithium battery
Charge IC: TP4054
JST Connector:2Pin 1.25mm
USB: Type-C
Wi-Fi
Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (ESP32 chip)
Protocol:802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval
Frequency range:2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power:22dBm
Communication distance:300m
Bluetooth
Protocol: Meet Bluetooth v4.2BR/EDR and BLE standard
Radiofrequency:With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency CVSD&SBC audio frequency
Software specification
Wi-Fi Mode:Station/SoftAP/SoftAP+Station/P2P
Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type: AES/RSA/ECC/SHA
Firmware upgrade: UART download/OTA（Through network/host to download and write firmware）
Software Development: Support cloud server development /SDK for user firmware development
Networking protocol: IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User Configuration: AT + Instruction set, cloud server, android/ios app
OS: FreeRTOS
Main function
- Soil Fertility detection
- Soil moisture detection
- Light intensity detection
- Ambient temperature and humidity 6. USB+200mA battery
- Low power sleep
