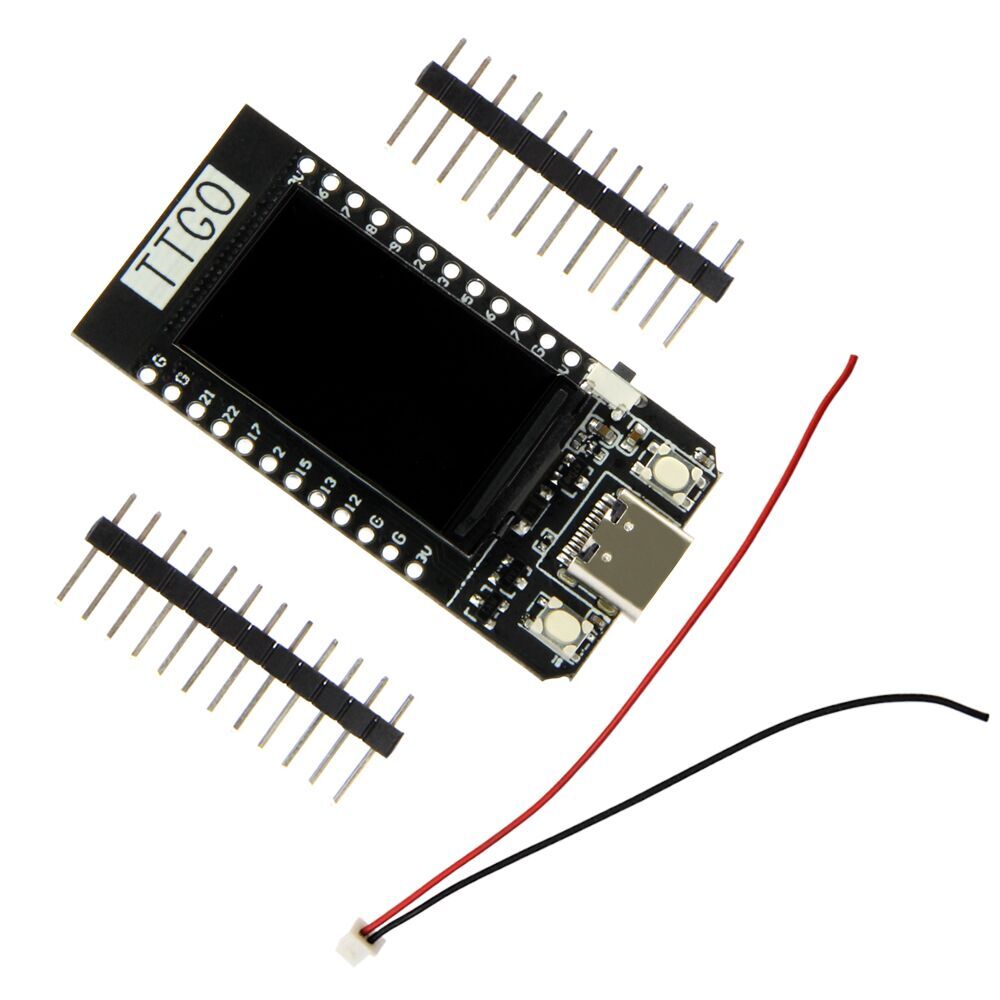

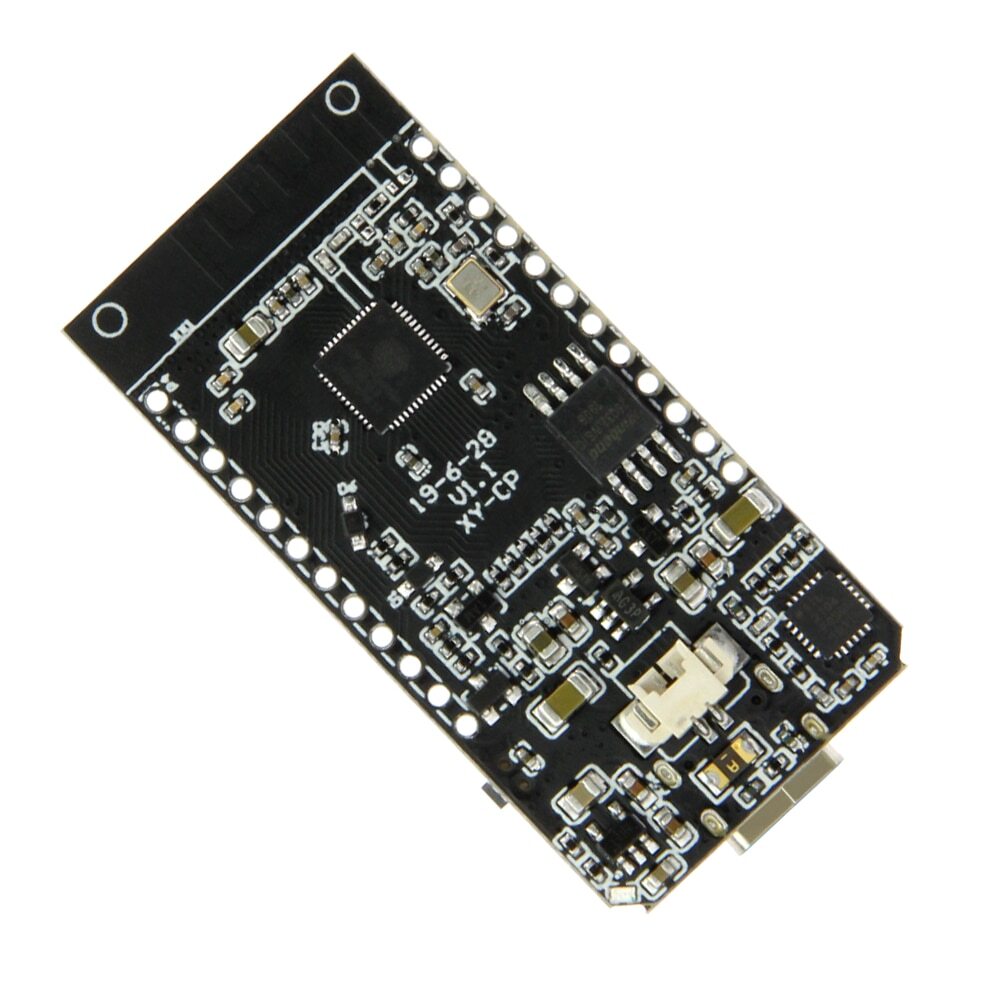

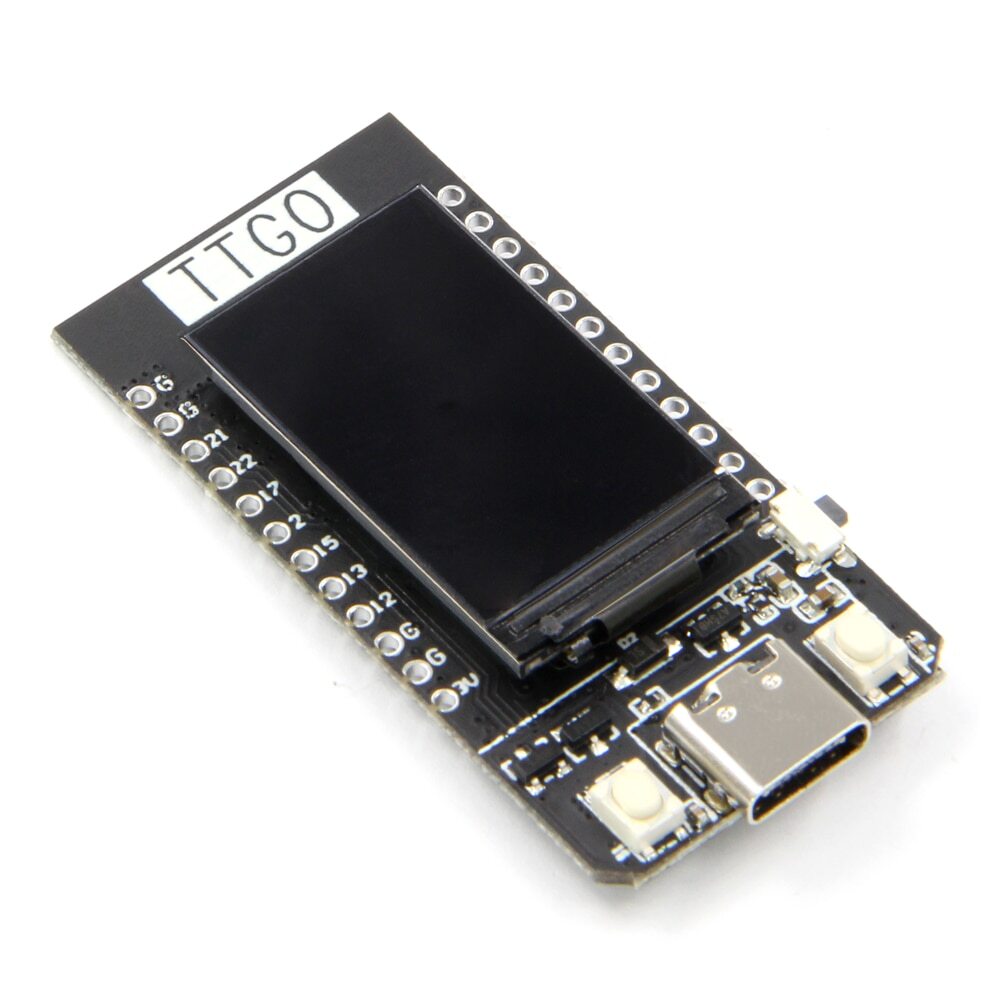

LILYGO TTGO T-Display ESP32 Development Board with 1.14inch LCD (Q125)
LILYGO TTGO T-Display ESP32 Development Board with 1.14inch LCD (Q125)
Regular price
Rs. 1,249.00
Regular price
Sale price
Rs. 1,249.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
LILYGO® TTGO T-Display ESP32 WiFi And Bluetooth Module Development Board 1.14 Inch LCD Control Board - 16MB
SPECIFICATIONS
- Chipset ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
- Modular Interface UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, ADC, capacitor touch sensor, DACLNA pre-amplifier
- Display IPS ST7789V 1.14 Inch
- Operating Voltage 2.7V to 4.2V @ 67mA
- Power Supply Type C ~ 5V @ 1A
- Wi-Fi FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
- WiFi Frequency range 2.4GHz ~ 2.5GHz
- Network Protocol IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
- Firmware Upgrade UART download/OTA
- Dimensions 51.52 * 25.04 * 8.54mm
