Specifications:

• Adjustable Sensitivity, External GND.
• Detect Ambient Humidity.
• Provided with Fixed Bolt Hole, Convenient to Install.
• Power Indicator Light & Digital Output Indication Lamp.
• Using LM393 Chip for Stable Work.
• DO Small Digital Outputs Interface (0 & 1).
• Adjustable trigger level from preset.
• LEDs indicating output and power.
• Rated Voltage (V):   3.3 to 5
• IC Chip    HL-01
• Operating Current (mA):    15mA
• Humidity Range    20 ~ 95%RH
• Output   Digital 0V or 5V,

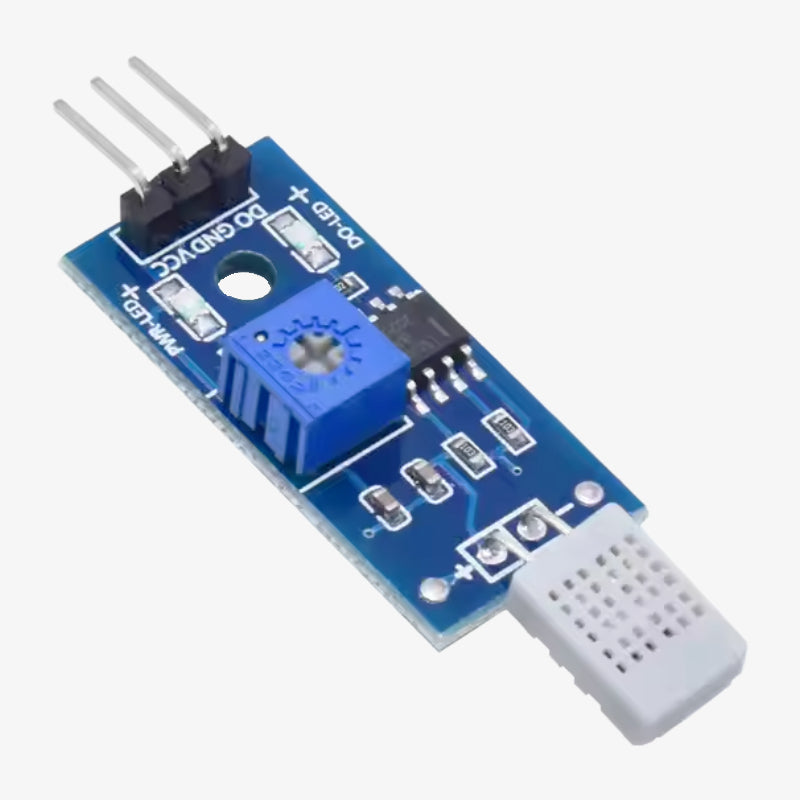

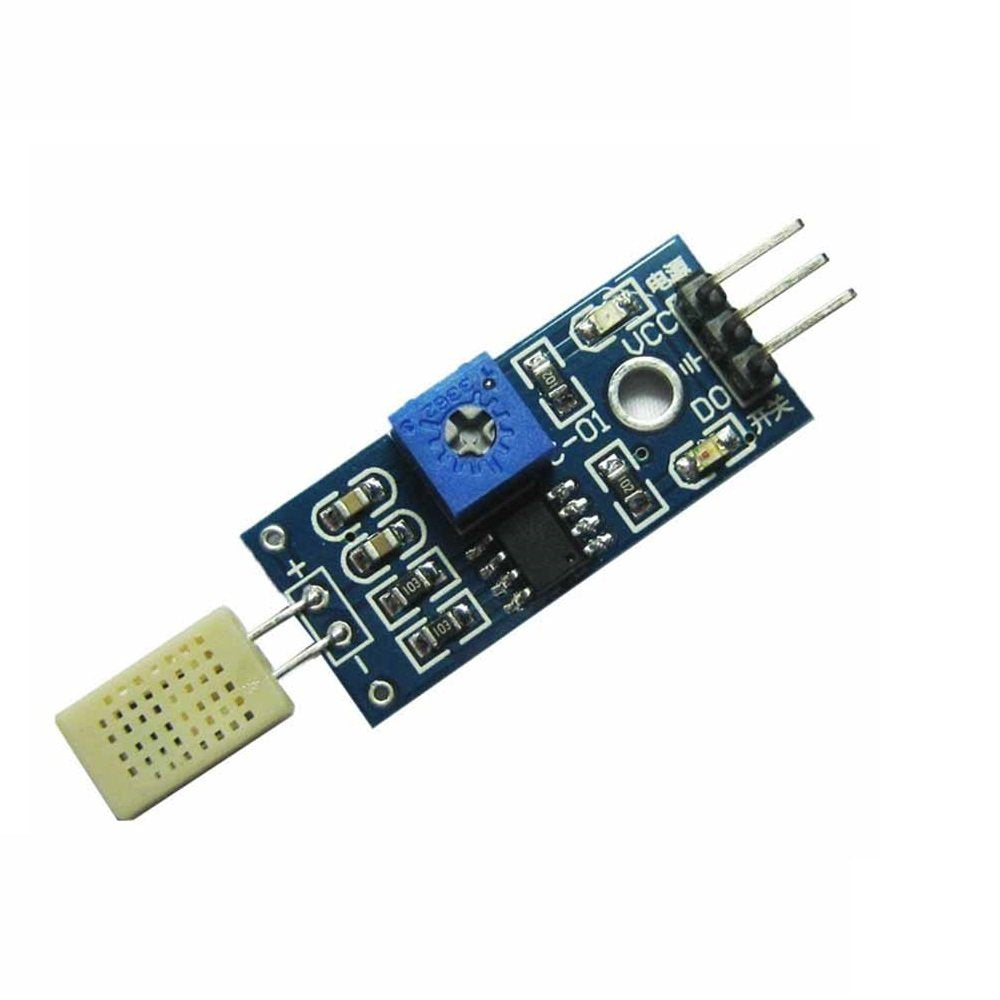

Using high-quality HR202 humidity sensor. The comparator output signal is clean, good waveform, driving ability, more than 15mA

The humidity sensor module is sensitive to environmental humidity, generally used to detect ambient humidity by adjusting the potentiometer, for detecting the humidity can change the threshold ( i.e. the humidity control), such as the need to control the ambient humidity of 60% ,then the corresponding module is transferred to the green light and humidity environment , DO high power output when flat, humidity values below this setting, high output, the green light does not shine

DO output can be directly connected to the microcontroller through the microcontroller to detect high and low, thereby detecting the humidity changes in the environment.

DO output of the relay module can directly drive the shop, which can form a humidity switch, control-related equipment to work in the right environment.

Small plates AO analog output modules can be connected OUR AD through the AD converter, you can get a more accurate numerical ambient humidity With the screw holes of 3mm, easy fixed installation.
