Feature
Ublox M9N GNSS Receiver
Accurate Positioning
Fast Navigation Update Rate
IST8310 Compass
High-gain 25*25*4mm antenna
Internal Buzzer, Safety switch
Ultra Bright UI RGB LED

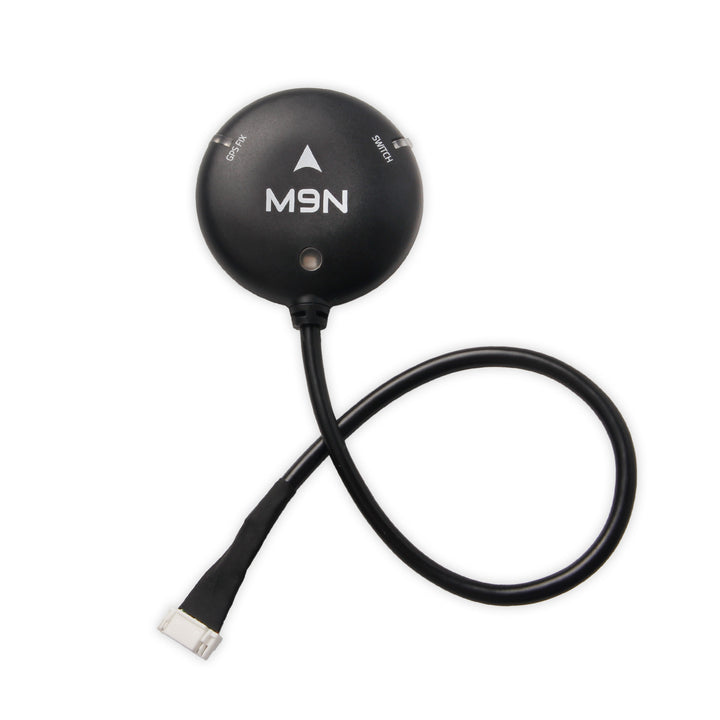

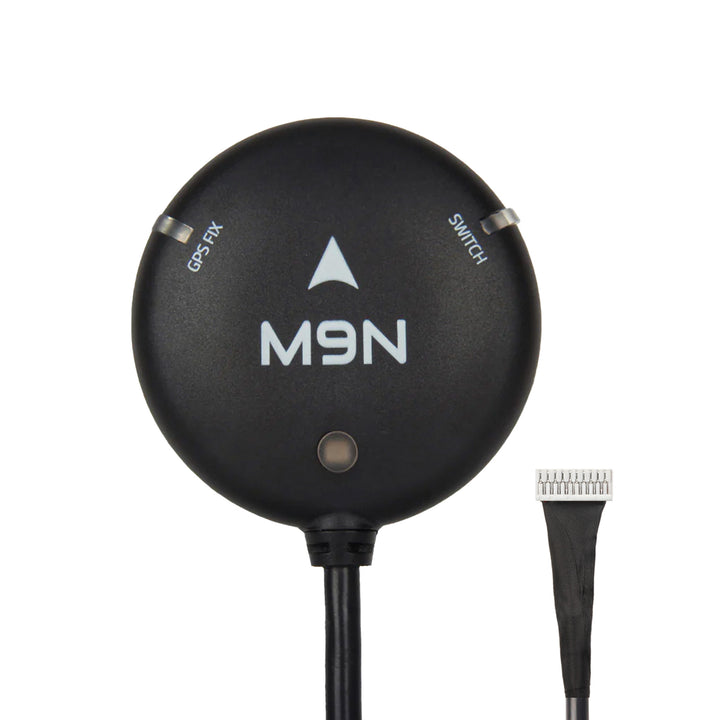

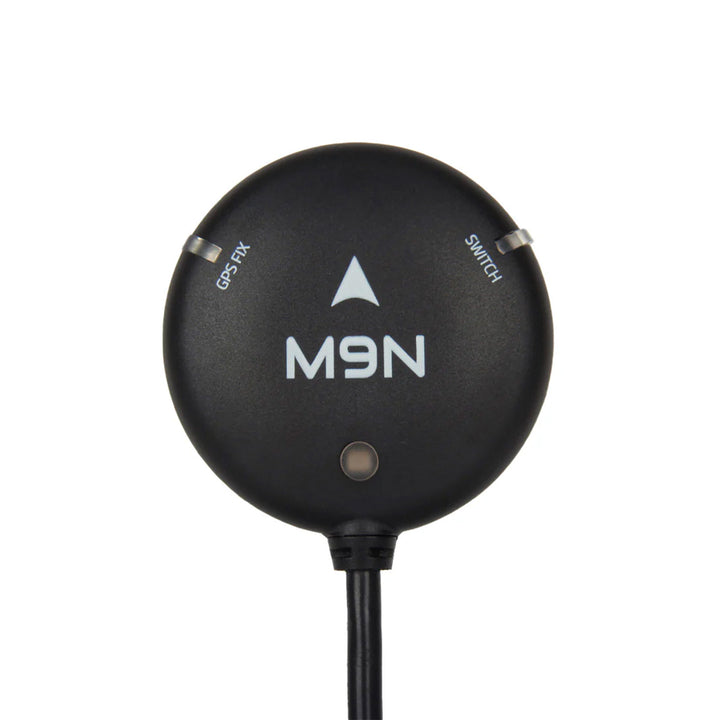

The M9N GPSuses multi-constellation GNSSpowered by u-blox M9N, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou, can be received concurrently.
It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connector options for different purposes. This module ships with a baud rate of115200 (38400 previously).
The high-gain 25 x 25 mm2 patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.
Specifications
GNSS Receiver
Ublox M9N
Number of Concurrent GNSS
Up to 4 GNSS
BeiDou
Galileo
GLONASS
GPS
QZSS
Frequency Band
GPS L1
Galileo E1
GLONASS L1
BeiDou B1
SBAS L1
QZSS L1
Compass
IST8310
Output Protocol
UBX (U-blox)
NMEA
Accuracy
1.5m CEP
Nav. Update Rate
Up to 25 Hz (4 concurrent GNSS)
GNSS Augmentation System
EGNOS, GAGAN, MSAS and WAAS
QZSS: L1S
Default Baud Rate
115200
Input Voltage
4.7-5.2V
Connector Type
JST-GH-10pin
Antenna
25 x 25 x 4 mm ceramic patch antenna
Antenna Gain
1.5dbi
Antenna LNA Gain
22dB
Power consumption
Less than 200mA @ 5V
Operating Temperature
-40~80°C
Version
V1
V2
Dimension
φ50 x14.4 mm
φ51 x18.5 mm
Weight
32g
36.8g
IP Rating
NA
IP67
26cm (42cm cable purchase separately)
Tri-color LED
Onboard Buzzer
Safety Switch
LNA MAX2659ELT+ RF Amplifier
Rechargeable Farah capacitance
Low-noise 3.3V regulator

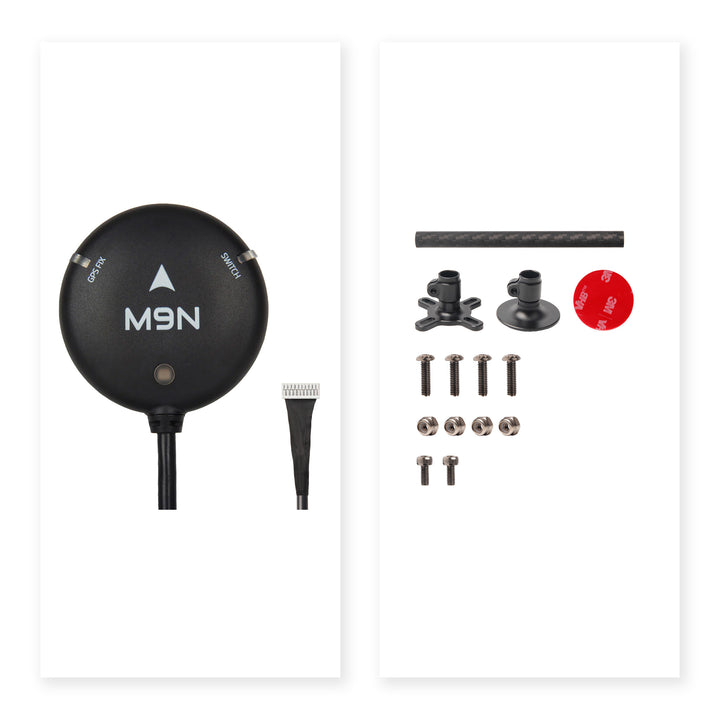

Package Includes:
1x M9N GPS Module

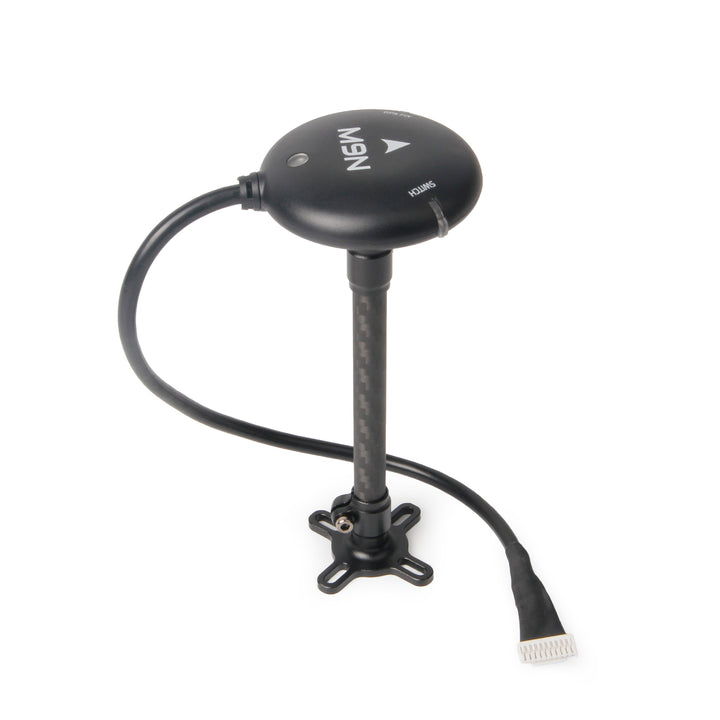

1x Fixed Carbon Fiber GPS mount
