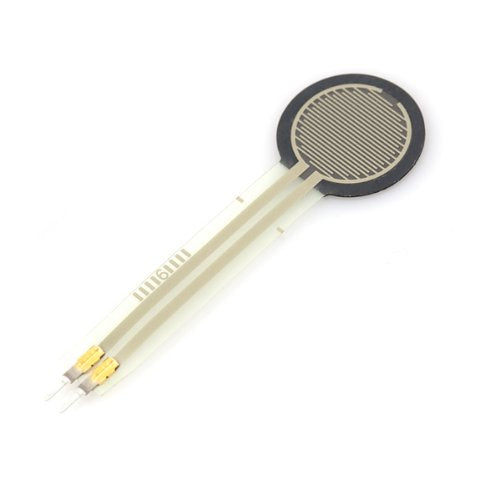

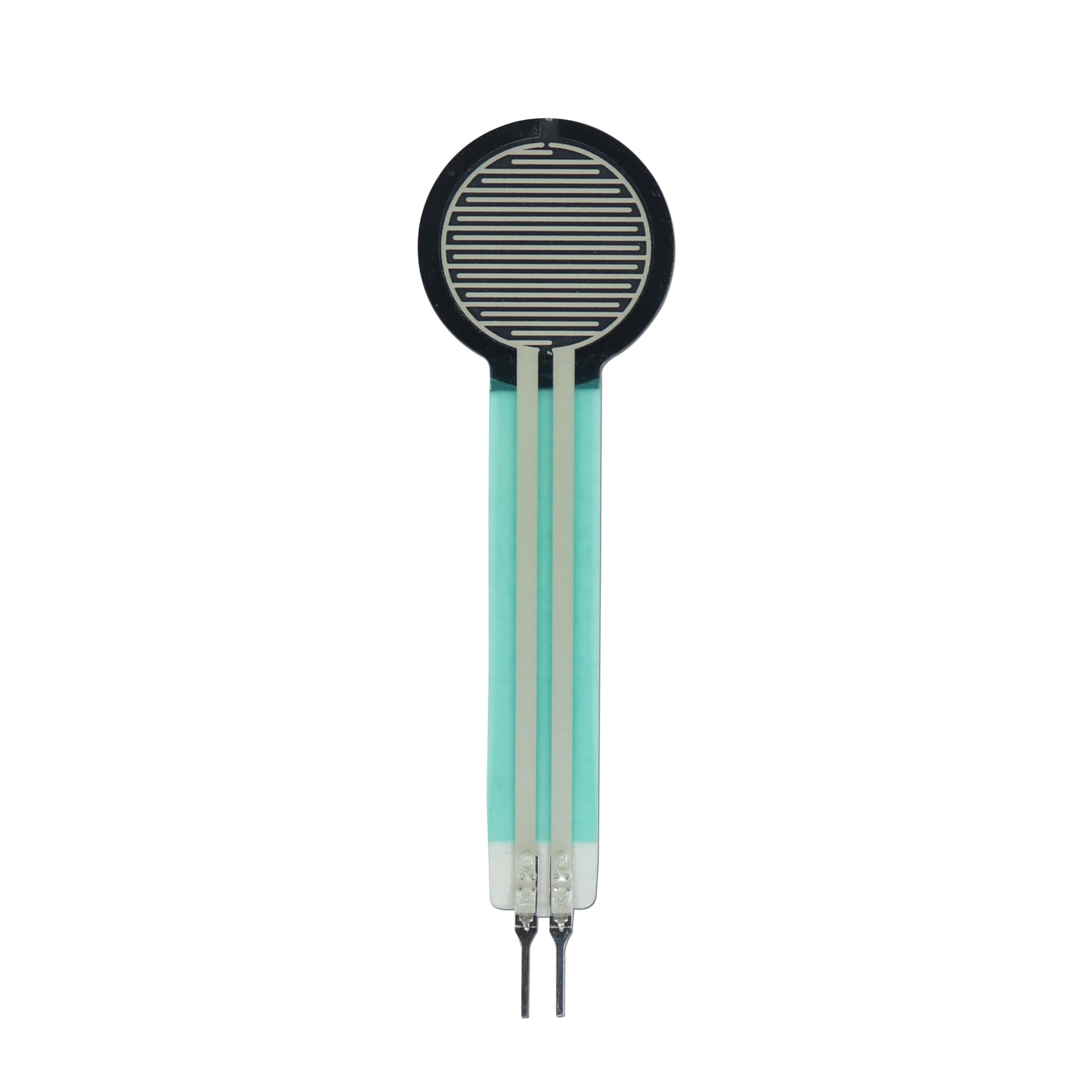

FSR402 Force Sensitive Resistor 0.5 Inch 14.7mm FSR Round Pressure Sensor
FSR402 Force Sensitive Resistor 0.5 Inch 14.7mm FSR Round Pressure Sensor
Regular price
Rs. 299.00
Regular price
Sale price
Rs. 299.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Shape: Circular.
- Sensing Area diameter (inch): 0.5.
- Min Pressure: 100 gm.
- Max Pressure: 10Kg.
- Length (mm): 60.
- Weight (gm): 2.
FSR402 a light weight, small size,ultra-thin resistive pressure sensor.This kind of pressure sensor is to take place in FSR film sensor area pressure into the change of the resistance value, thus for pressure information.The lower the pressure, the greater the resistance.Allow its use in place of pressure 100 g - 10 kg.The terminal holder sensor can be used in the manipulator with or without holding items, robot first step walk the ground sensors, mammals bite test of biological experiments, application scope and widely.
Specifications:
- Sensing area (Sensing range) : 0.5 " circle
- The Output signal : Passive variable to hold
- The Force sensitive range: 100 g to 10 kg
- Dimensions: Overall length: 2.375"
- Overall width: 0.75"
- Sensing the diameter: 0.5"
Package Included: 1 x FSR402 Pressure Sensor Module
