• Bandwidth (KHz): 500.

• RF Range (GHz): 2.40 ~ 2.48.

• No. of channels: 6.

• Remote controller weight (gm): 400.

• Power: 6V (1.5V AA*4).

• Antenna Length: 26mm * 2 (dual antenna).

• Transmitting Power: ≤ 20dBm.

• RF Receiver Sensitivity: -105dbm.



Flysky FS-i6 Specifications and Features :

Features:

• Entry-level 6 channel 2.4GHz radio with telemetry capability.
• Dual Rate/Trims/Gear/Flap/Gyro Gain Adjust/Flight Mode/Throttle Hold/Hover Pitch Switches.
• Easy to use Programming & Navigation Buttons.
• Supports Heli/Standard Wing/Elevon/V-Tail.
• 20 Model Memory.
• 8 Character Model Name.
• Trainer and charging ports.
• The backlight LCD screen displays real-time transmitter and receiver voltage.
• 4 Stick Mode Selectable.
• Mode 2.
• It comes with a receiver.

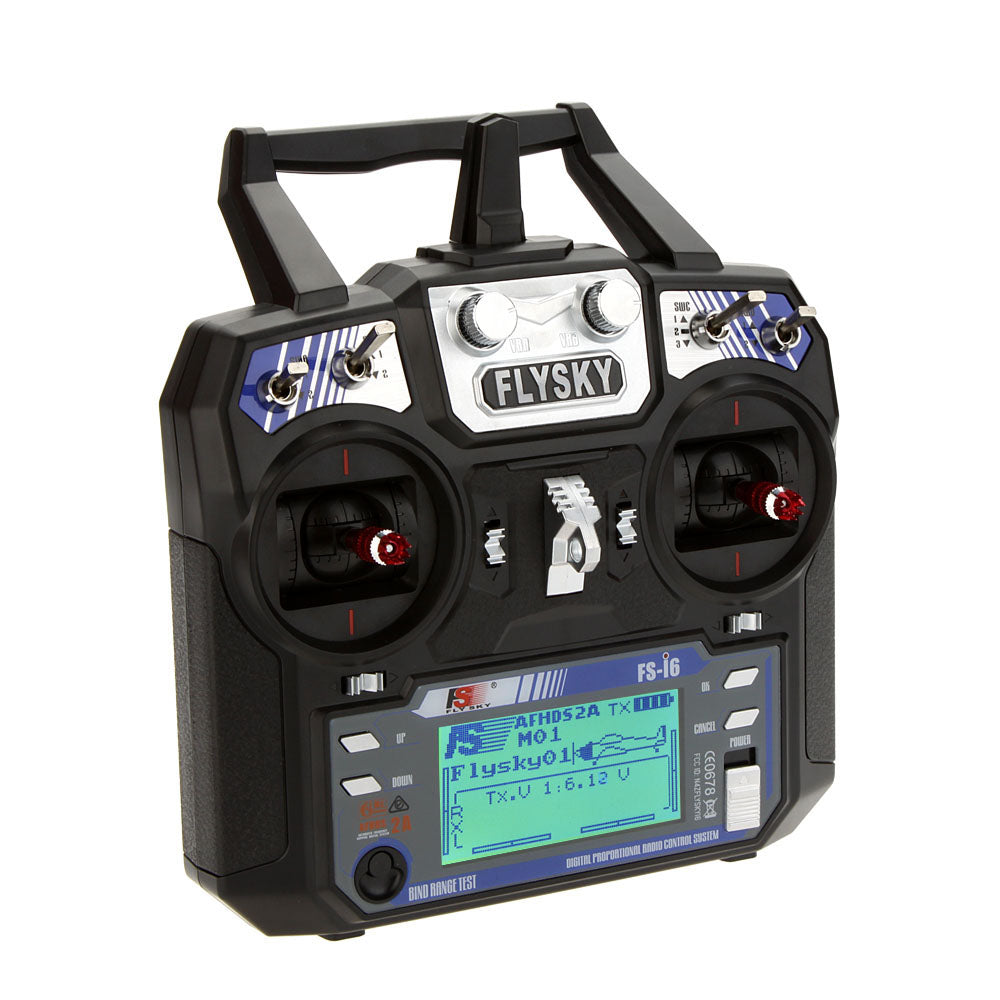

Flysky fs-i6 Transmitter Specifications :

• Model Type: Glider/Heli/Airplane

• Band: 142

• 2.4ghz System: AFHDS 2A and AFHDS

• Code Type: GFSK

• DSC Port: PS2;

• Output: PPM

• Charger Port: No

• ANT length: 26mm*2(dual antenna)

• Online update: Yes

• Certificate: CE0678,FCC

• Model Memories: 20

• Channel Order: Aileron-CH1, Elevator-CH2, Throttle-CH3, Rudder-CH4, Ch 5 & 6 open to assignment to other functions.

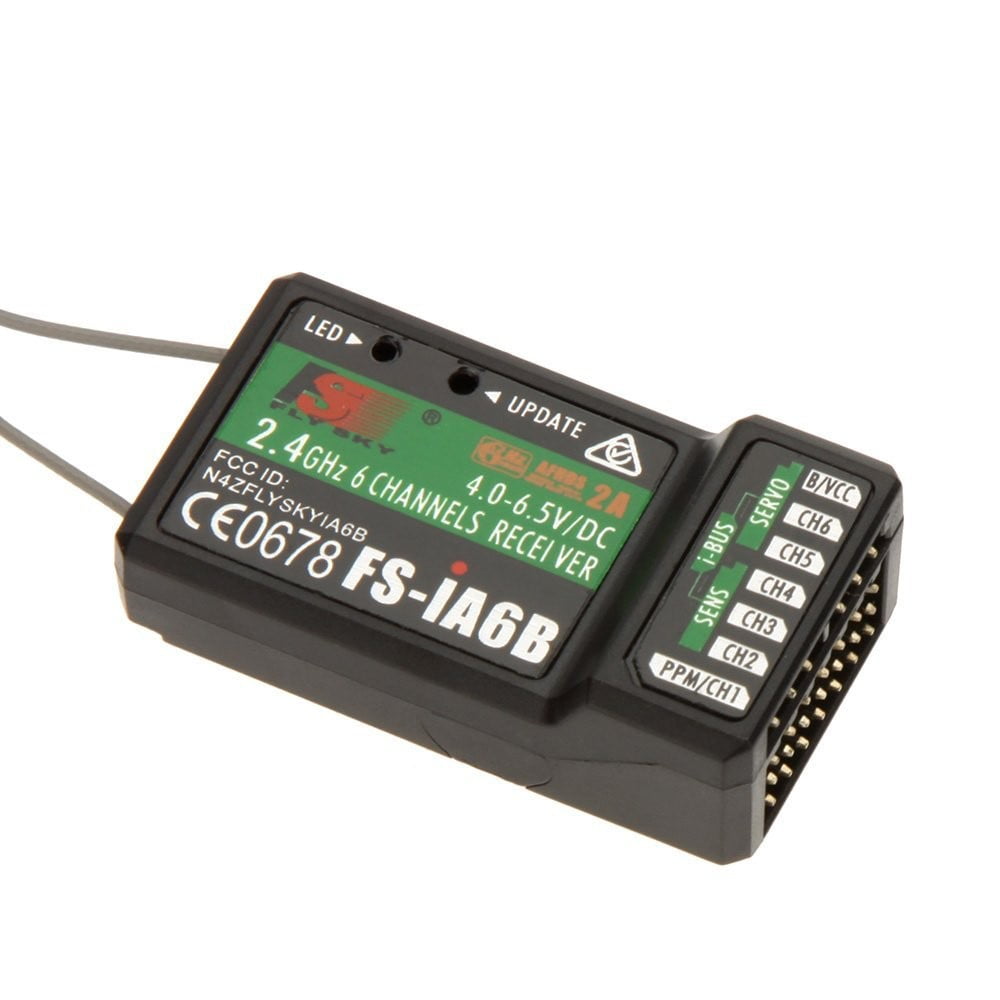

FS-iA6B Receiver Specifications :

• Channel: 6.

• Frequency Range: 2.4055–2.475 GHz.

• Band Width Number: 140

• Transmitting Power: ≤ 20 dBm.

• RF Receiver Sensitivity: 105 dBm.

• 2.4G Mode: The second generation of an enhanced version of the automatic FM digital system.

• Encoding: GFSK.

• Antenna Length : 2 x 26 mm (dual antenna).

• Input Power : 4.0 – 8.4 VDC (2A).

• Dimension : 47 x 26.2 x 15 mm

• Weight: 14.9 gm.

• Data Acquisition Interface: Yes.

• Model Type : Airplane / Glider / Helicopter.

• Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G.

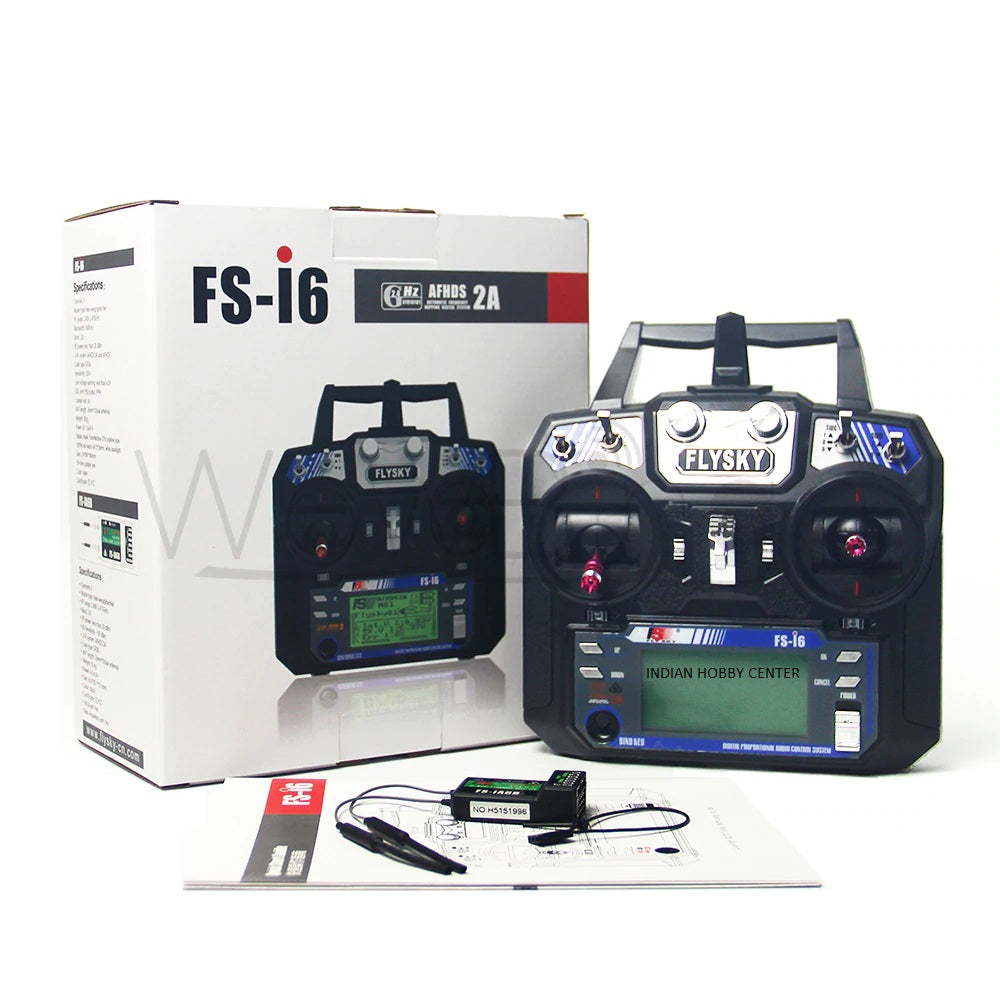

Package Includes :

1 x FlySky FS-i6 2.4G 6CH PPM RC Transmitter.

1 x FS-iA6B receiver.

1x User Manual BookLet.

(Battery Not Included)
