[Chip solution]：LoRa Solution

[Frequency]：410~441MHz

[Transmitter power]：21~30dBm

[Communication diatance]：8.0km

[Communication Interface]：UART

[Product weight]：5.0±0.1g

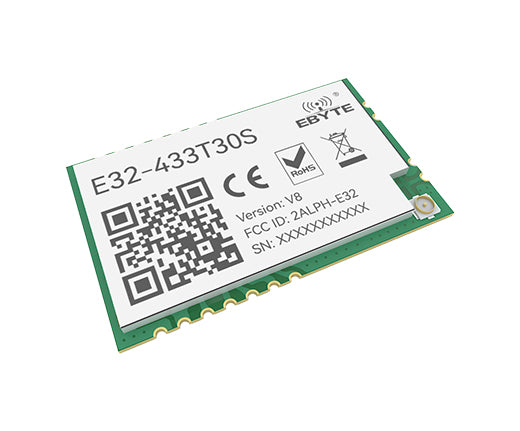

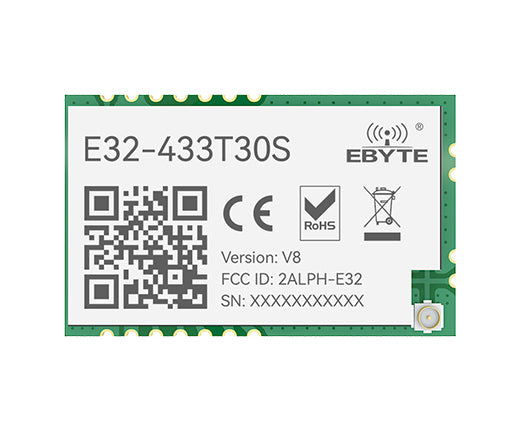

[Introduction]：E32-433T30S is an SMD wireless module (UART) based on SEMTECH's original imported RF chip. It has an operating frequency of 410-441MHz and has LoRa technology, data encryption and compression functions.

Features:

1. LoRa Technology for extended-range communication.
2. Operating frequency of 433MHz for good propagation.
3. UART interface for easy integration with microcontrollers.
4. Equipped with Semtech SX1278 LoRa chip for low power and reliability.
5. Functions as both a wireless transmitter and receiver.

Specifications:

• Model No.: E32-433T30S
• Model Name: E32-433T30S
• Distance(mm): 8000
• Frequency (MHz):  433
• Interface:    UART
• Port Number:   1
• Power(dbm): 30
• RF connector: SMD
• Item Type: Wireless Module

Datasheet
