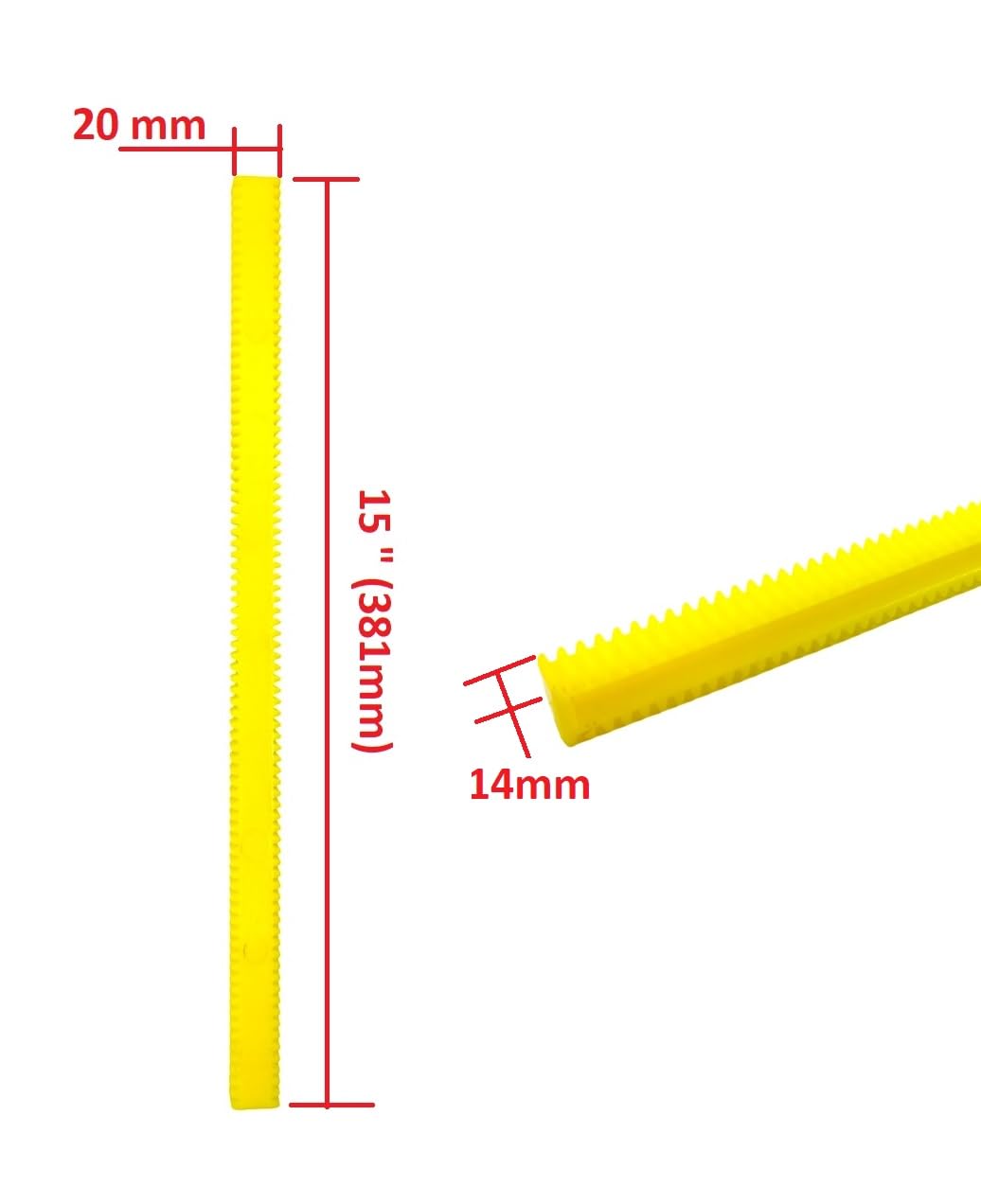

• Length: 15 inch (380mm)
• Teeth: 82 (Each Side)
• Height (Thickness)  : 14mm
• Width  : 20mm
• Color:  Yellow.
• Material: Plastic

Compatible Gear & Rack:

Spur Gear:  15 Teeth , 25 Teeth, 38 Teeth, 56 Teeth

Worm Gear: 4 Teeth

Bevel Gear : 16 Teeth, 24 Teeth, 32 Teeth

Rack:  50 Teeth Rack, 82 Teeth Rack

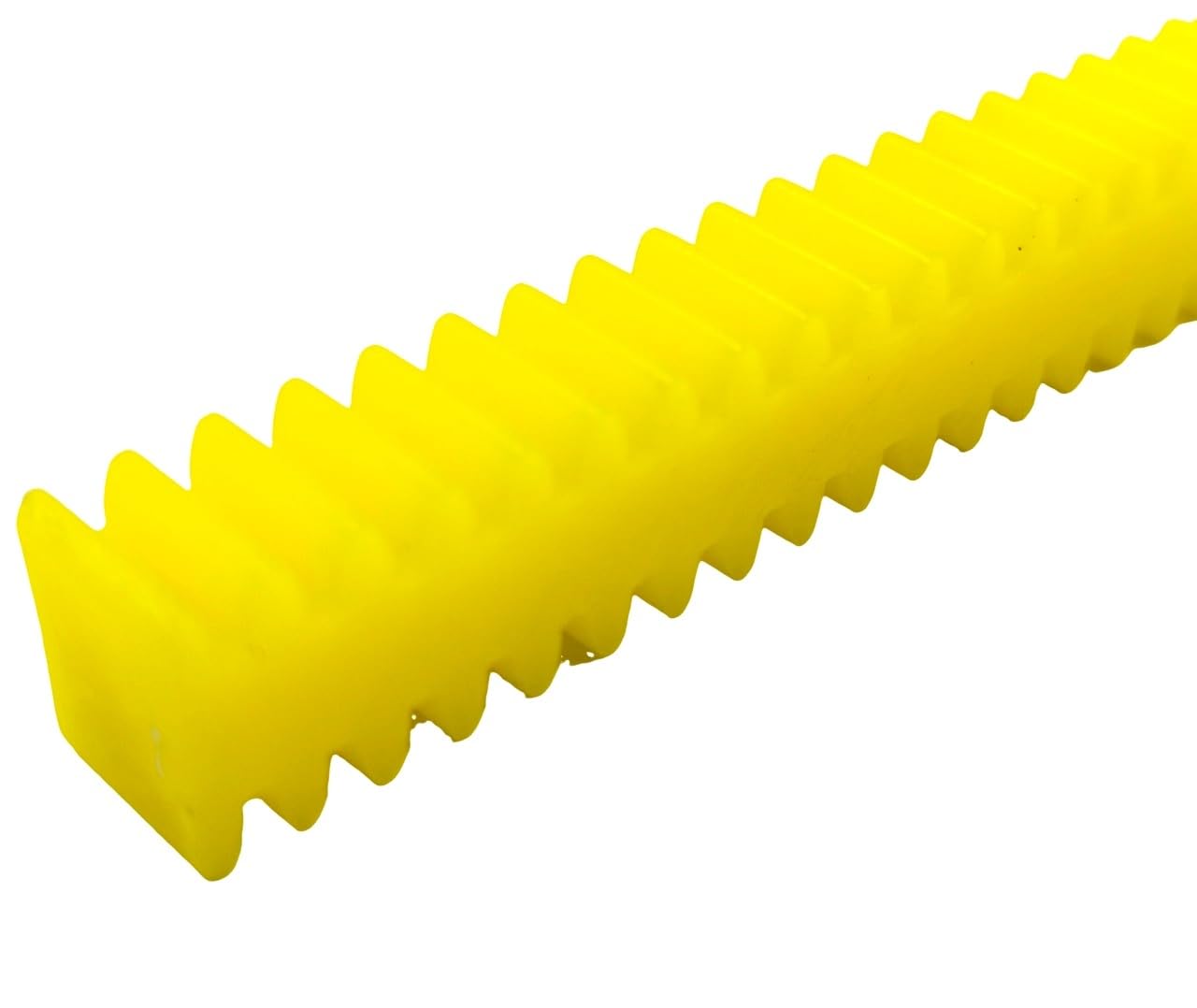

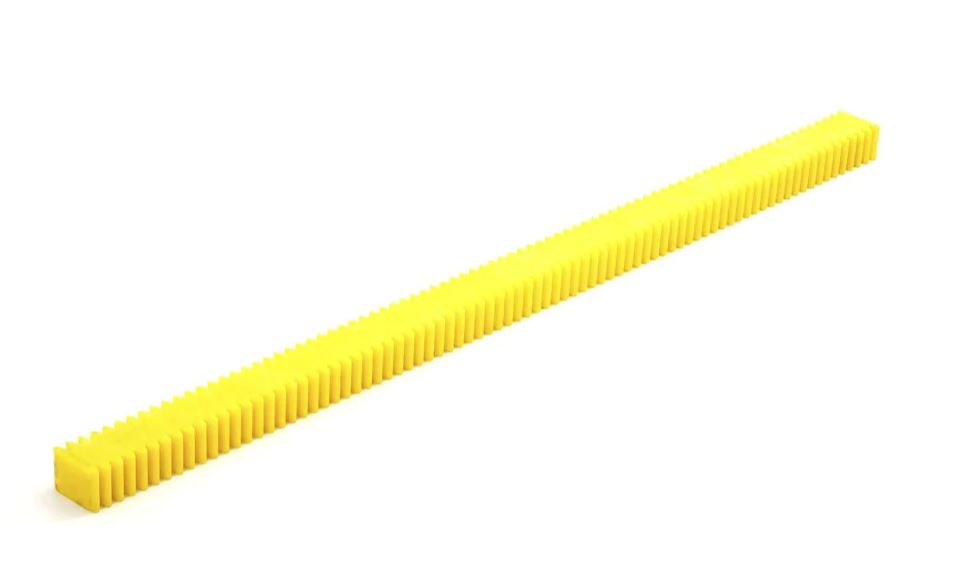

This is a 82 Teeth Plastic Double Sided Gear Rack. Gear racks are utilized to convert rotating movement into linear motion. A gear rack has straight teeth cut into one surface of a square or round section of rod and operates with a pinion, which is a small cylindrical gear meshing with the gear rack. Generally, gear rack and pinion are collectively called “rack and pinion”. There are many ways to use gears.

There are applications where the gear rack is stationary, while the pinion traverses and others where the pinion rotates on a fixed axis while the gear rack moves. The former is used widely in conveying systems while the latter can be used in extrusion systems and lifting/lowering applications.

Rack and pinions are used for lifting mechanisms (vertical movement), horizontal movement, positioning mechanisms, stoppers and to permit the synchronous rotation of several shafts in general industrial machinery. On the other hand, they are also used in steering systems to change the direction of cars. The characteristics of rack and pinion systems in steering are as follows: simple structure, high rigidity, small and lightweight, and excellent responsiveness. With this mechanism, the pinion, mounted to the steering shaft, is meshed with a steering rack to transmit rotary motion laterally (converting it to linear motion) so that you can control the wheel. In addition, rack and pinions are used for various other purposes, such as toys and lateral slide gates.
