Features:-

• 4 OR gates in a 14-Pin DIP Package

• Outputs Directly Interface to CMOS, NMOS and TTL

• Large Operating Voltage Range

• Wide Operating Conditions
• CMOS low power consumption
• Schmitt Trigger Action at All Inputs



Specifications:-

• Type: DIP Bipolar

• Voltage Rating: 2.0 to 6.0V
• Temperature Rating: 0 to 70Deg C

• Number of: 14 Pins

• Mounting: Through Hole

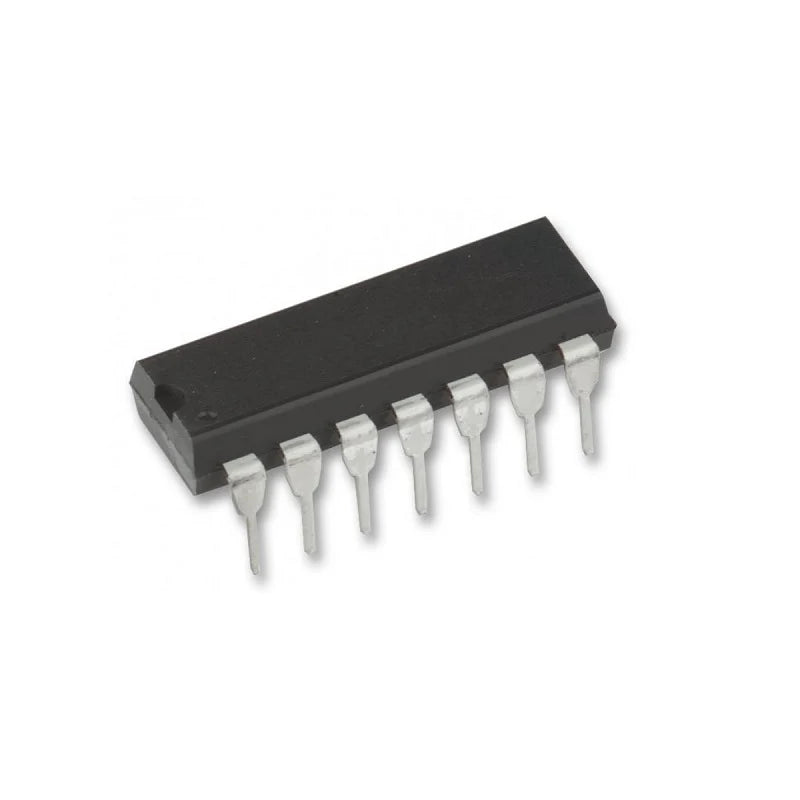

TThe 7432 is a 14 Pin Quad 2-Input OR Gate IC. The 7432 provides four independent 2-input OR gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V.  Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
