1. Model: ILI9488 3.5 Inch TFT LCD
2. Resolution: 480×320, 65K colors
3. Interface: 4-wire SPI
4. Temp Range: -20℃ to 60℃
5. Power: 3.3V to 5V
6. Size: 48.96 x 73.44 mm active area

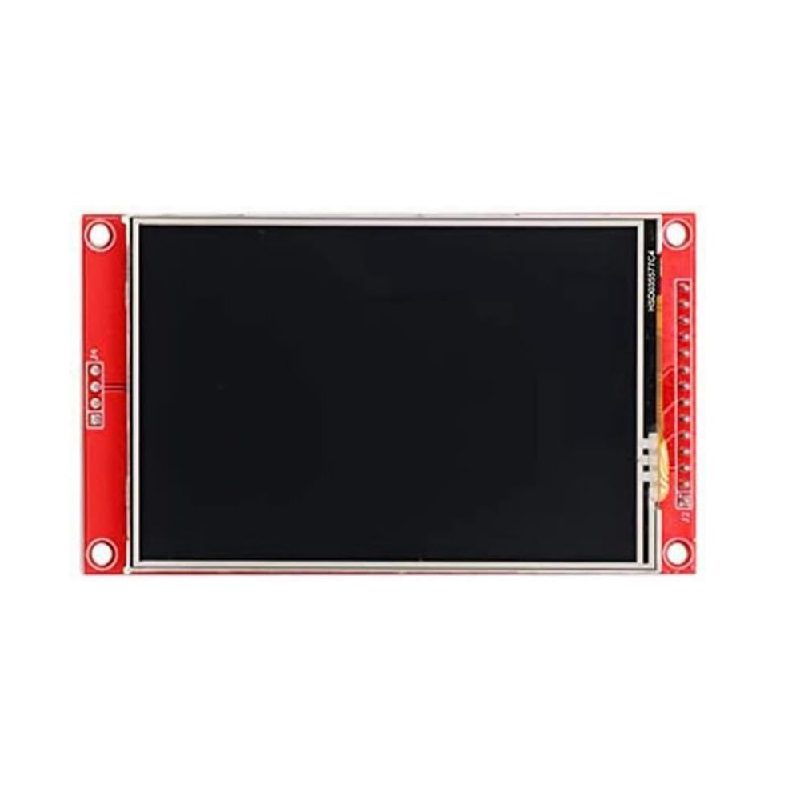

The 3.5 Inch SPI TFT LCD Touch Module with the ILI9488 driver is a high-quality display designed for use in a variety of embedded systems and DIY projects. With a 480×320 resolution and support for 65K colors, this module provides vibrant, high-definition visuals, making it perfect for graphical user interfaces, displays, and touch-based applications.

Feature:

1. Driver IC: ILI9488, 16.7M colors, single-chip SoC for TFT touch displays.
2. Display Size: 3.5 inches with 480×320 resolution for clear visuals.
3. Color Support: 65K colors for vibrant and rich displays.
4. Interface: 4-wire SPI for easy integration with minimal IO.

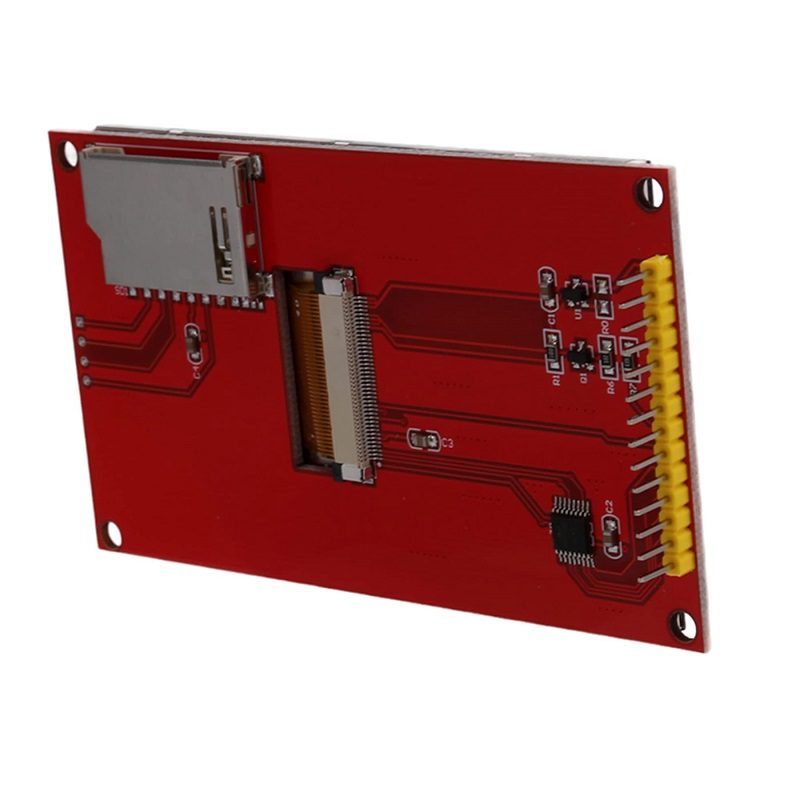

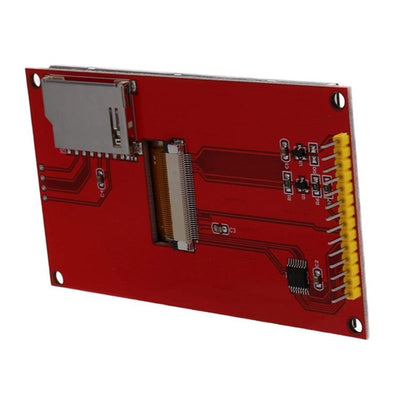

5. SD Card Slot: Allows easy expansion for storage.
6. Temperature Range: Operates between -20℃ to 60℃, suitable for various environments.
7. Power Supply: VCC 3.3V to 5V, logic IO at 3.3V TTL.

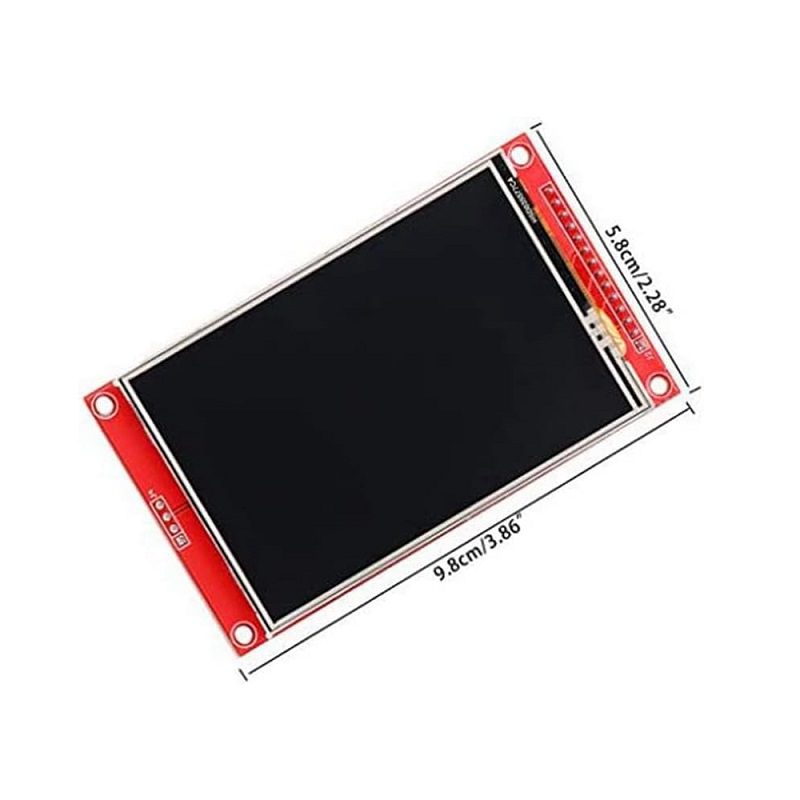

8. Compact Size: Active area of 48.96 x 73.44 mm, module size of 56.34 x 98 mm.

Package Includes:

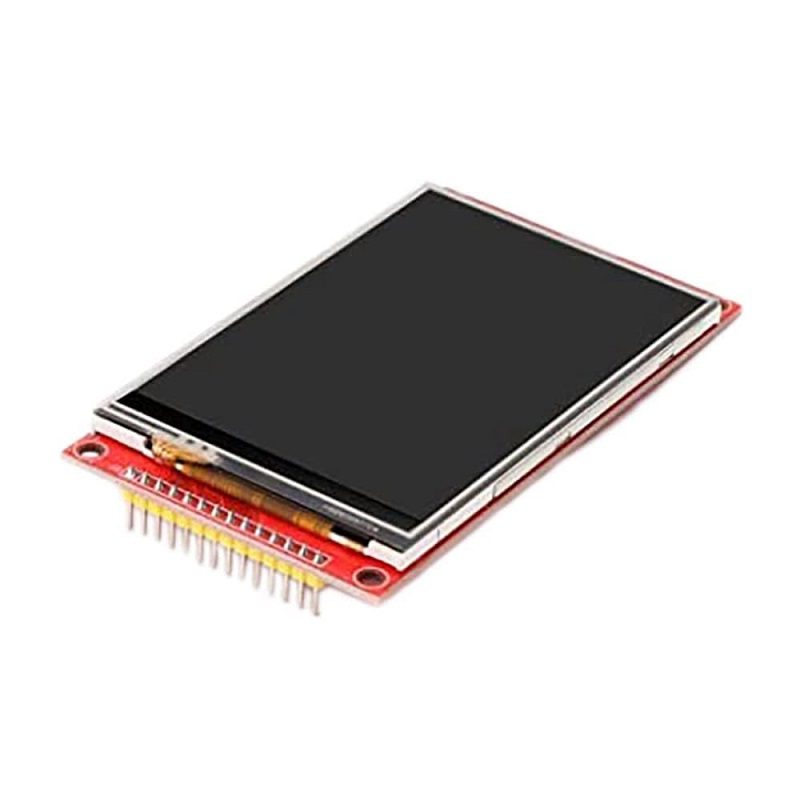

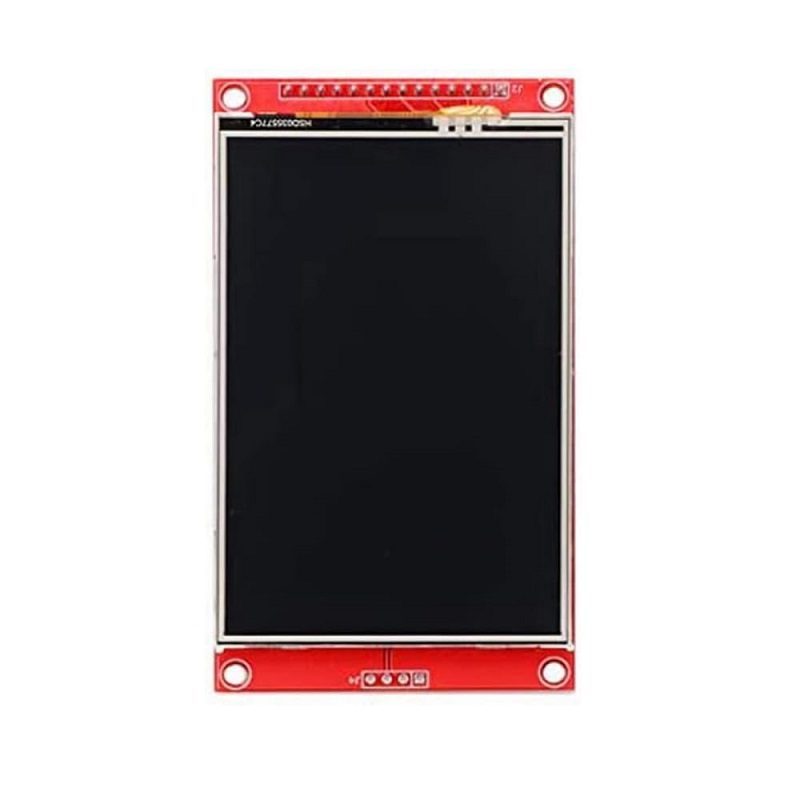

1 x 3.5 Inch SPI 50pin TFT LCD Touch Module ILI9488 Driver 480X320 Color Display

1 x Stylus white color
