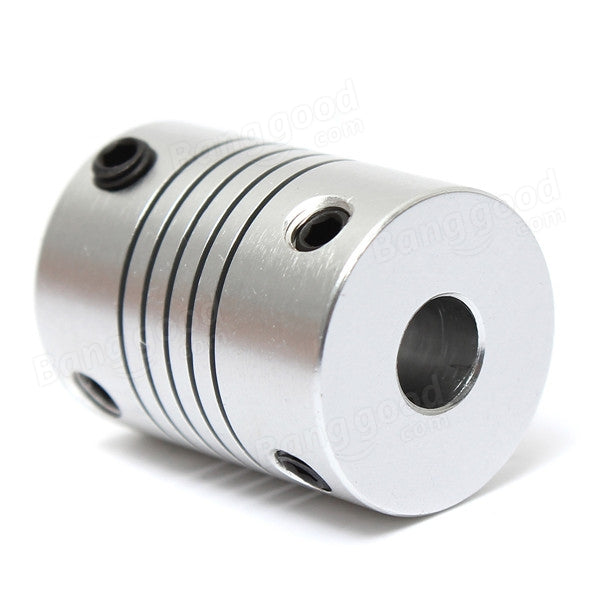

Flexible Shaft Coupling 5mm to 10mm, Aluminium
Regular price
Rs. 109.00
Regular price
Sale price
Rs. 109.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Dispatched in 24 hrsExcept Sundays and public holidays
- GST invoiceInput tax credit for businesses
- ReplacementFor transit damage or wrong item
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
A machined aluminium flexible coupling that joins a 5mm shaft, such as a NEMA 17 stepper motor shaft, to a 10mm shaft or rod. The spiral cut lets it flex slightly when the two shafts are not perfectly in line, which reduces binding, while staying stiff in rotation so it adds no backlash.
Specifications
| Bore | 5mm to 10mm |
|---|---|
| Material | Machined aluminium, spiral cut |
| Fixing | Set screws on each end |
| Weight | 15g |
Works with: NEMA 17 Stepper Motor Clamp. For other shaft sizes see the 5mm to 8mm coupling and the full range in Shaft Couplings & Hubs.
In the box: 1 flexible shaft coupling with set screws.
Tip: tighten the set screws onto the flat side of a D-shaft where there is one, and leave a small gap between the two shaft ends inside the coupling.
