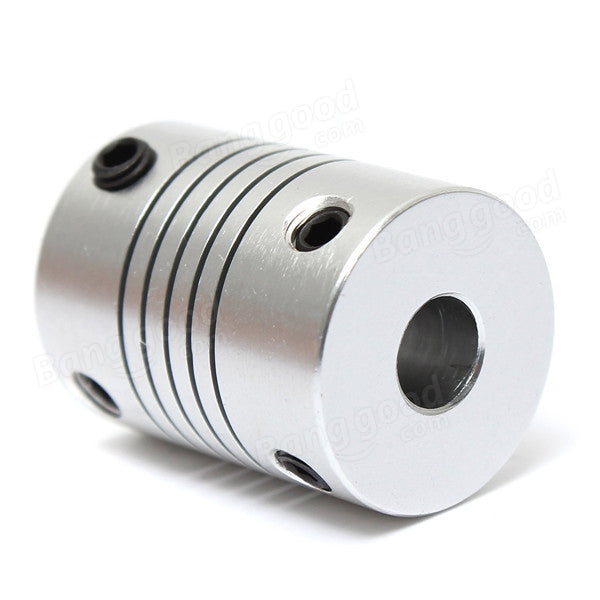

Flexible Shaft Coupling 5mm to 8mm, Aluminium
Couldn't load pickup availability
- Dispatched in 24 hrsExcept Sundays and public holidays
- GST invoiceInput tax credit for businesses
- ReplacementFor transit damage or wrong item
A shaft coupling joins a motor shaft to a lead screw, axle, wheel or another shaft.
Specifications
| Bore Diameter | D1 = 5mm, D2 = 8mm |
|---|---|
| Weight | 15 g |
- Exhibits good strength.
- High-grade aluminum couplings.
These couplers are made of machined aluminum and have a spiral cut that makes them slightly flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects.The way they're cut, they're a little springy in the X Y & Z linear axis but not in the rotational axis. That means that you won't get increased backlash - so they're suitable for precision CNC work. This coupler will connect a 5mm diameter shaft to an 8mm diameter shaft.
Works with: motors in Stepper Motors and DC Gear Motors, and Lead Screws, Rods & Linear Bearings.
Tip: tighten the set screws onto the flat side of a D-shaft where there is one, and line up the two shafts as closely as you can.
