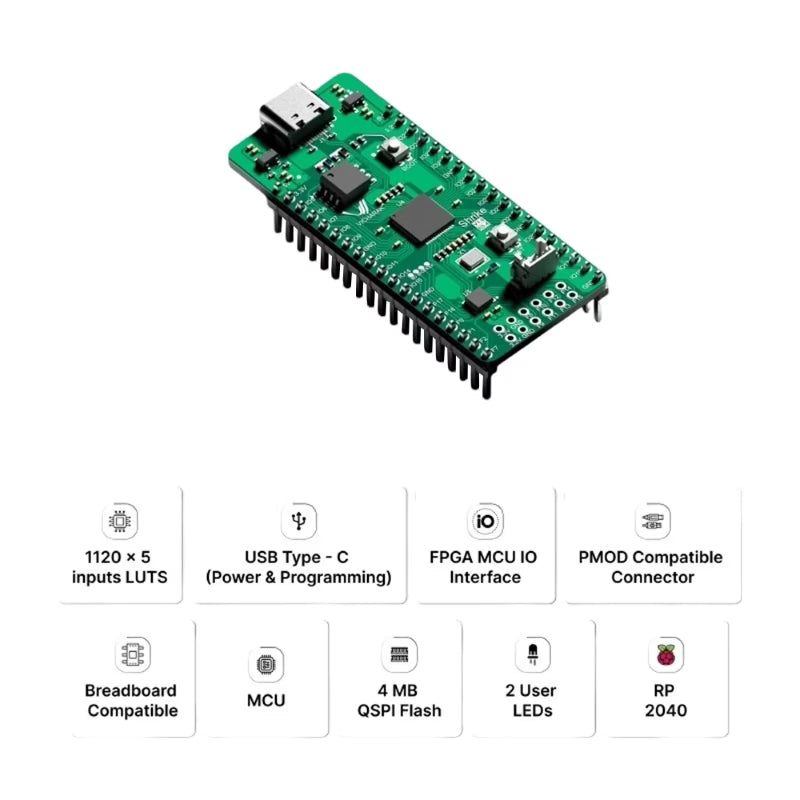

Features:

• Combines RP2040 MCU and 1120-LUT FPGA on one board
• Integrated FPGA–MCU IO interface for co-processing
• Open-source hardware and software ecosystem
• PMOD-compatible connector for easy expansion
• Breadboard-friendly pin layout for prototyping
• On-board QSPI Flash memory
• Dual user-programmable LEDs
• USB Type-C for power and programming

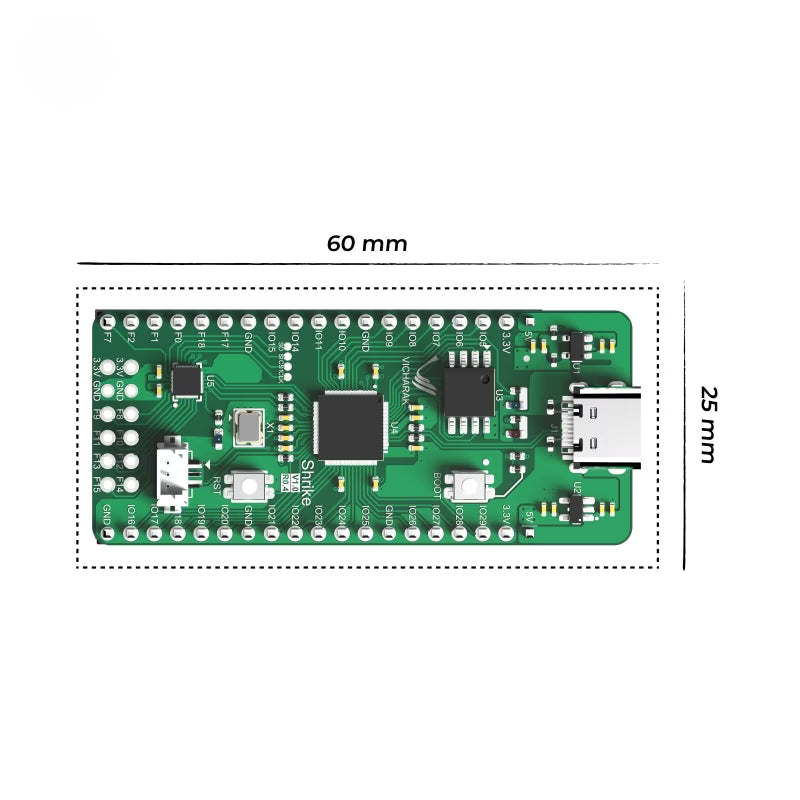

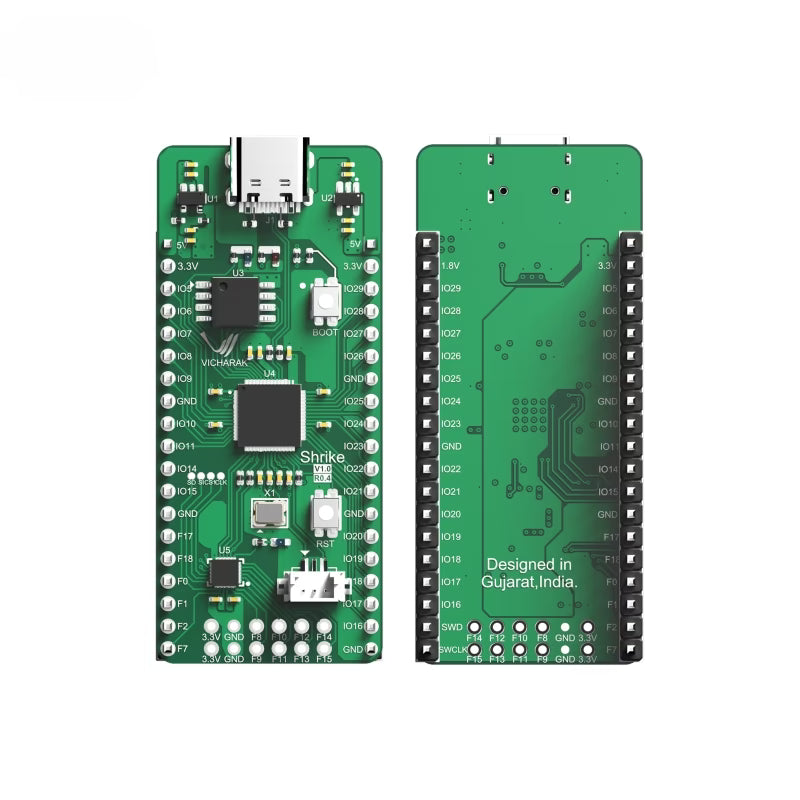

Vicharak Shrike-lite is a cost-effective, open-source microcontroller + FPGA development board designed for learners, makers, and embedded system designers. It uniquely combines an RP2040 ARM Cortex-M0 MCU with a 1120 LUT FPGA, enabling both firmware development and hardware logic design on a single compact board.

With a breadboard-compatible layout, PMOD expansion, and integrated FPGA-MCU interface, Shrike-lite makes co-processing and rapid prototyping simple. Fully open-source hardware and software support allow users to explore Verilog/VHDL alongside Embedded C or MicroPython. Powered and programmed via USB Type-C, Shrike-lite is an excellent entry point into reconfigurable computing and hybrid embedded design.

• Model: Shrike-lite
• Processor Type: ARM Cortex-M0 + FPGA
• Microcontroller: RP2040
• Storage: On-board QSPI Flash
• FPGA Logic: 1120 × 5-input LUTs
• CPU: ARM Cortex-M0
