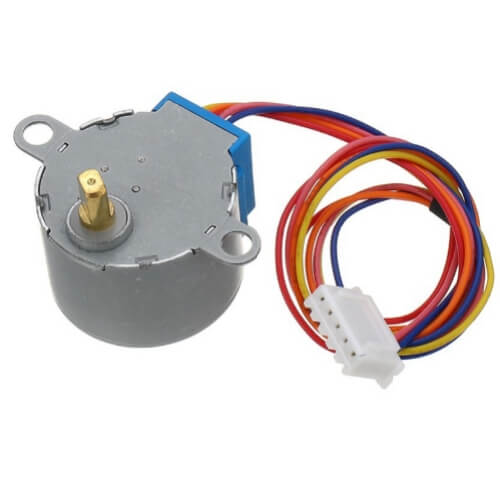

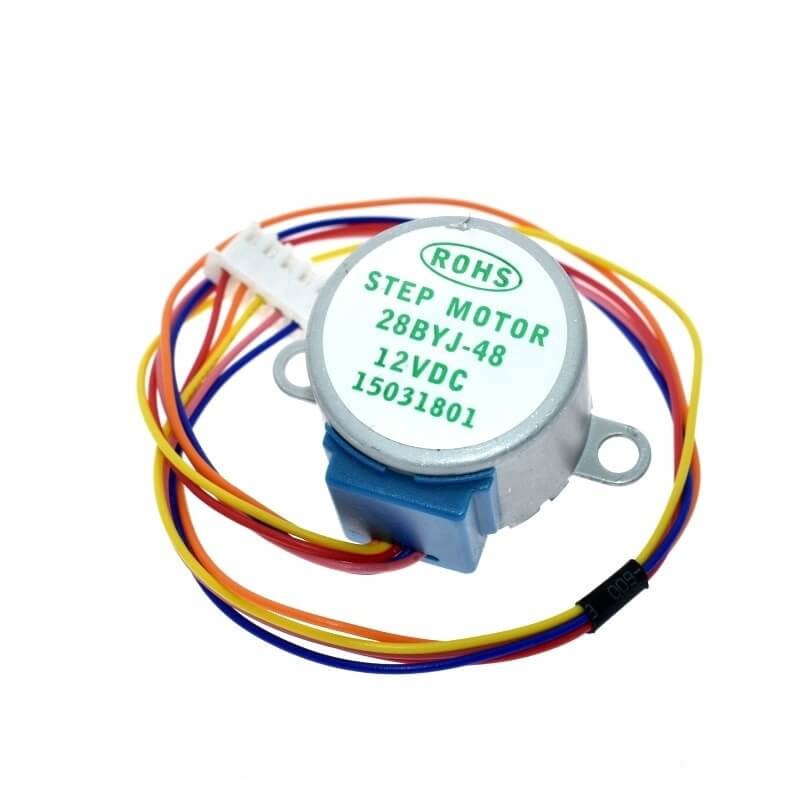

28BYJ-48 -12V DC Stepper Motor
This 12V DC 28BYJ-48 Stepper Motor is a small, inexpensive, and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system. Thia 28BYJ-28 stepper motor is imported from one of our trusted suppliers and the supplier has guaranteed the quality of these compact stepper motors.
Note: The system is recommended to run on Half-step mode(8 step control signal sequence) for an excellent performance experience.
A (Blue), B (Pink), C (Yellow), D (Orange), E (Red, Mid-Point)
- Model: 28BYJ-48
- Rated Voltage: 12V
- Rated Current: 300mA
- Step Angle: 5.625°/64
- Reduction ratio: 64:1
- Resistance: 50Ω
- In-Traction Frequency: >600Hz
- Out-Traction Frequency: >1000Hz
- In-traction Torque: 34.3mN-m
- Self-positioning Torque: 34.3mN-m
- Friction Torque: 600-1200gf-cm
- Pull-in Torque: 300gf-cm
- Insulation Grade: A
- Shaft Type: Double D-Type
- Motor Weight: 45gm
Package Includes :
- 1 x 28BYJ-48 -12V DC Stepper Motor
